Technical specifications
|
| Model: |

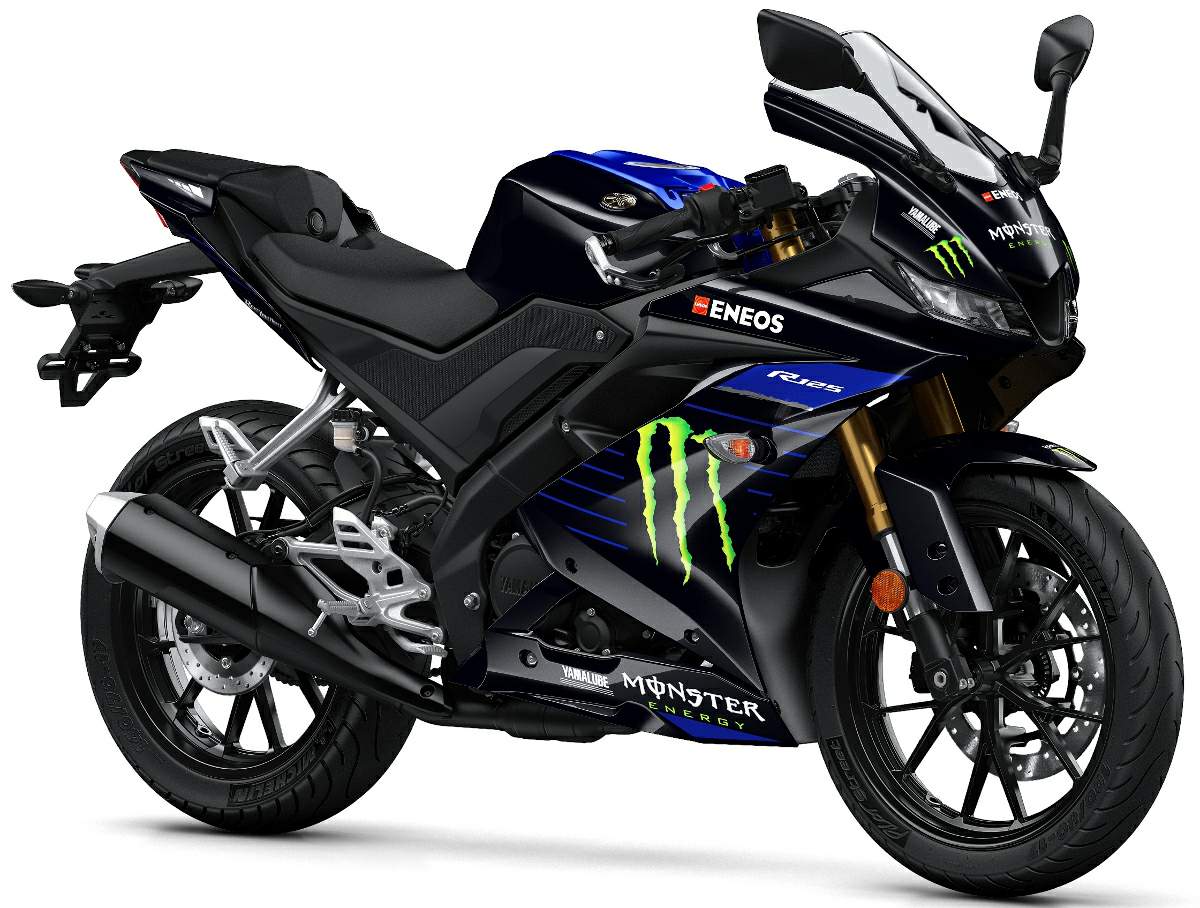

YZF-R125 Monster Energy MotoGP Edition |
| Years: |
2019 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valve
|
|
Capacity:
|
124.7 cc / 7.6 cu-in
|
|
Bore x Stroke:
|
52 x 58.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.2:1
|
|
Emission CO2:
|
49 g/km
|
|
Induction:
|
Electronic fuel Injection
|
|
Oil Capacity:
|
1.15 liters
|
|
Lubrication:
|
Wet sump
|
|
Ignition:
|
TCI
|
|
Starting:
|
Electric
|
|
Max Power:
|
11 kW / 14.7 hp @ 9000 rpm
|
|
Max Torque:
|
12.4 Nm / 9 lb-ft @ 8000 rpm
|
|
Clutch:
|
Wet, multiple-disc coil spring
|
|
Transmission:
|
6 Speed, Constant mesh
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Steel Deltabox
|
|
Front Suspension:
|
Upside-down telescopic fork, Ø 41 mm
|
|
Front Wheel Travel:
|
130 mm / 5.1 in
|
|
Rear Suspension:
|
Swingarm, link type suspension
|
|
Rear Wheel Travel:
|
114 mm / 4.5 in
|
|
Front Brakes:
|
Single 292mm disc
|
|
Rear Brakes:
|
Single 230mm disc
|
|
Front Tyre:
|
100/80 -17 M/C
|
|
Rear Tyre:
|
130/70 -17 M/C
|
|
Caster:
|
25°
|
|
Trail:
|
89 mm
|
|
Dimension:
|
Length 1955 mm / 76.9 in Width 680 mm / 26.7 in Height 825 mm / 32.4in
|
|
Wheelbase:
|
1355 mm / 53.3 inc
|
|
Seat Height:
|
825 mm / 32.4 in
|
|
Ground Clearance:
|
155 mm / 6.1 in
|
|
Wet Weight:
|
142 kg / 313 lbs
|
|
Fuel Capacity:
|
11.5 Litres / 3.0 US gal
|
