Technical specifications
|
| Model: |

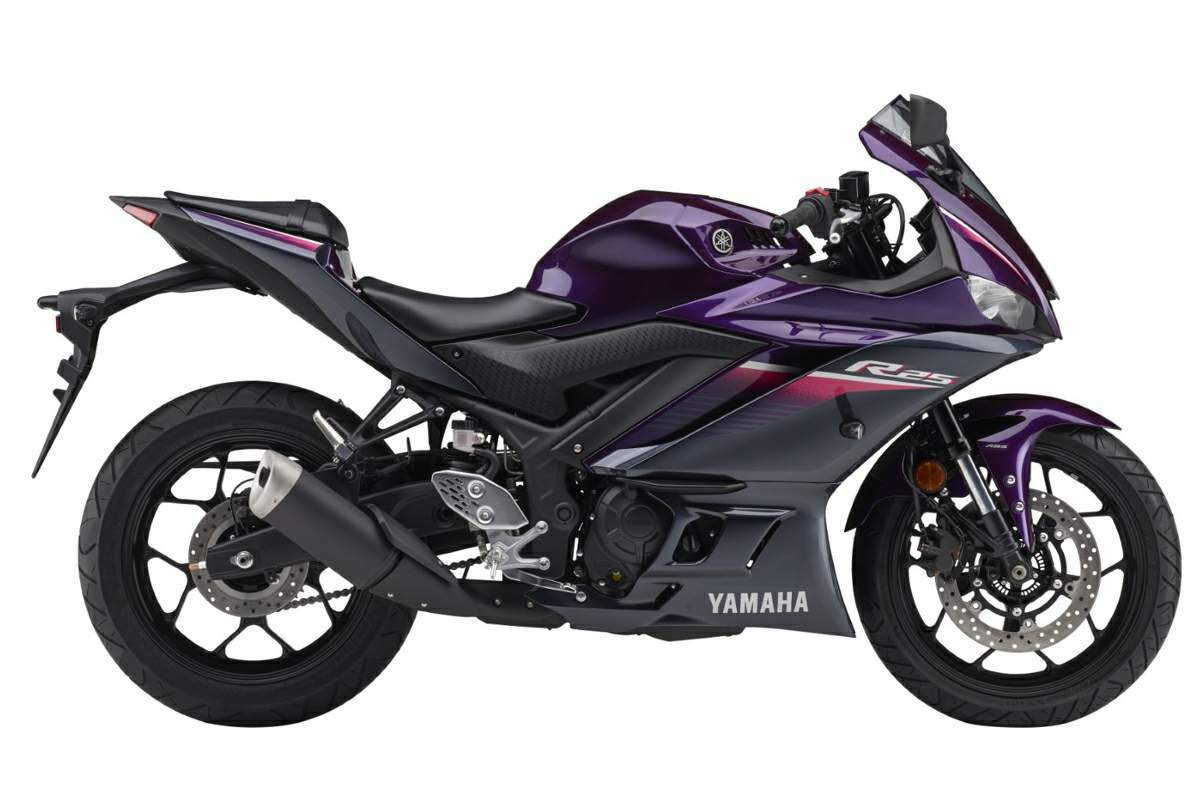

YZF-R 25 |
| Years: |
2023 |
|
Engine:
|
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
249 cc / 15.1 cu-in
|
|
Bore x Stroke:
|
60 x 44.1 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.6:1
|
|
Induction:
|
Electronic Fuel Injection
|
|
Lubrication:
|
Wet sump
|
|
Ignition:
|
TCI: Transistor Controlled Ignition
|
|
Spark Plug:
|
CR9E
|
|
Battery:
|
GTZ8V (MF Battery 7.4 Ah)
|
|
Starting:
|
Electric
|
|
Max Power:
|
26.5 kW / 35.5 hp @ 12000 rpm
|
|
Max Torque:
|
26.6 Nm / 19.6 lb-ft @ 10000 rpm
|
|
Clutch:
|
Wet, multiple-disc coil spring
|
|
Transmission:
|
Constant Mesh, 6-speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Diamond
|
|
Front Suspension:
|
41mm KYB telescopic fork
|
|
Front Wheel Travel:
|
130 mm / 5.1 in
|
|
Rear Suspension:
|
KYB monocross
|
|
Rear Wheel Travel:
|
124.4 mm / 4.9 in
|
|
Front Brakes:
|
Single 298mm disc 2 piston caliper
|
|
Rear Brakes:
|
Single 220mm disc
|
|
ABS:
|
Standard
|
|
Front Tyre:
|
110/70-17M/C 54S
|
|
Rear Tyre:
|
140/70-17M/C 66S
|
|
Caster:
|
25°
|
|
Trail:
|
93.9 mm / 3.7 in
|
|
Dimension:
|
Length 2090.4 mm / 82.3 in Width 720 mm / 28.3 in Height 1135.3 mm / 44.7 in
|
|
Wheelbase:
|
1379.2 mm / 54.3 in
|
|
Seat Height:
|
780 mm / 30.7 in
|
|
Ground Clearance:
|
160 mm / 6.2 in
|
|
Wet Weight:
|
166 kg / 365 lbs
|
|
Fuel Capacity:
|
14.3 Litres / 3.7 US gal
|
