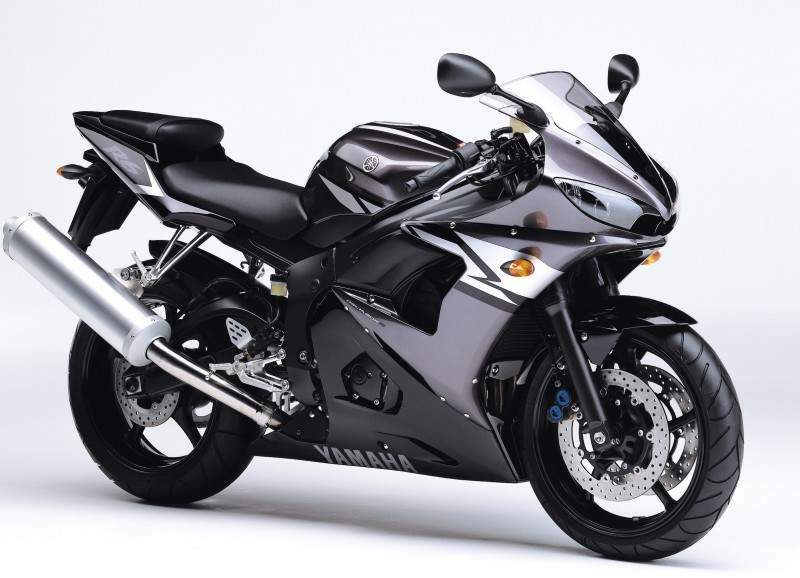

Technical specifications
|
| Model: |
YZF-600 R6 |
| Years: |
2004 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
599 cc / 36.5 cu-in
|
|
Bore x Stroke:
|
67 x 42.5 mm
|
|
Compression Ratio:
|
12.4;1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Engine Oil:
|
Synthetic, 10W/40
|
|
Induction:
|
Fuel Injection 38mm throttle bodies
|
|
Ignition:
|
TCI
|
|
Spark Plug:
|
NGK, CR10EK
|
|
Starting:
|
Electric
|
|
Max Power:
|
123 hp / 89.7 kW @ 13000 rpm
|
|
Max Torque:
|
68.5 Nm / 50.52 lb-ft @ 12000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
#530 O-ring chain
|
|
Frame:
|
Aluminium, twin spar
|
|
Front Suspension:
|
43mm telescopic fork, preload, compression and rebound damping adjustable.
|
|
Front Wheel Travel:
|
119.4 mm / 4.7 in
|
|
Rear Suspension:
|
Monoshock piggyback reservoir and adjustable preload, compression and rebound damping adjustable,
|
|
Rear Wheel Travel:
|
119.4 mm / 4.7 in
|
|
Front Brakes:
|
2x 298mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 220mm disc 1 piston caliper
|
|
Front Tyre:
|
120/70 ZR17
|
|
Rear Tyre:
|
180/55 ZR17
|
|
Rake:
|
25°
|
|
Trail:
|
96 mm / 3.7 in
|
|
Dimensions:
|
Length 2024 mm / 79.6 in Width 691 mm / 27.2 in Height 1098 mm / 43.2 in
|
|
Wheelbase:
|
1380 mm / 54.3 in
|
|
Ground Clearance:
|
130 mm / 5.1 in
|
|
Seat Height:
|
820 mm / 32.3 in
|
|
Dry Weight:
|
167.5 kg / 369.3 lbs
|
|
Wet Weight:
|
197 kg / 369.3 lbs
|
|
Fuel Capacity:
|
17.5 Litres / 4.6 gal
|
|
Consumption Average:
|
18.8 km/lit
|
|
Standing ¼ Mile:
|
10.8 sec
|
|
Top Speed:
|
262.4 km/h / 163.0 mph
|
