Technical specifications
|
| Model: |

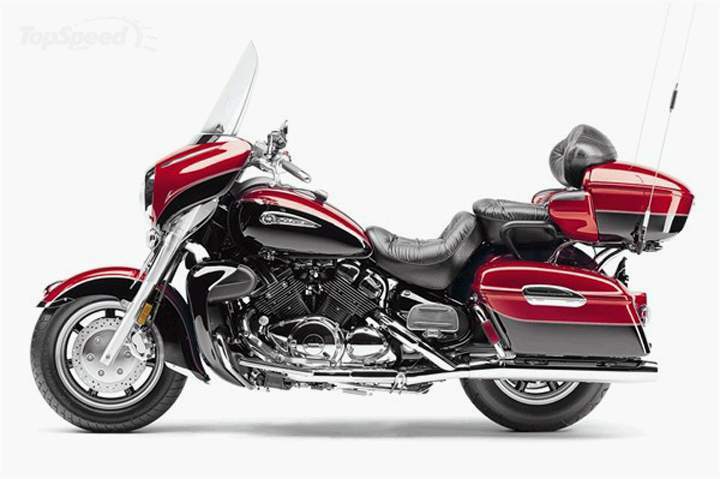

XVZ 1300 Royal Star Venture |
| Years: |
2009-10 |
|
Engine:
|
Four stroke, 70°V-four cylinder, DOHC, 4 valve per cylinder
|
|
Capacity:
|
1294 cc / 78.9 cu-in
|
|
Bore x Stroke:
|
79 х 66 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.0:1
|
|
Induction:
|
4x 32mm Mikuni Constant-Velocity
|
|
Ignition:
|
Digital TCI
|
|
Starting:
|
Electric
|
|
Max Power:
|
98 hp / 71.5 kW @ 4750 rpm
|
|
Max Torque:
|
123 Nm / 90.7 lb-ft @ 4750 rpm
|
|
Clutch:
|
wet, multiple discs, cable operated
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Frame:
|
Steel, Double cradle frame
|
|
Front Suspension:
|
Air assisted telescopic fork
|
|
Front Wheel Travel:
|
142 mm / 5.5 in
|
|
Rear Suspension:
|
Single shock, link-type w/air assist
|
|
Rear Wheel Travel:
|
104 mm / 4.0 in
|
|
Front Brakes:
|
2x 298mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 320mm disc 1 piston caliper
|
|
Front Tyre:
|
150/80-16
|
|
Rear Tyre:
|
150/90-15
|
|
Wheelbase:
|
1705 mm / 67.1 in
|
|
Seat Height:
|
710 mm / 28.0 in
|
|
Ground Clearance:
|
145 mm / 5.7 in
|
|
Dry Weight:
|
366 kg / 807 lbs
|
|
Wet Weight:
|
394 kg / 869 lbs
|
|
Fuel Capacity:
|
22.5 Litres / 5.9 US gal
|
