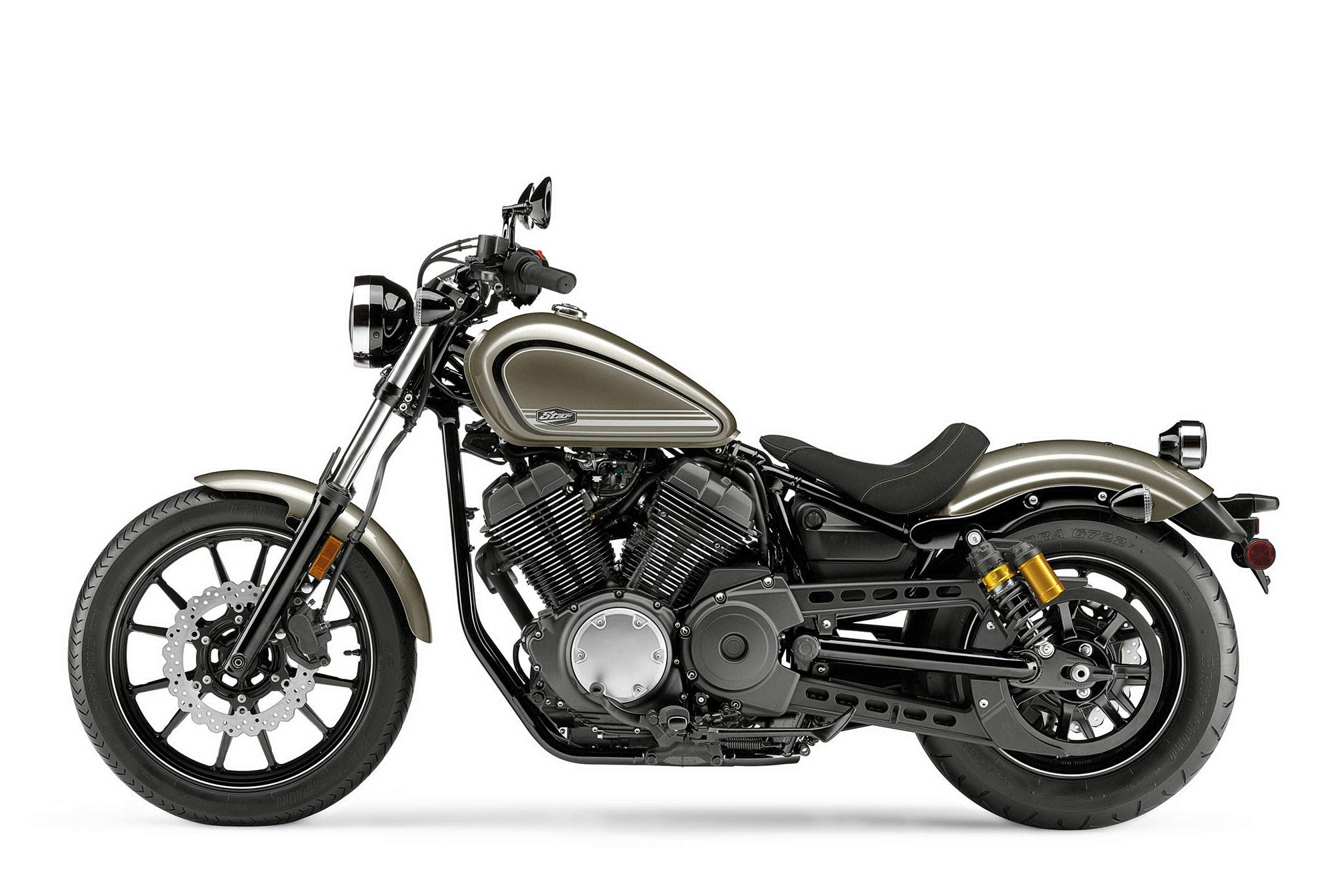

Yamaha XVS 950 V-Star Bolt R Spec (2016-17) technical specifications
Yamaha XVS 950 V-Star Bolt R Spec is produced in 2016-17. Engine is Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder, displacement 942 cc / 58-cu-in Yamaha XVS 950 V-Star Bolt R Spec wet weight is 247 kg / 545 lbs. Yamaha XVS 950 V-Star Bolt R Spec has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XVS 950 V-Star Bolt R Spec |
| Years: | 2016-17 |
| Engine: | Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder |
| Capacity: | 942 cc / 58-cu-in |
| Bore x Stroke: | 85 x 83mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.0:1 |
| Induction: | 35mm dual bore throttle body fuel injection |
| Ignition: | Digital TCI |
| Starting: | Electric |
| Max Torque: | 8.2 kgf-m / 59.3 ft-lb @ 3000rpm |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Front Suspension: | 41mm forks, 5.3in wheel travel |
| Rear Suspension: | Preload adjustable dual shocks |
| Front Brakes: | Single 298mm disc 2 piston caliper |
| Rear Brakes: | Single 298mm disc |
| Front Tyre: | 100/90 -19 |
| Rear Tyre: | 150/80-16 |
| Rake: | 29° |
| Trail: | 130 mm / 5.1 in |
| Dimensions: | Length 2290 mm / 90.2 in Width 830 mm / 37.2 in Height 1120 mm / 44.1in |
| Wheelbase: | 1570 mm / 61.8 in |
| Seat Height: | 690 mm / 27.2 in |
| Wet Weight: | 247 kg / 545 lbs |
| Fuel Capacity: | 12 Litres / 3.1 US gal |
