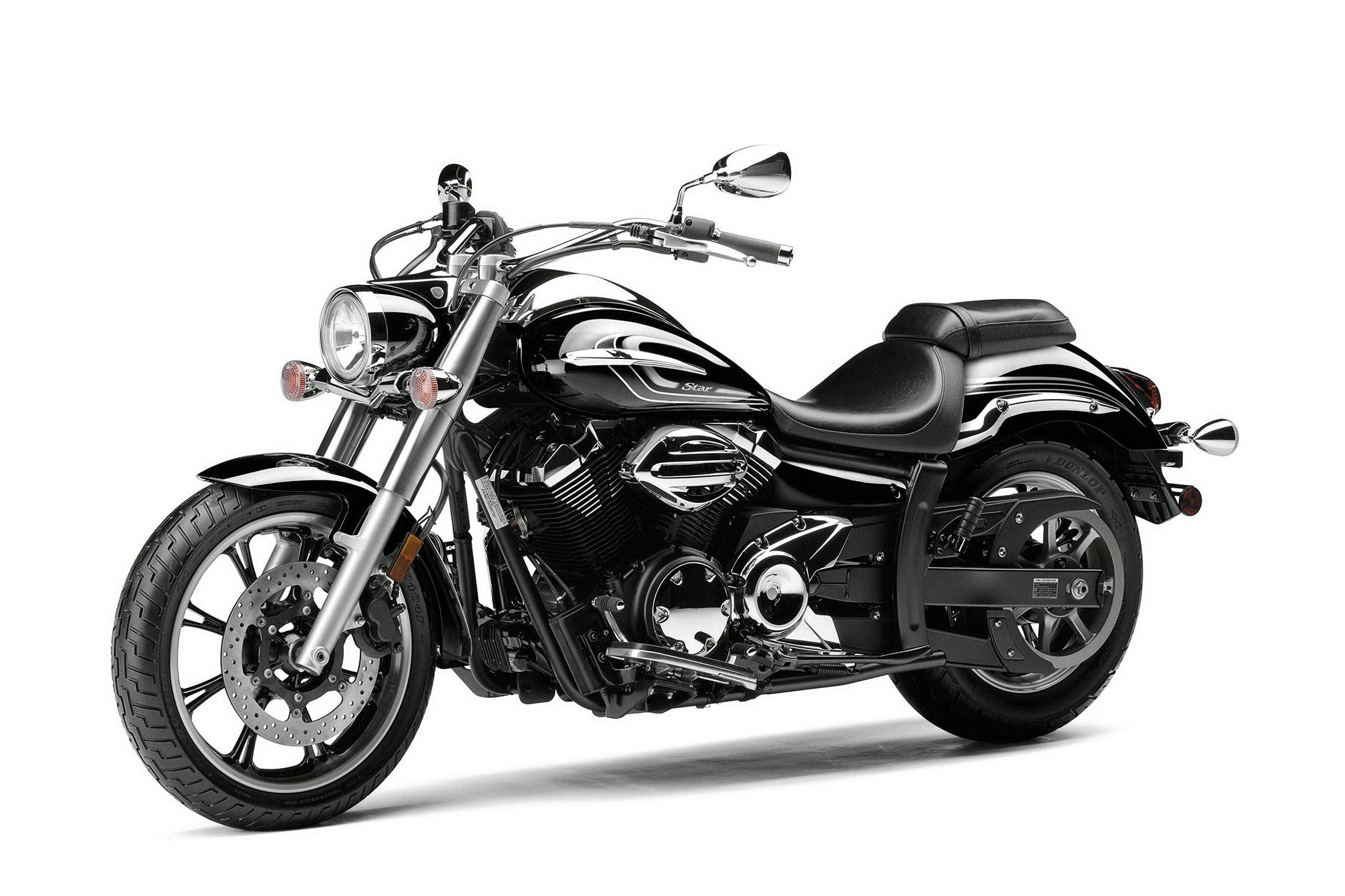

Yamaha XVS 950 V-Star (2015-16) technical specifications

Yamaha XVS 950 V-Star is produced in 2015-16. Engine is Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder, displacement 942 cc / 57.4 cu-in , produces power 52.4 hp / 38.6 kW @ 6000 rpm and 7.8 kgf-m / 56.7 ft-lb @ 3000rpm. Yamaha XVS 950 V-Star wet weight is 278 kg / 611.6 lbs. Yamaha XVS 950 V-Star has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XVS 950 V-Star
Years:	2015-16
Engine:	Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder
Capacity:	942 cc / 57.4 cu-in
Bore x Stroke:	85 x 83mm
Cooling System:	Air cooled
Compression Ratio:	9.0:1
Induction:	35mm dual bore throttle body fuel injection
Ignition:	Digital TCI
Starting:	Electric
Max Power:	52.4 hp / 38.6 kW @ 6000 rpm
Max Torque:	7.8 kgf-m / 56.7 ft-lb @ 3000rpm
Transmission:	5 Speed
Final Drive:	Belt
Frame:	Steel double-cradle
Front Suspension:	41mm forks
Front Wheel Travel:	134 mm / 5.3 in
Rear Suspension:	Adjustable link Monocross
Rear Wheel Travel:	110 mm / 4.3 in
Front Brakes:	Single 320mm disc
Rear Brakes:	Single 298mm disc
Front Tyre:	130/70-18
Rear Tyre:	170/70-16
Rake:	32.0°
Trail:	102 mm / 4.0 in
Dimensions:	Length 2435 mm / 95.9 in Width 1000 mm / 39.4 in Height 1080 mm / 42.5 in
Wheelbase:	1685 mm / 66.3 in
Seat Height:	675mm / 26.6 in
Wet Weight:	278 kg / 611.6 lbs
Fuel Capacity:	17 Liters / 4.4 US gal
