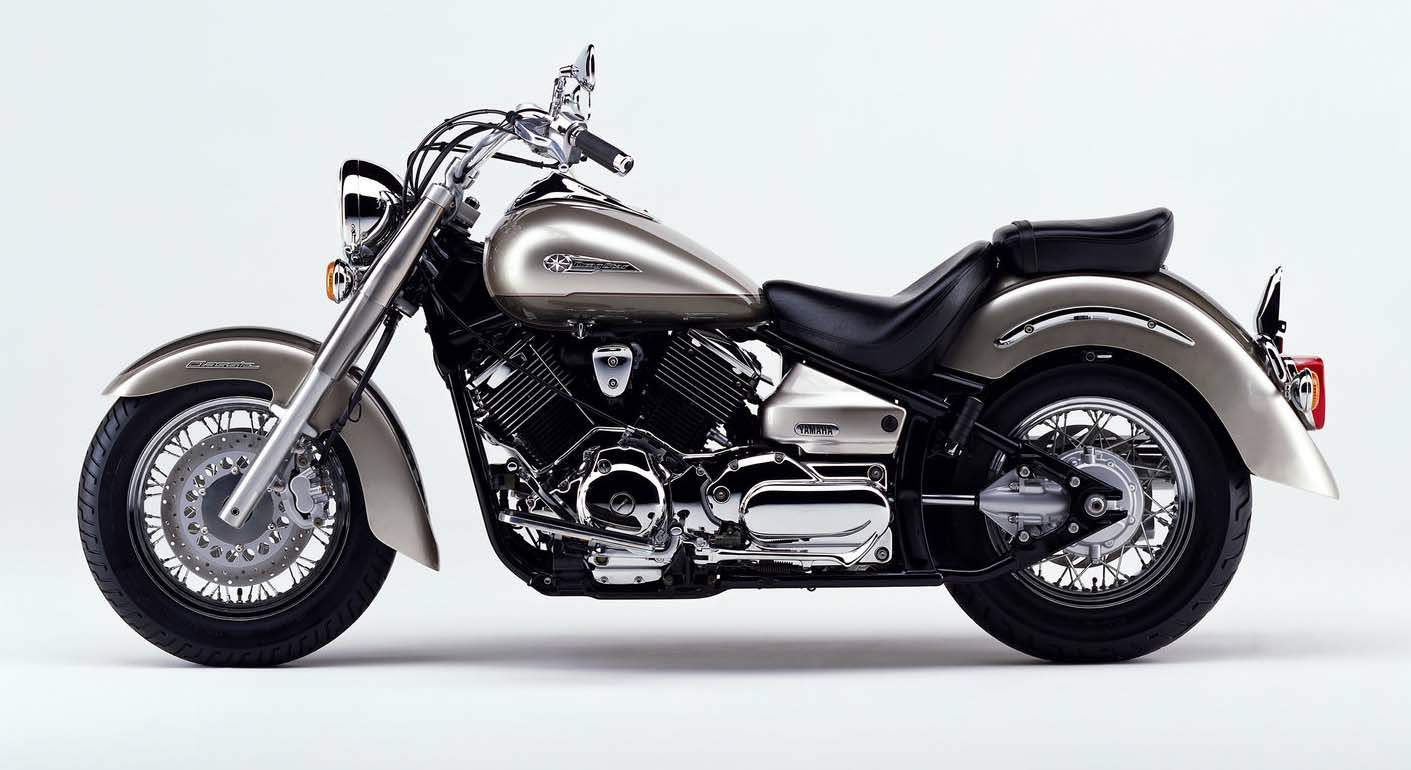

Yamaha XVS 1100 Drag Star Classic (2003-04) technical specifications
Yamaha XVS 1100 Drag Star Classic is produced in 2003-04. Engine is Four stroke, 75° V-twin cylinder SOHC, 4 valve per cylinder, displacement 1063 cc / 64.8 cu-in , produces power 62 hp / 45.2 kW @ 5750 rpm and 85 Nm / 62.7 lb-ft @ 2500 rpm. Yamaha XVS 1100 Drag Star Classic weighs 259 kg / 571 lbs. Yamaha XVS 1100 Drag Star Classic has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XVS 1100 Drag Star Classic |
| Years: | 2003-04 |
| Engine: | Four stroke, 75° V-twin cylinder SOHC, 4 valve per cylinder |
| Capacity: | 1063 cc / 64.8 cu-in |
| Bore x Stroke: | 95 x 75 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 8.3:1 |
| Induction: | Carburetors |
| Ignition: | TCI |
| Starting: | Electric |
| Max Power: | 62 hp / 45.2 kW @ 5750 rpm |
| Max Torque: | 85 Nm / 62.7 lb-ft @ 2500 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Front Suspension: | Telescopic forks |
| Front Wheel Travel: | 140 mm / 5.5 in |
| Rear Suspension: | Swingarm monoshock |
| Rear Wheel Travel: | 113 mm / 4.4 in |
| Front Brakes: | 2x 298mm discs 2 piston calipers |
| Rear Brakes: | Single 282mm disc 1 piston caliper |
| Front Tyre: | 110/90-18 |
| Rear Tyre: | 170/85-15 |
| Dimensions: | Height 1095 mm / 43.1 in Height 2405 mm / 94.7 in Width 895 mm / 35.2 in |
| Wheelbase: | 1640 mm / 64.6 in |
| Seat Height: | 690 mm / 27.2 in |
| Ground Clearance: | 145 mm / 5.7 |
| Dry Weight: | 259 kg / 571 lbs |
| Fuel Capacity: | 17 Litres / 4.4 US gal |
