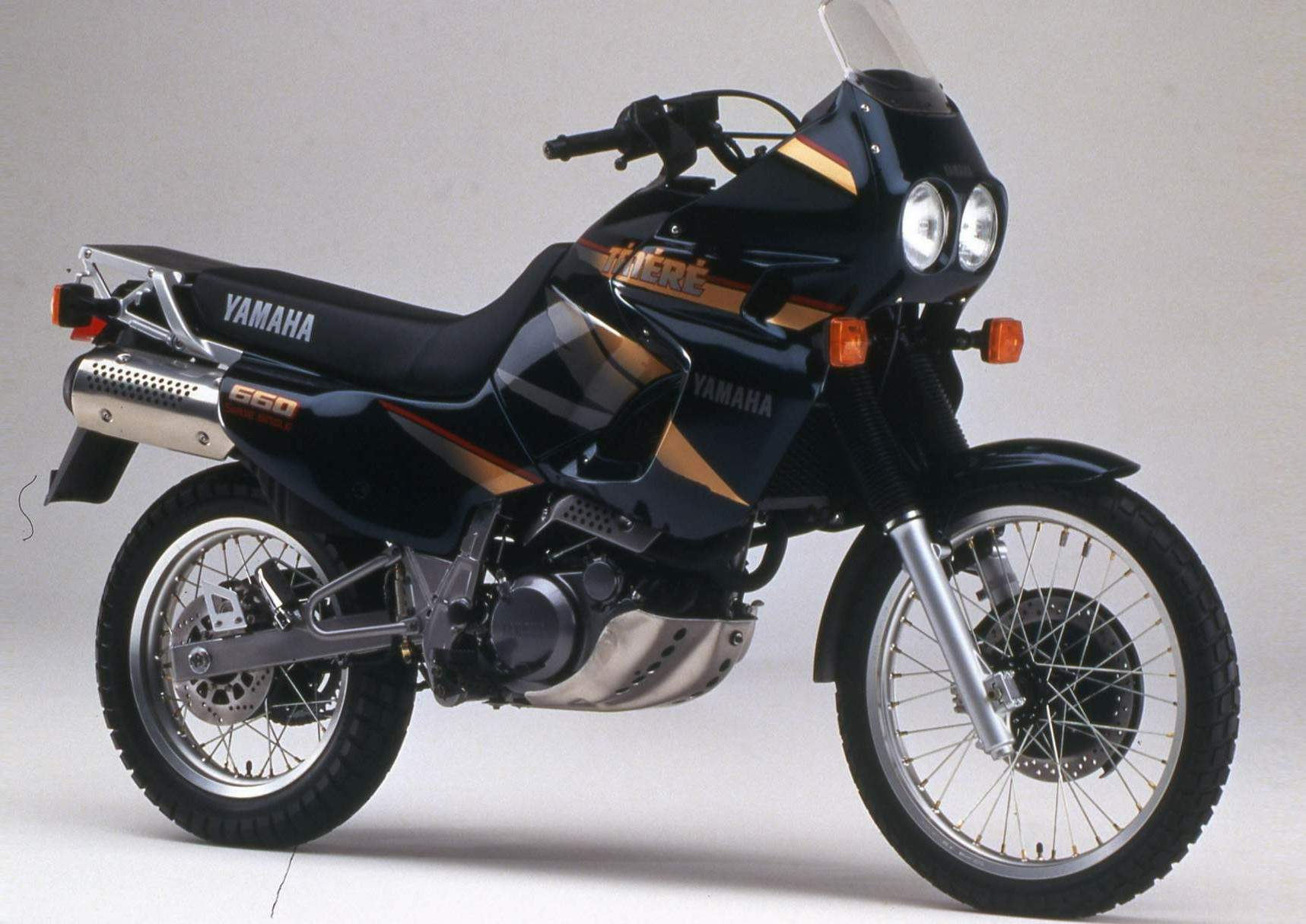

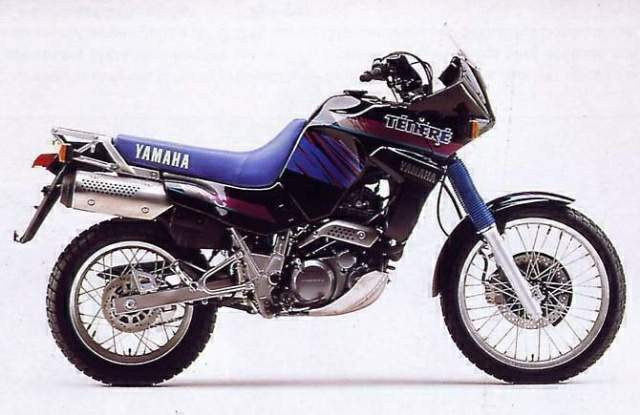

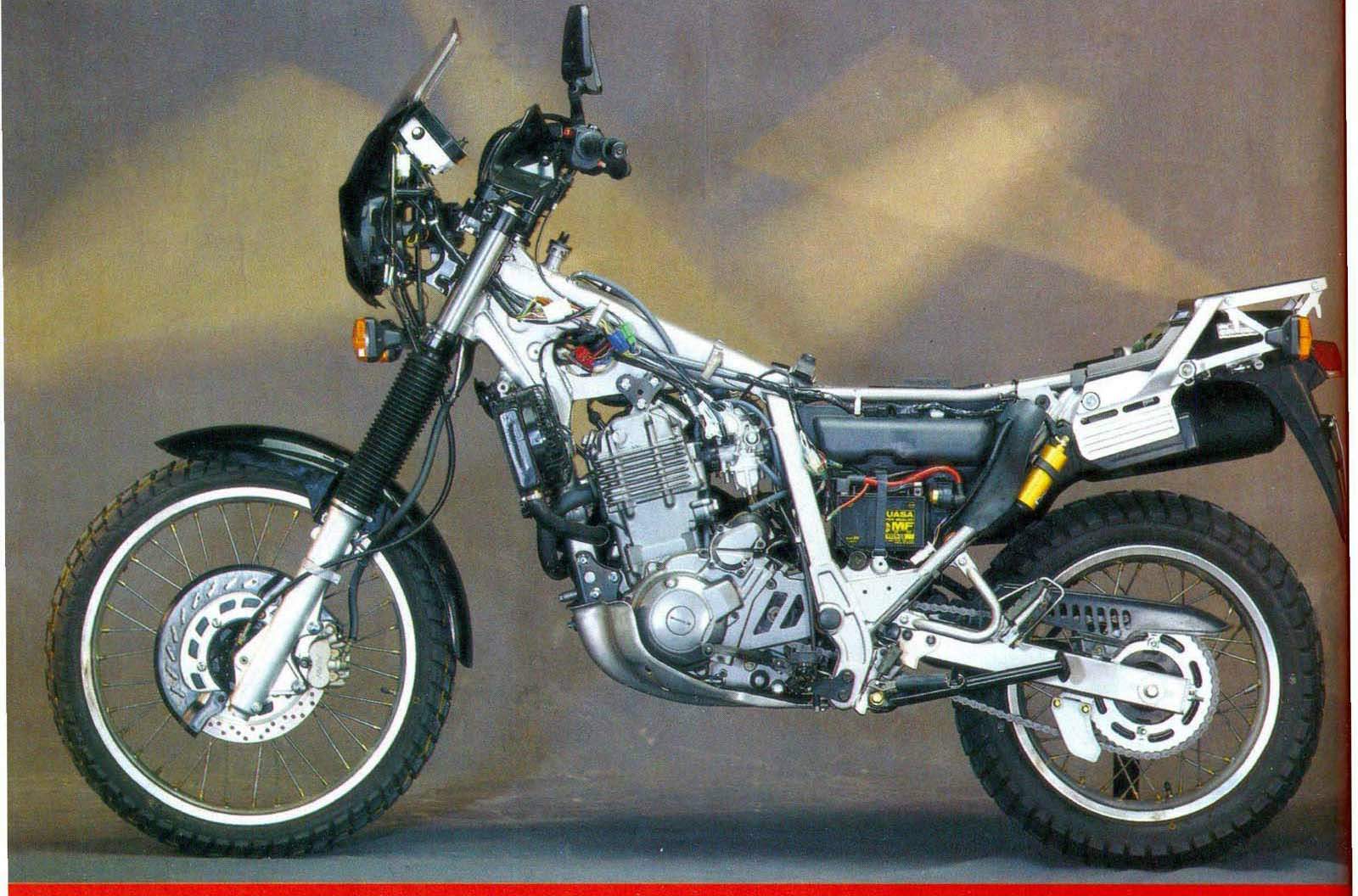

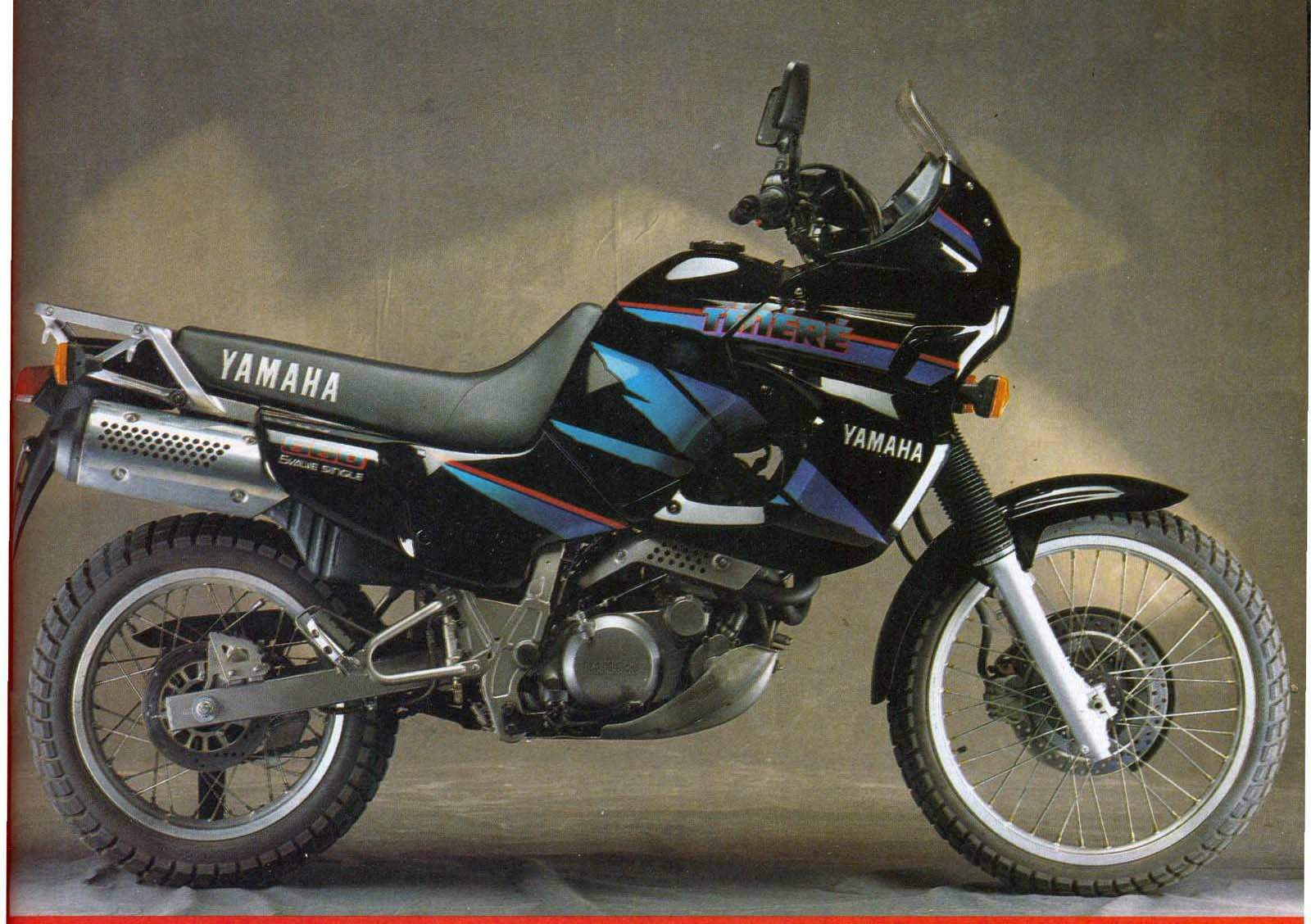

Yamaha XTZ 660 Ténéré (1997) technical specifications

Yamaha XTZ 660 Ténéré is produced in 1997. Engine is Four stroke, single cylinder, SOHC, 5 valves per cylinder, displacement 660 cc / 40.2 cu-in , produces power 46 hp / 35.5 kW @ 6000 rpm and 55.9 Nm / 42 ft. lb @ 5000 rpm. Yamaha XTZ 660 Ténéré top speed is 167.5 km/h / 104 mph. Yamaha XTZ 660 Ténéré weighs 169 kg / 372.5 lbs. Yamaha XTZ 660 Ténéré has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XTZ 660 Ténéré
Years:	1997
Engine:	Four stroke, single cylinder, SOHC, 5 valves per cylinder
Capacity:	660 cc / 40.2 cu-in
Bore x Stroke:	100 x 84 mm
Cooling System:	Liquid cooled,
Compression Ratio:	9.2:1
Lubrication:	Dry sump
Induction:	TEIKEI Y 26 PV / 3YF 00
Ignition:	Transistor Controlled
Starting:	Electric
Max Power:	46 hp / 35.5 kW @ 6000 rpm
Max Power Rear Tyre:	42.9 hp @ 6400 rpm
Max Torque:	55.9 Nm / 42 ft. lb @ 5000 rpm
Transmission:	5 Speed
Final Drive:	Chain
Gear Ratio:	1st 2,583 2nd 1,588 3rd 1,200 4th 0,954 5th 0,792
Front Suspension:	43mm Telescopic forks
Rear Suspension:	Monocross adjustable for preload, 5-way rebound damping
Front Brakes:	Single 282mm disc 4 piston caliper
Rear Brakes:	Single 245mm disc 1 piston caliper
Front Tyre:	90/90-21
Rear Tyre:	120/90-17
Oil Capacity:	3.0 Litres
Dimensions:	Length 2265 mm / 89.1 in Width 885 mm / 34.8 in Height 1355 mm / 53.3 in
Wheelbase:	1495 mm / 58.9 in
Seat Height:	865 mm / 34.1 in
Dry Weight:	169 kg / 372.5 lbs
Wet Weight:	195 kg / 429 lbs
Fuel Capacity:	20 Litres / 5.3 US gal
Reserve:	3.5 Litres
Consumption Average:	16.7 km/lit
Braking 60 - 0 / 100 - 0:	14.7 m / 40.8 m
Standing ¼ Mile:	14.0 sec / 145.3 km/h
Top Speed:	167.5 km/h / 104 mph
Road Test:	Tuttomoto 1994
