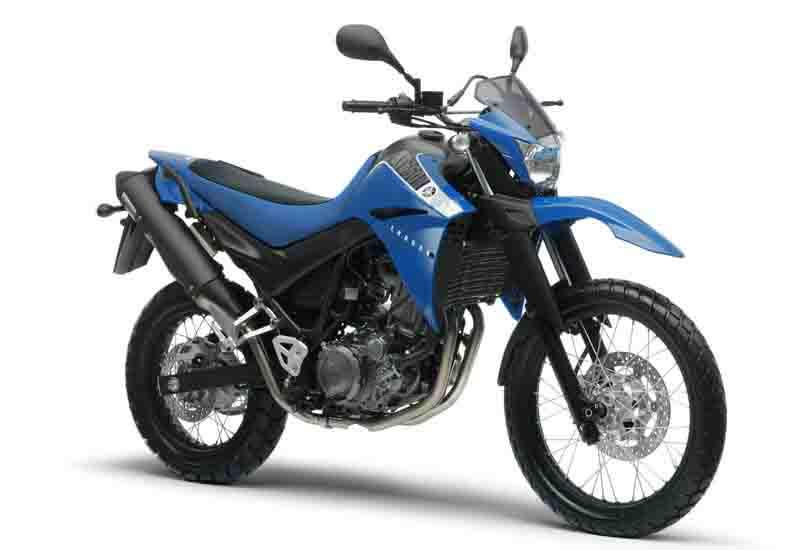

Yamaha XT660R (2010) technical specifications
Yamaha XT660R is produced in 2010. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 659 cc/ 40.2 cu-in , produces power 33.8 kW / 48 hp @ 6000 rpm and 58.4 Nm / 5.7 kgf-m @ 5250 rpm. Yamaha XT660R top speed is 164.7 km/h / 102.3 mph. Yamaha XT660R wet weight is 181 kg / 421 lbs. Yamaha XT660R has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XT660R |
| Years: | 2010 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valve |
| Capacity: | 659 cc/ 40.2 cu-in |
| Bore x Stroke: | 100 x 84 mm |
| Compression Ratio: | 10.0: 1 |
| Cooling System: | Liquid cooled |
| Induction: | Fuel injection, 44 mm throttle body |
| Lubrication: | Dry sump |
| Oil Capacity: | 2.9 Litres / 0.19 quarts |
| Ignition: | TCI |
| Starting: | Electric |
| Max Power: | 33.8 kW / 48 hp @ 6000 rpm |
| Max Torque: | 58.4 Nm / 5.7 kgf-m @ 5250 rpm |
| Clutch: | Wet, multiple-disc coil spring |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Steel tubular diamond frame with dual tank rails |
| Front Suspension: | 43 mm Telescopic forks, |
| Front Wheel Travel: | 225 mm / 8.8 in |
| Rear Suspension: | Oscillating arm standard Monocross. 200mm wheel travel |
| Rear Wheel Travel: | 200 mm / 7.9 in |
| Front Brakes: | Single 298mm disc 2 piston caliper |
| Rear Brakes: | Single 245mm disc 1 piston caliper |
| Front Tyre: | 90/90- 21 |
| Rear Tyre: | 130/80–17 |
| Rake: | 27.0° |
| Trail: | 107 mm / 4.2 in |
| Dimensions: | Height 1230 mm / 48.4 in Length 2240 mm / 88.1 in Width 845 mm / 33.2 in |
| Wheelbase: | 1505 mm / 59.3 in |
| Ground Clearance: | 210 mm / 8.3 in |
| Seat Height: | 865mm / 34.1 in |
| Dry Wight: | 172 kg / 379.2 lbs |
| Wet Weight: | 181 kg / 421 lbs |
| Fuel Capacity: | 15 Litres / 3.3 US gal |
| Consumption Average: | 23 km/lit |
| Standing ¼ Mile: | 14.2 sec |
| Top Speed: | 164.7 km/h / 102.3 mph |
