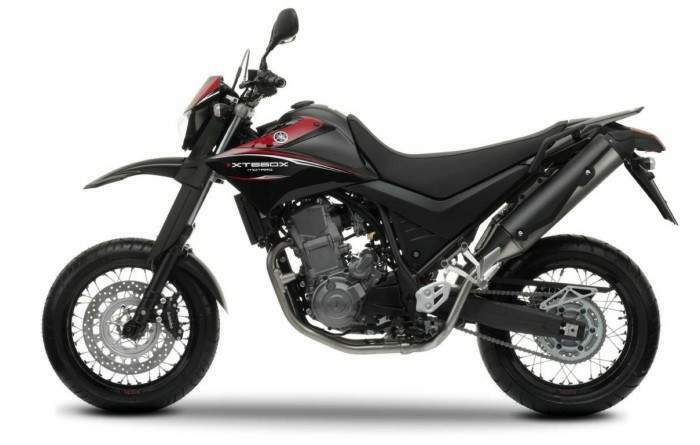

Yamaha XT 660X (2009) technical specifications
Yamaha XT 660X is produced in 2009. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 659 cc/ 40.2 cu-in , produces power 33.8 kW / 48 hp @ 6000 rpm and 58.4 Nm / 5.7 kgf-m @ 5250 rpm. Yamaha XT 660X weighs 173 kg / 318.4 lbs. Yamaha XT 660X has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XT 660X |
| Years: | 2009 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valve |
| Capacity: | 659 cc/ 40.2 cu-in |
| Bore x Stroke: | 100 x 84 mm |
| Compression Ratio: | 10: 1 |
| Cooling System: | Liquid cooled |
| Induction: | Fuel injection, 44 mm throttle body |
| Lubrication: | Dry sump |
| Oil Capacity: | 2.9 Litres / 0.19 quarts |
| Ignition: | TCI |
| Starting: | Electric |
| Max Power: | 33.8 kW / 48 hp @ 6000 rpm |
| Max Torque: | 58.4 Nm / 5.7 kgf-m @ 5250 rpm |
| Clutch: | Wet, multiple-disc coil spring |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Steel tubular diamond frame with dual tank rails |
| Front Suspension: | 43 mm Telescopic forks, |
| Front Wheel Travel: | 225 mm / 8.8 in |
| Rear Suspension: | Oscillating arm standard Monocross. |
| Rear Wheel Travel: | 200 mm / 7.9 in |
| Front Brakes: | Single 320mm disc 4 piston caliper |
| Rear Brakes: | Single 245mm disc 1 piston caliper |
| Front Tyre: | 120/700-17 |
| Rear Tyre: | 160/60-17 |
| Rake: | 26.0° |
| Trail: | 94 mm / 3.7 in |
| Dimensions: | Height 1170 mm / 461 in Length 2175 mm / 85.6 in Width: 860 mm / 33.9 in |
| Wheelbase: | 1505 mm / 59.3 in |
| Ground Clearance: | 210 mm / 8.3 in |
| Seat Height: | 875mm / 34.4 in |
| Dry Weight: | 173 kg / 318.4 lbs |
| Wet Weight: | 186 kg / 410.1 lbs |
| Fuel Capacity: | 15 Litres / 3.9 gal |
