Yamaha XT 660X (2005) technical specifications

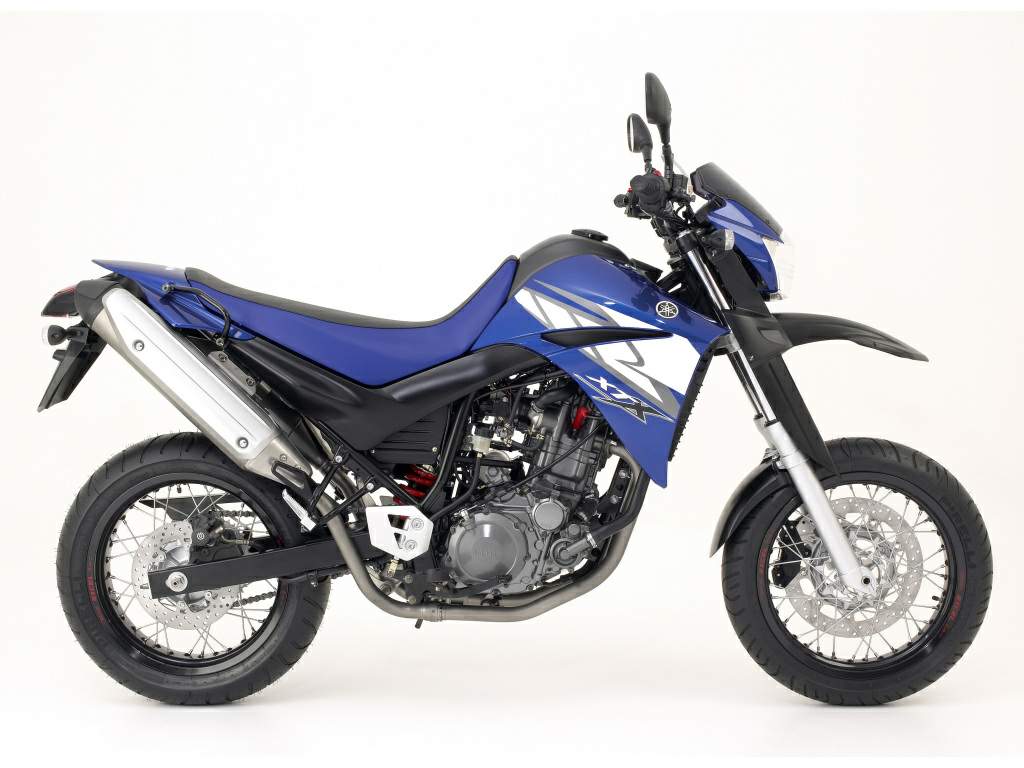

Yamaha XT 660X is produced in 2005. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 659 cc/ 40.2 cu-in , produces power 33.8 kW / 48 hp @ 6000 rpm and 58.4 Nm / 5.7 kgf-m @ 5250 rpm. Yamaha XT 660X weighs 173 kg / 318.4 lbs. Yamaha XT 660X has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XT 660X
Years:	2005
Engine:	Four stroke, single cylinder, SOHC, 4 valve
Capacity:	659 cc/ 40.2 cu-in
Bore x Stroke:	100 x 84 mm
Compression Ratio:	10: 1
Cooling System:	Liquid cooled
Induction:	Fuel injection, 44 mm throttle body
Lubrication:	Dry sump
Oil Capacity:	2.9 Litres / 0.19 quarts
Ignition:	TCI
Starting:	Electric
Max Power:	33.8 kW / 48 hp @ 6000 rpm
Max Torque:	58.4 Nm / 5.7 kgf-m @ 5250 rpm
Clutch:	Wet, multiple-disc coil spring
Transmission:	5 Speed
Final Drive:	Chain
Frame:	Steel tubular diamond frame with dual tank rails
Front Suspension:	43 mm Telescopic forks,
Front Wheel Travel:	225 mm / 8.8 in
Rear Suspension:	Oscillating arm standard Monocross.
Rear Wheel Travel:	200 mm / 7.9 in
Front Brakes:	Single 320mm disc 4 piston caliper
Rear Brakes:	Single 245mm disc 1 piston caliper
Front Tyre:	120/700-17
Rear Tyre:	160/60-17
Rake:	26.0°
Trail:	94 mm / 3.7 in
Dimensions:	Height 1170 mm / 461 in Length 2175 mm / 85.6 in Width: 860 mm / 33.9 in
Wheelbase:	1505 mm / 59.3 in
Ground Clearance:	210 mm / 8.3 in
Seat Height:	875mm / 34.4 in
Dry Weight:	173 kg / 318.4 lbs
Wet Weight:	186 kg / 410.1 lbs
Fuel Capacity:	15 Litres / 3.9 gal
