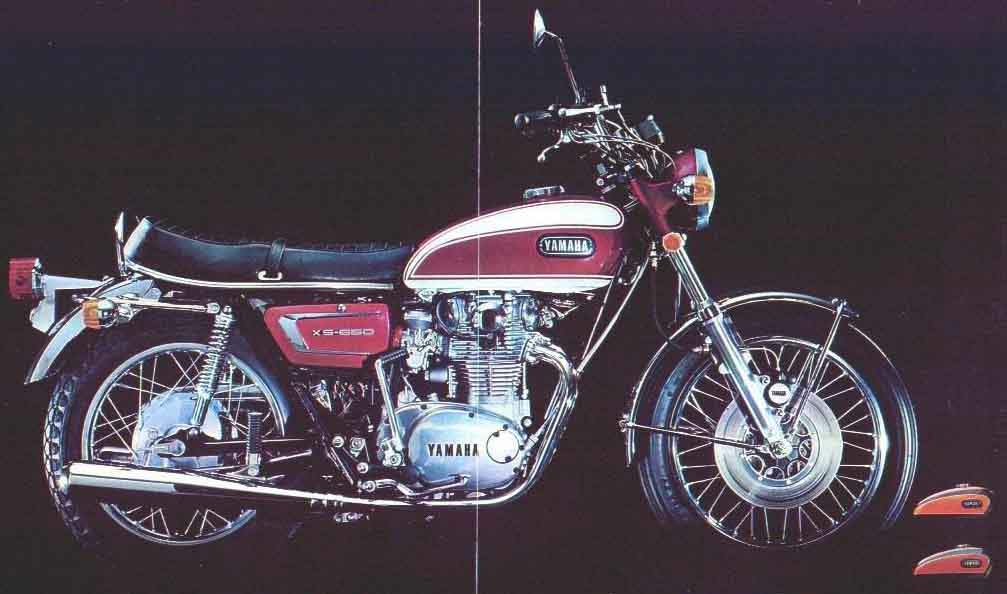

Yamaha XS 650 (XS-2) (1972) technical specifications
Yamaha XS 650 (XS-2) is produced in 1972. Engine is Four stroke, parallel twin cylinder, SOHC, 2 valves per cylinder., displacement 653 cc / 39.8 cu in , produces power 39.5 kW / 53 hp @ 7200 rpm and 54 Nm / 5.5 kgf-m / 39.8 lb-ft @ 6800 rpm. Yamaha XS 650 (XS-2) top speed is 185 km/h / 115 mph. Yamaha XS 650 (XS-2) weighs 185 kg / 408 lbs. Yamaha XS 650 (XS-2) has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XS 650 (XS-2) |
| Years: | 1972 |
| Engine: | Four stroke, parallel twin cylinder, SOHC, 2 valves per cylinder. |
| Capacity: | 653 cc / 39.8 cu in |
| Bore x Stroke: | 75 x 74 mm |
| Compression Ratio: | 8.4:1 |
| Cooling System: | Air cooled |
| Lubrication: | Wet sump |
| Induction: | 2 x Mikuni BS38 carburetors |
| Ignition: | Battery, induction coil |
| Starting: | Kick |
| Max Power: | 39.5 kW / 53 hp @ 7200 rpm |
| Max Torque: | 54 Nm / 5.5 kgf-m / 39.8 lb-ft @ 6800 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Dual shock absorbers |
| Front Brakes: | Single disc |
| Rear Brakes: | Drum |
| Front Tyre: | 3.50-19 |
| Rear Tyre: | 4.00-18 |
| Dimensions: | Length: 2175 mm / 85.6" Width: 905 mm / 35.0" Height: 1135 mm / 44.7" |
| Wheelbase: | 1410 mm / 55.5" |
| Ground Clearance: | 150 mm / 5.5" |
| Dry Weight: | 185 kg / 408 lbs |
| Fuel Capacity: | 12.5 Litres / 3.3 US gal |
| Oil Capacity: | 3.0 Litres / 3.2 US qts |
| Top Speed: | 185 km/h / 115 mph |
