Yamaha XS 500 (1985) technical specifications

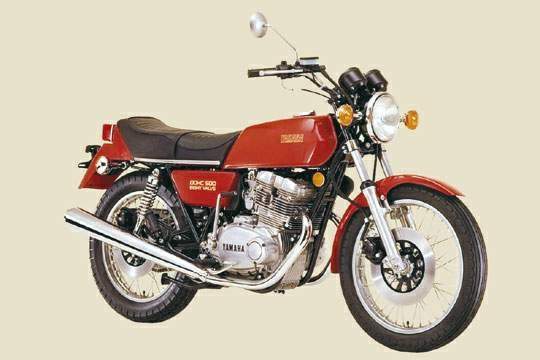

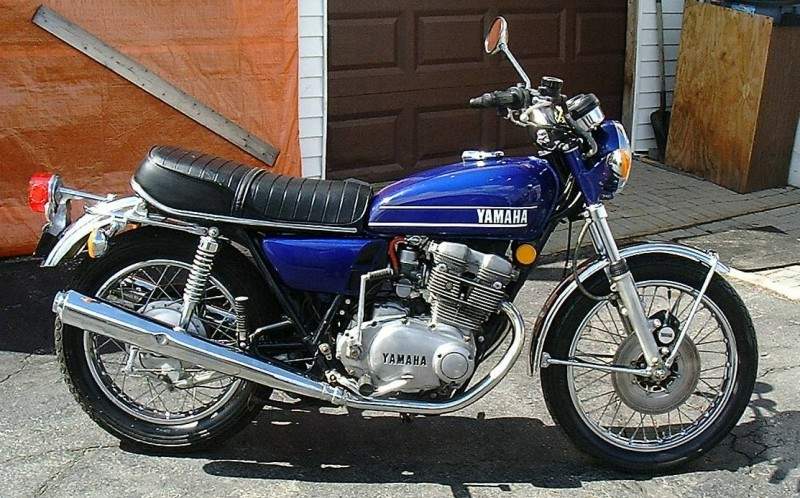

Yamaha XS 500 is produced in 1985. Engine is Four stole, parallel twin cylinder. DOHC, displacement 498 cc / 30.5 cu-in , produces power 48 hp / 36.5 kW @ 8500 rpm and 4.5 kgf-m / 32.5 lb-ft @ 6500 rpm. Yamaha XS 500 top speed is 105 mph. Yamaha XS 500 wet weight is 207.7 kg / 458 lb. Yamaha XS 500 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XS 500 |
| Years: | 1985 |
| Engine: | Four stole, parallel twin cylinder. DOHC |
| Capacity: | 498 cc / 30.5 cu-in |
| Bore x Stroke: | 73 х 59.6 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.0:1 |
| Lubrication: | Wet sump |
| Induction: | 2x 38mm Mikuni carburetor |
| Ignition: | Battery and coil |
| Starting: | Electric & kick |
| Max Power: | 48 hp / 36.5 kW @ 8500 rpm |
| Max Torque: | 4.5 kgf-m / 32.5 lb-ft @ 6500 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Full cradle frame - Duplex type" and is 100% of circular steel pipes! |
| Front Suspension: | Telescopic fork. |
| Rear Suspension: | Dual shocks swing arm, preload adjustable! |
| Front Brakes: | Single 267mm disc |
| Rear Brakes: | Drum |
| Front Tyre: | 3.25-19 |
| Rear Tyre: | 3.50-18 |
| Seat Height: | 812 mm / 32 in |
| Wet Weight: | 207.7 kg / 458 lb |
| Fuel Capacity: | 12.8 Litres / 3 4 US gal |
| Consumption Average: | 46 mpg |
| Braking 60 - 0 / 100 - 0: | - / 139 ft |
| Standing ¼ Mile: | 14.36 sec |
| Top Speed: | 105 mph |
