Yamaha XS 250 DOHC Special (1982-) technical specifications

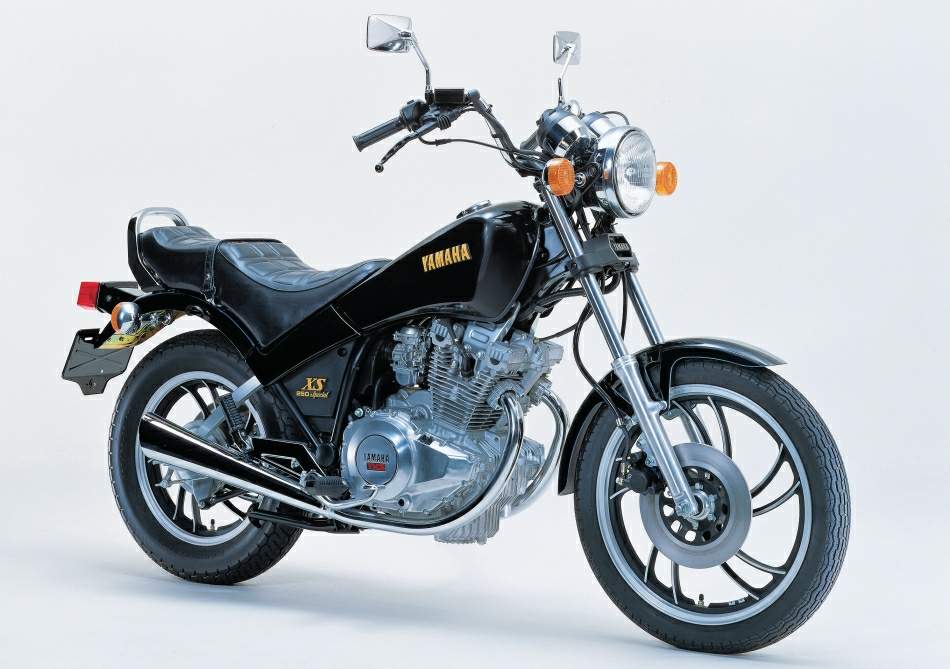

Yamaha XS 250 DOHC Special is produced in 1982-. Engine is Four stroke, 180° parallel twin, DOHC, 2 valves per cylinder, displacement 248 cc / 15.2 cu-in , produces power 30 hp / 22.3 kW @ 10000 rpm and 2.2 kgf-m / 15.2 lb-ft @ 8500 rpm. Yamaha XS 250 DOHC Special weighs 169 kg / 373 lbs. Yamaha XS 250 DOHC Special has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XS 250 DOHC Special |
| Years: | 1982- |
| Engine: | Four stroke, 180° parallel twin, DOHC, 2 valves per cylinder |
| Capacity: | 248 cc / 15.2 cu-in |
| Bore x Stroke: | 56 х 50.6 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.1:1 |
| Lubrication: | Wet sump |
| Induction: | 2x 32mm Mikuni carburetors |
| Ignition: | Coil and cb |
| Starting: | Kick |
| Max Power: | 30 hp / 22.3 kW @ 10000 rpm |
| Max Torque: | 2.2 kgf-m / 15.2 lb-ft @ 8500 rpm |
| Clutch: | Wet multiplate with seven friction and six thrust plates |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Frame: | Welded tubular. Double cradle with single downtube |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Dual shocks, swing arm, 5-position preload adjustable |
| Front Brakes: | Single 267mm disc |
| Rear Brakes: | 177mm Drum |
| Front Tyre: | 3.00-18 |
| Rear Tyre: | 4.10-16 |
| Rake: | 27° |
| Trail: | 87 mm / 3.43 in |
| Wheelbase: | 1375 mm / 54.1 in |
| Seat Height: | 770 mm / 30.3 in |
| Dry Weight: | 169 kg / 373 lbs |
| Fuel Capacity: | 14 Litres / 3.7 US gal |
