Yamaha XS 1100G (1980) technical specifications

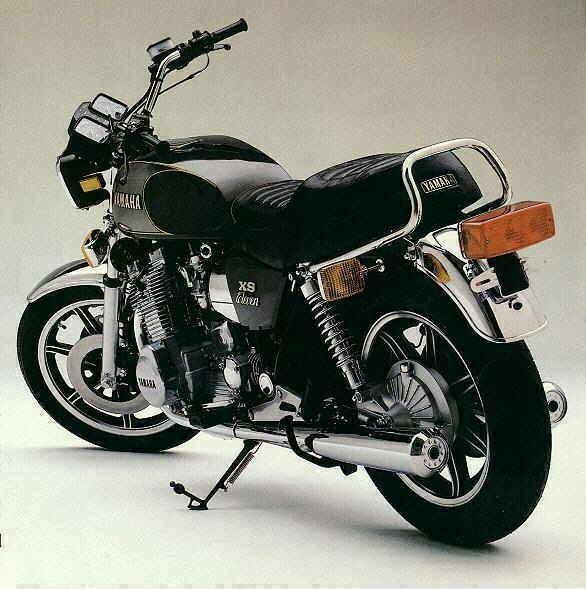

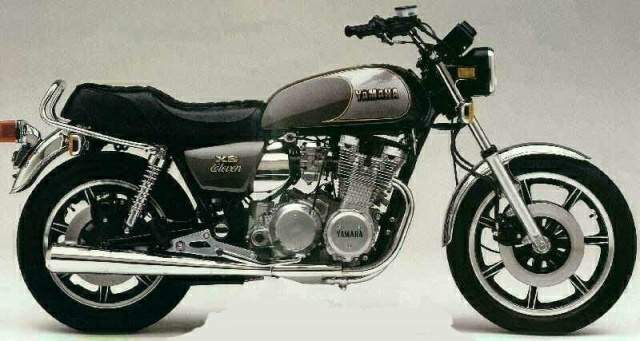

Yamaha XS 1100G is produced in 1980. Engine is Four stroke transverse four cylinder, DOHC, 2 valves per cylinder., displacement 1101 cc / 67.2 cu-in , produces power 95 hp / 70.8 kW @ 8500 rpm and 9.2 kgf-m / 66.5 lb-ft @ 6500 rpm. Yamaha XS 1100G wet weight is 258kg / 568.7 lbs. Yamaha XS 1100G has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XS 1100G |
| Years: | 1980 |
| Engine: | Four stroke transverse four cylinder, DOHC, 2 valves per cylinder. |
| Capacity: | 1101 cc / 67.2 cu-in |
| Bore x Stroke: | 71.5 x 68.6 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | 4x Mikuni BS 34SS Carburettor |
| Lubrication: | Wet sump |
| Ignition: | TCI additional vacuum adjusted! / electric kick starter - Witch is separated from the engine, for emergency mounting only |
| Spark Plug: | BP6ES (NGK) or N-8Y (Champion) |
| Battery: | GM 18Z-3A / 12v, 20 AH |
| Generator: | A.C. Generator, voltage regulator, rectifier |
| Starting: | Electric |
| Max Power: | 95 hp / 70.8 kW @ 8500 rpm |
| Max Torque: | 9.2 kgf-m / 66.5 lb-ft @ 6500 rpm |
| Clutch: | Wet, multi-disc (8 drive plates, 7 driven plates) |
| Transmission: | 5 Speed |
| Primary Reduction System: | HY-VO chain & gear |
| Primary Reduction Ratio: | 25/25 x 58/35 = 1.657 |
| Final Drive: | Shaft |
| Gear Ratio: | 1st 38/17 (2.235) 2nd 39/24 (1.625) 3rd 36/28 (1.286) 4th 32/31 (1.032) 5th 30/34 (0.882) |
| Front Suspension: | Telescopic fork. |
| Front Wheel Travel: | 175 mm / 6.8 in |
| Rear Suspension: | Dual shocks Swing arm, preload adjustable |
| Rear Wheel Travel: | 80 mm / 3.1 in |
| Front Brakes: | 2x 298mm discs |
| Rear Brakes: | Single 298mm disc |
| Front Tyre: | 3.50-19 |
| Rear Tyre: | 4.50-17 |
| Rake: | 29º 30 |
| Trail: | 130 mm / 5.1 in |
| Seat Height: | 800 mm / 31.5 in |
| Wet Weight: | 258kg / 568.7 lbs |
| Fuel Capacity: | 22 Litres / 5.8 gal |
