Technical specifications
|
| Model: |

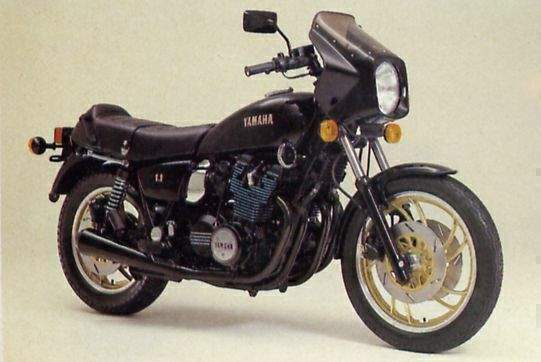

XS 1100 Sport |
| Years: |
1981 |
|
Engine:
|
Four stroke transverse four cylinder, DOHC, 2 valves per cylinder.
|
|
Capacity:
|
1101 cc / 67.2 cu-in
|
|
Bore x Stroke:
|
71.5 x 68.6 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.2:1
|
|
Induction:
|
4x Mikuni BS 34SS Carburettor
|
|
Lubrication:
|
Wet sump
|
|
Ignition:
|
TCI additional vacuum adjusted! / electric kick starter - Witch is separated from the engine, for emergency mounting only
|
|
Spark Plug:
|
BP6ES (NGK) or N-8Y (Champion)
|
|
Battery:
|
GM 18Z-3A / 12v, 20 AH
|
|
Generator:
|
A.C. Generator, voltage regulator, rectifier
|
|
Starting:
|
Electric
|
|
Max Power:
|
95 hp / 70.8 kW @ 8500 rpm
|
|
Max Torque:
|
9.2 kgf-m / 66.5 lb-ft @ 6500 rpm
|
|
Clutch:
|
Wet, multi-disc (8 drive plates, 7 driven plates)
|
|
Transmission:
|
5 Speed
|
|
Primary Reduction System:
|
HY-VO chain & gear
|
|
Primary Reduction Ratio:
|
25/25 x 58/35 = 1.657
|
|
Final Drive:
|
Shaft
|
|
Gear Ratio:
|
1st 38/17 (2.235) 2nd 39/24 (1.625) 3rd 36/28 (1.286) 4th 32/31 (1.032) 5th 30/34 (0.882)
|
|
Front Suspension:
|
Telescopic fork.
|
|
Front Wheel Travel:
|
175 mm / 6.8 in
|
|
Rear Suspension:
|
Dual shocks Swing arm, preload adjustable
|
|
Rear Wheel Travel:
|
80 mm / 3.1 in
|
|
Front Brakes:
|
2x 298mm discs
|
|
Rear Brakes:
|
Single 298mm disc
|
|
Front Tyre:
|
3.50-19
|
|
Rear Tyre:
|
4.50-17
|
|
Rake:
|
29º 30
|
|
Trail:
|
130 mm / 5.1 in
|
|
Seat Height:
|
800 mm / 31.5 in
|
|
Wet Weight:
|
258kg / 568.7 lbs
|
|
Fuel Capacity:
|
22 Litres / 5.8 gal
|
