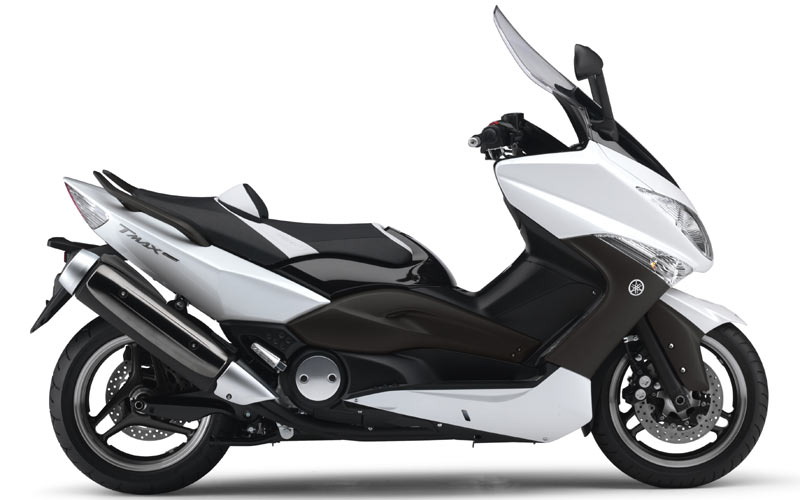

Yamaha XP 500 T-Max Limited Edition (2010) technical specifications
Yamaha XP 500 T-Max Limited Edition is produced in 2010. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder., displacement 499 cc / 30.4 cu-in , produces power 33.5 kW / 45 hp @ 6750 rpm and 52.3 Nm / 38.6 lb-ft @ 5200 rpm. Yamaha XP 500 T-Max Limited Edition weighs 203 kg / 447.5 lbs - ABS 208 kg / 458.5 lbs. Yamaha XP 500 T-Max Limited Edition has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XP 500 T-Max Limited Edition |
| Years: | 2010 |
| Engine: | Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder. |
| Capacity: | 499 cc / 30.4 cu-in |
| Bore x Stroke: | 66 x 73 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 10.9:1 |
| Lubrication: | Semi-dry-sump |
| Induction: | Mikuni 34 mm throttle body Electronic Fuel Injection |
| Ignition: | TCI |
| Starting: | Electric |
| Max Power: | 33.5 kW / 45 hp @ 6750 rpm |
| Max Torque: | 52.3 Nm / 38.6 lb-ft @ 5200 rpm |
| Clutch: | Wet, multiple-disc automatic |
| Transmission: | Fully automatic CVT |
| Final Drive: | V-Belt |
| Front Suspension: | 43mm Telescopic forks |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | Swingarm - single shock |
| Rear Wheel Travel: | 116 mm / 4.6 in |
| Front Brakes: | 2x 267 discs |
| Rear Brakes: | Single 267 disc |
| Front Tyre: | 120/70-15 |
| Rear Tyre: | 160/60-15 |
| Dimensions: | Length 2195 mm mm / 86.6 in Width 775 mm / 30.5 in Height 1445 mm / 55.9 or 58.1 in |
| Ground Clearance: | 125 mm / 4.9 in |
| Wheelbase: | 1580 mm / 62.2 in |
| Maximum Load: | 197kg / 434 lbs |
| Seat Height: | 800 mm / 31.5 in |
| Dry Weight: | 203 kg / 447.5 lbs - ABS 208 kg / 458.5 lbs |
| Wet Weight: | 218 kg / 481 lbs |
| Fuel Capacity: | 15 Litters / 3.9 US gal |
