Technical specifications
|
| Model: |

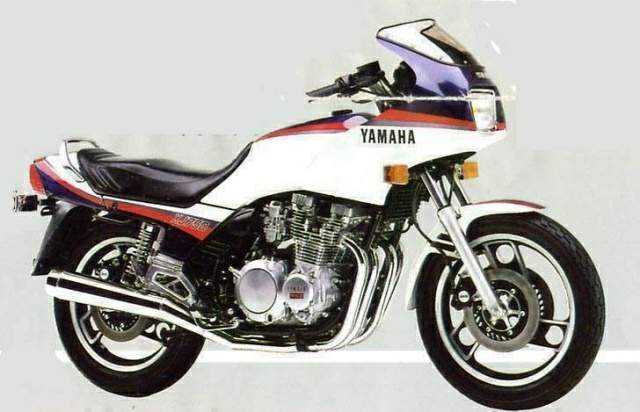

XJ 750R |
| Years: |
1983-84 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 2 valves per cylinder.
|
|
Capacity:
|
749 cc / 45.6 cu-in
|
|
Bore x Stroke:
|
65 х 56.5 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.2:1
|
|
Induction:
|
4X 32mm Hitachi CV
|
|
Ignition:
|
Transistorized
|
|
Starting:
|
Electric
|
|
Max Power:
|
81 hp / 59.6 kW @ 9000 rpm
|
|
Max Torque:
|
48.5 Nm / 35.7 lb-ft @ 7000 rpm
|
|
Clutch:
|
Multi-plat, wet
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Gear Ratios:
|
5th 5.68 / 4th 6.52 / 3rd .8.07 / 2nd.10.48 / 1st 15.29
|
|
Front Suspension:
|
Telescopic fork, 150mm wheel travel.
|
|
Rear Suspension:
|
Swing arm, twin shocks 96mm wheel travel.
|
|
Front Brakes:
|
2x 294mm disc 2 piston calipers
|
|
Rear Brakes:
|
Single 200mm disc
|
|
Front Tyre:
|
3.25H-18
|
|
Rear Tyre:
|
120/90-19
|
|
Seat Height:
|
775 mm / 30.5 in
|
|
Dry Weight:
|
218 kg / 480 lbs
|
|
Fuel Capacity:
|
19 Litres / 5.0 US gal
|
