Yamaha XJ 750E-II (1983) technical specifications

Yamaha XJ 750E-II technical specifications

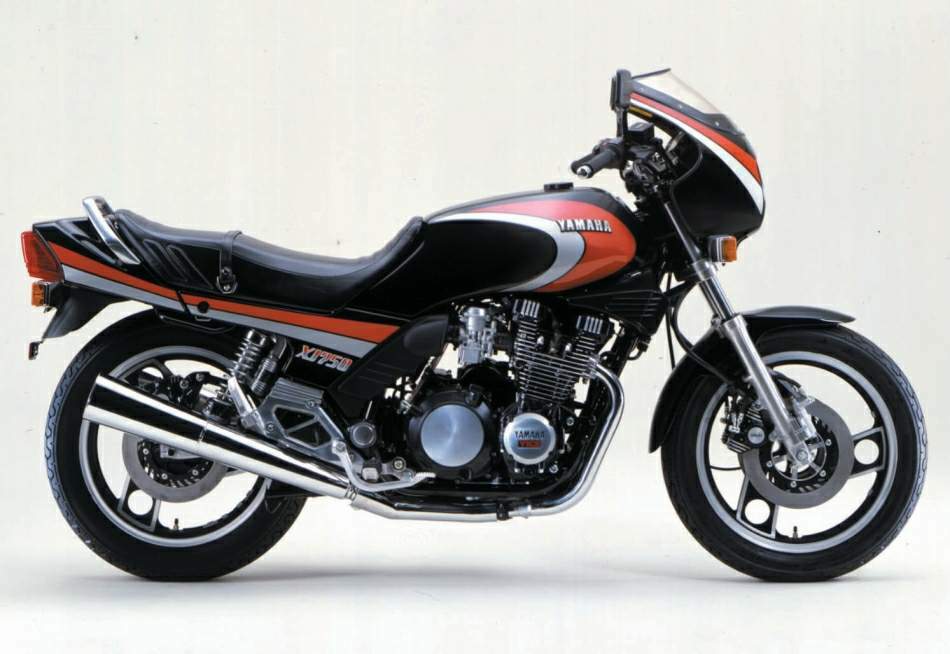

Yamaha XJ 750E-II is produced in 1983. Engine is Four stroke, transverse four cylinder, DOHC, 2 valves per cylinder, displacement 749 cc / 45.6 cu-in , produces power 87 hp / 64.8 kW @ 9000 rpm and 7.1 kgf-m / 51.3 lb-ft @ 7000 rpm. Yamaha XJ 750E-II weighs 214 kg / 471.4 lbs. Yamaha XJ 750E-II has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: XJ 750E-II
Years: 1983
Engine: Four stroke, transverse four cylinder, DOHC, 2 valves per cylinder
Capacity: 749 cc / 45.6 cu-in
Bore x Stroke: 65 х 56.5 mm
Cooling System: Air cooled
Lubrication: Wet sump
Compression Ratio: 9.8:1
Induction: HSC33 carburetors
Ignition: Transistorized
Starting: Electric
Max Power: 87 hp / 64.8 kW @ 9000 rpm
Max Torque: 7.1 kgf-m / 51.3 lb-ft @ 7000 rpm
Clutch: Wet multiplate
Transmission: 5 Speed
Final Drive: Shaft
Primary Reduction Ratio: 1.672
Secondary Reduction Ratio: 3.984
Gear Ratio: 1st 2.187 / 2nd 1.500 / 3rd 1.152 / 4th 0.933 / 5th 0.811
Frame: Double cradle
Front Suspension: 36mm Showa forks adjustable air pressure anti-dive resistance
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Dual dampers adjustable for spring preload rebound damping
Rear Wheel Travel: 97.5 mm / 3.8 in
Front Brakes: 2x 300mm disc 2 piston calipers
Rear Brakes: Single disc
Front Tyre: 100/90-18
Rear Tyre: 120/90-18
Rake: 27°
Trail: 114 mm / 4.4 in
Wheelbase: 1480 mm / 58.2 in
Seat Height: 785 mm / 31 in
Dry Weight: 214 kg / 471.4 lbs
Wet Weight: 241 kg / 531.3 lbs
Fuel Capacity: 22 Litres / 5.8 US gal
