Yamaha WR 250F (2018-19) technical specifications

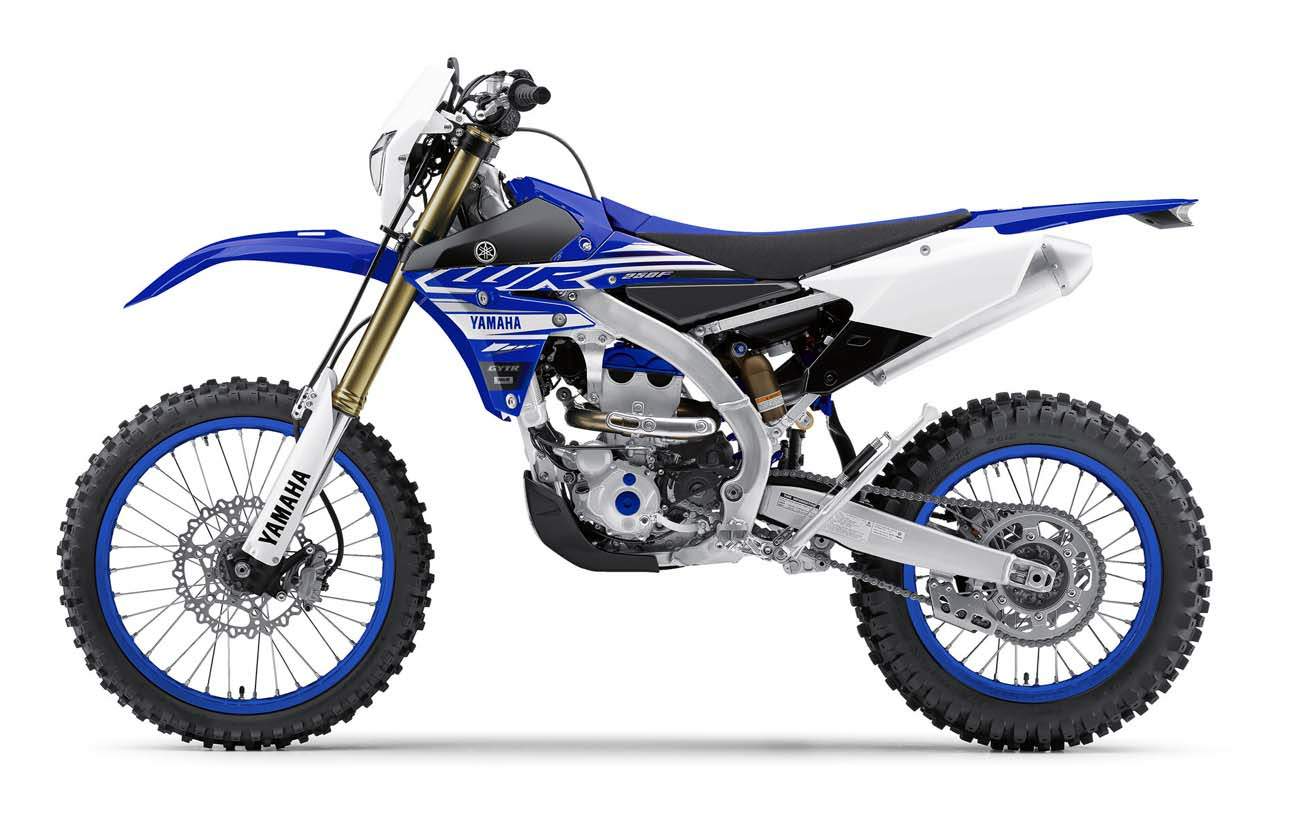

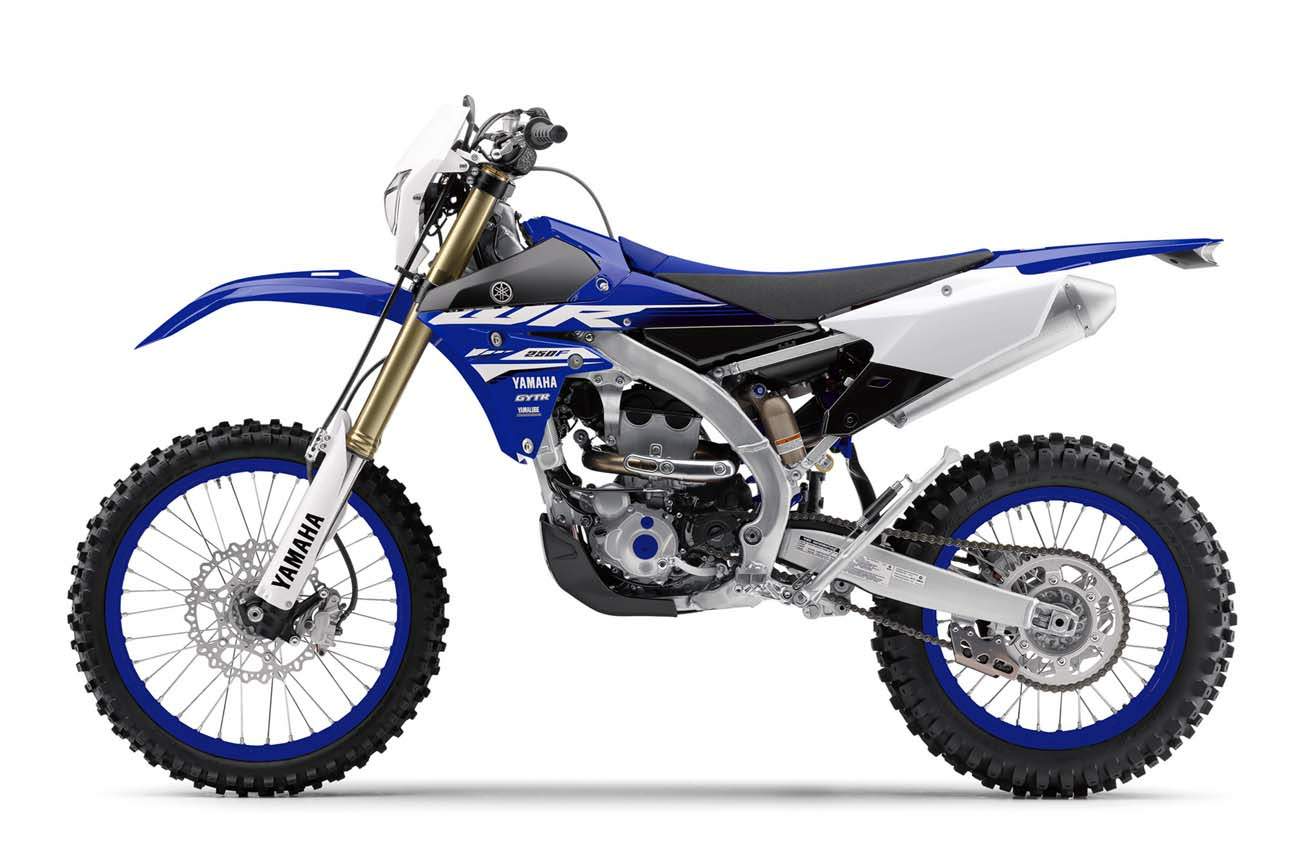

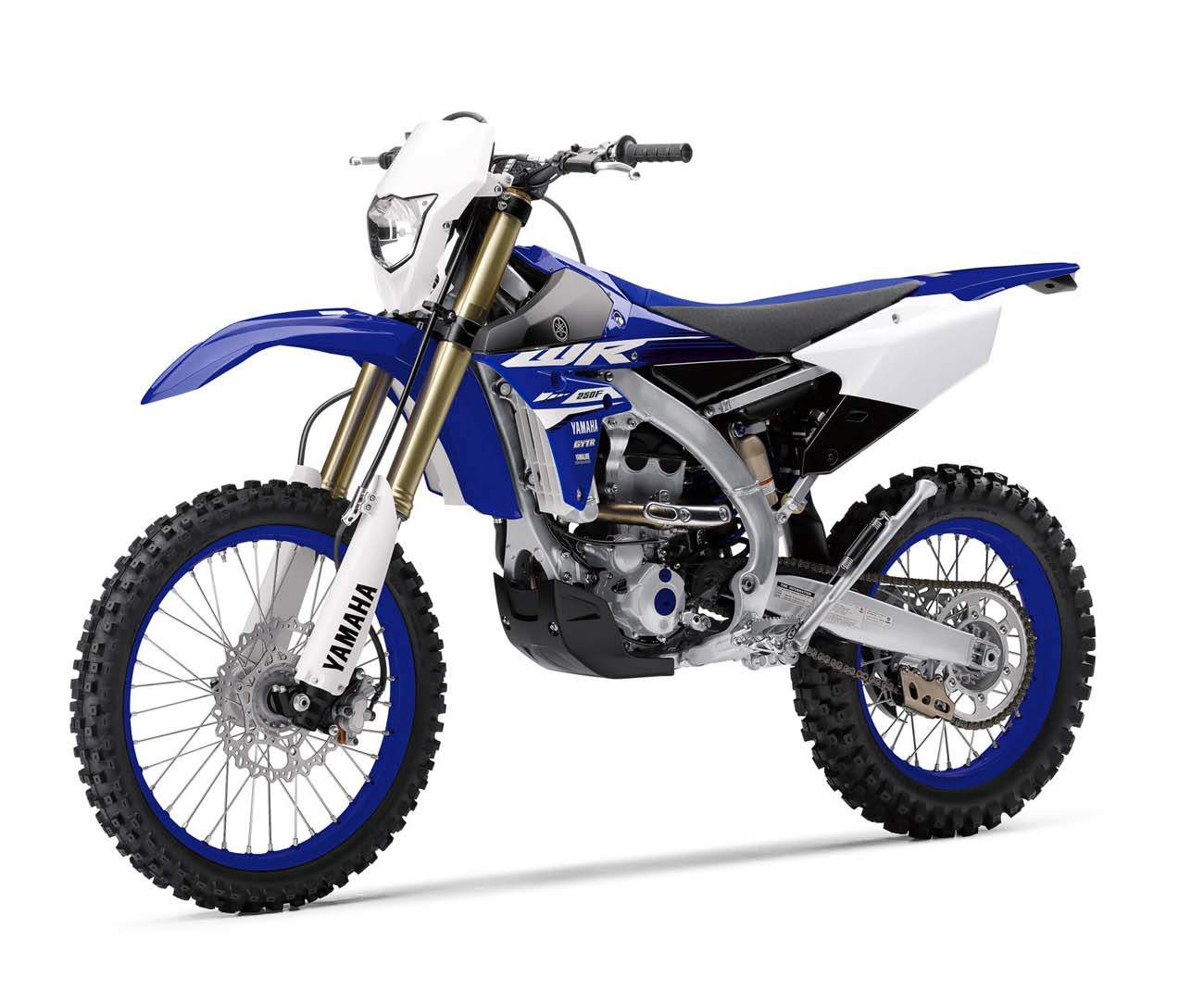

Yamaha WR 250F is produced in 2018-19. Engine is Four stroke, single cylinder, DOHC, 4 valve Titanium, displacement 249 cc / 15.2 cu-in Yamaha WR 250F wet weight is 117 kg / 258 lbs. Yamaha WR 250F has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | WR 250F |
| Years: | 2018-19 |
| Engine: | Four stroke, single cylinder, DOHC, 4 valve Titanium |
| Capacity: | 249 cc / 15.2 cu-in |
| Bore x Stroke: | 77 x 53.6 mm |
| Cooling System: | Liquid cooled, |
| Compression Ratio: | 13.5:1 |
| Lubrication: | Dry sump |
| Induction: | 44 mm Keihin throttle body F.I. |
| Ignition: | TCI: Transistor Controlled Ignition |
| Starting: | Electric / Kick |
| Clutch: | Wet, multiple discs, cable operated |
| Transmission: | 5 Speed Wide ratio |
| Final Drive: | #520 Chain |
| Primary Ratio: | 3.353 (57/17) |
| Secondary Ratio: | 3.923 (51/13) |
| Gear Ratio: | 1st 2.385 (31/13) 2nd 1.813 (29/16) 3rd 1.444 (26/18) 4th 1.143 (24/21) 5th 0.957 (22/23) 6th 0.815 (22/27) |
| Frame: | Aluminium Bilateral Beam |
| Front Suspension: | 48 mm inverted fork, Adjustable |
| Front Wheel Travel: | 310 mm / 12.2 in |
| Rear Suspension: | KYB Fully adjustable single shock |
| Rear Wheel Travel: | 315 mm / 12.4 in |
| Front Brakes: | Single 270mm floating wave disc 2 piston caliper |
| Rear Brakes: | Single 245mm disc 1 piston caliper |
| Front Tyre: | 80/100-21 |
| Rear Tyre: | 100/100-18 |
| Rake: | 27.0° |
| Trail: | 115 mm / 4.5 in |
| Dimensions: | Length 2165 mm / 85.2 in Width 825 mm / 32.5 in Height 1280 mm / 50.4 in |
| Wheelbase: | 1,465 mm / 57.7 in |
| Seat Height: | 965 mm / 38.0 in |
| Ground Clearance: | 325 mm / 12.8 in |
| Wet Weight: | 117 kg / 258 lbs |
| Fuel Capacity: | 7.5 Liters / 2.0 gal |
