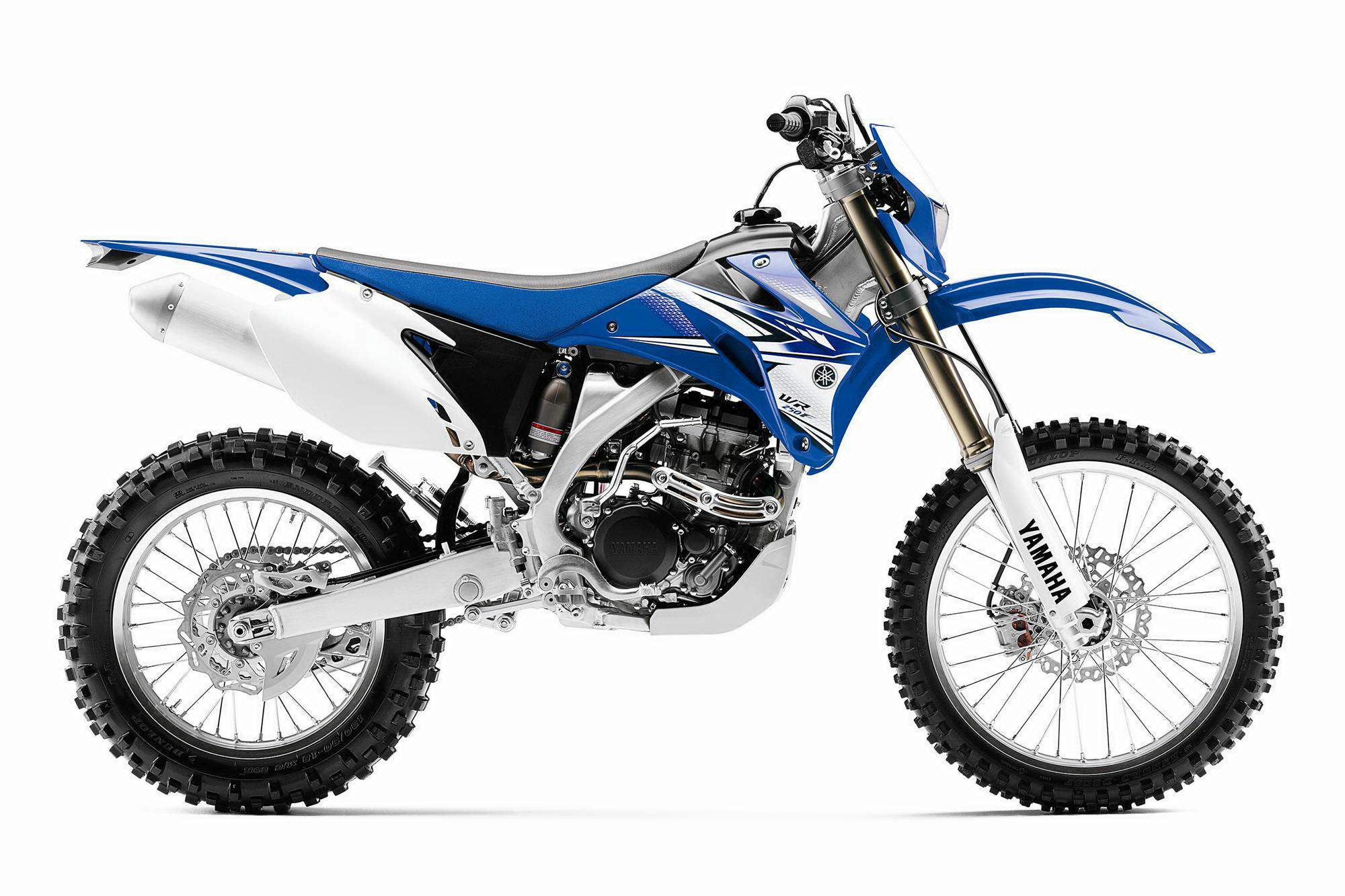

Yamaha WR 250F (2011-12) technical specifications
Yamaha WR 250F is produced in 2011-12. Engine is Four stroke, single cylinder, DOHC, 5 valve, displacement 249 cc / 15.2 cu-in Yamaha WR 250F weighs 106 kg / 233.2 lbs. Yamaha WR 250F has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | WR 250F |
| Years: | 2011-12 |
| Engine: | Four stroke, single cylinder, DOHC, 5 valve |
| Capacity: | 249 cc / 15.2 cu-in |
| Bore x Stroke: | 77 x 53.6 mm |
| Cooling System: | Liquid cooled, |
| Compression Ratio: | 12.5:1 |
| Lubrication: | Dry sump |
| Induction: | Keihin FCR-MX37 flat-slide w/throttle position sensor) |
| Ignition: | Digital CDI |
| Starting: | Electric / Kick |
| Clutch: | Wet, multiple discs, cable operated |
| Transmission: | 5 Speed |
| Final Drive: | #520 Chain |
| Frame: | Aluminium Bilateral Beam |
| Front Suspension: | 48mm Fully adjustable inverted forks |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | Fully adjustable link Monocross |
| Rear Wheel Travel: | 305 mm / 12.0 in |
| Front Brakes: | Single 250mm disc 2 piston caliper |
| Rear Brakes: | Single 240mm disc 1 piston caliper |
| Front Tyre: | 80/100-21 |
| Rear Tyre: | 100/100-18 |
| Rake: | 27.0° |
| Trail: | 115 mm / 4.5 in |
| Dimensions: | Height 1275 mm / 50.2 in Width 826 mm / 32.5 in Length 2315 mm / 91.1 in |
| Wheelbase: | 1475 mm / 58.1 in |
| Seat Height: | 980 mm / 38.6 in |
| Ground Clearance: | 335 mm / 13.2 in |
| Dry Weight: | 106 kg / 233.2 lbs |
| Wet Weight: | 129.0 kg / 284.4 lbs |
| Fuel Capacity: | 8 Liters / 2.1 gal |
