Yamaha WR 125X (2011-12) technical specifications

Yamaha WR 125X technical specifications

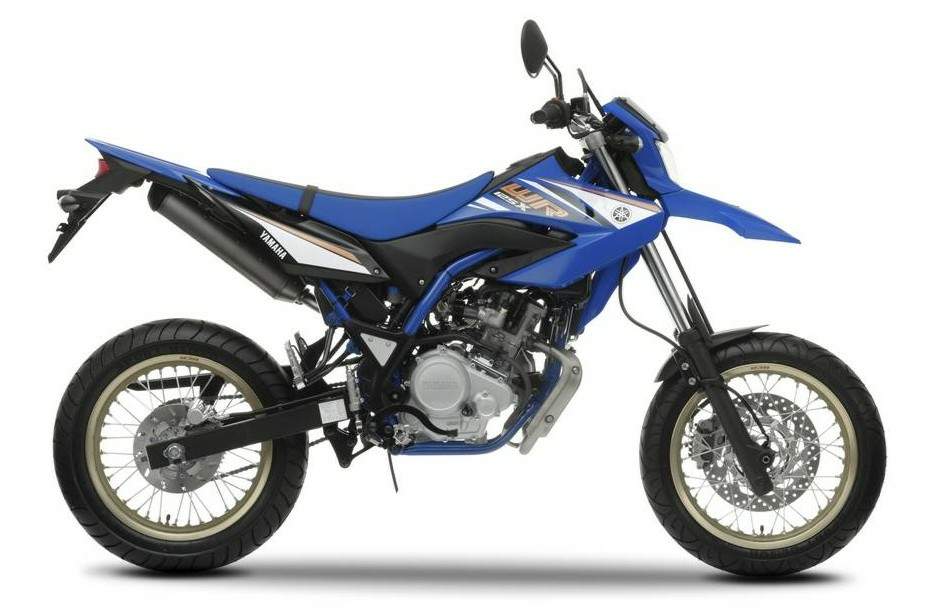

Yamaha WR 125X is produced in 2011-12. Engine is Four stroke, forward inclined single cylinder, DOHC, 4 valve, displacement 124.7 , produces power 10.9 kW / 15 hp @ 9000 rpm and 12.2 Nm / 1.24 kgf-m @ 6000 rpm. Yamaha WR 125X wet weight is 137 kg / 302 lbs. Yamaha WR 125X has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: WR 125X
Years: 2011-12
Engine: Four stroke, forward inclined single cylinder, DOHC, 4 valve
Capacity: 124.7
Bore x Stroke: 52 x 58.6 mm
Cooling System: LLiquid cooled
Compression Ratio: 11.2:1
Lubricatin: Wet sump
Induction: Fuel injection
Ignition: TCI
Starting: Electric
Max Power: 10.9 kW / 15 hp @ 9000 rpm
Max Torque: 12.2 Nm / 1.24 kgf-m @ 6000 rpm
Clutch: Wet, multiple coil spring
Transmission: 5 Speed
Final Drive: Chain
Gear Ratio: 1st 70/30 (2.333) 2nd 46/15 (3.067) 3rd 33/16 (2.063) 4th 30/19 (1.579) 5th 34/27 (1.259) 6th 25/24 (1.042)
Frame: Steel double cradle
Front Suspension: Telescopic fork
Front Wheel Travel: 210 mm / 8.2 in
Rear Suspension: Swinging arm link suspension
Rear Wheel Travel: 230 ,mm / 9.0 in
Front Brakes: Single 298mm disc
Rear Brakes: Single 220mm disc
Front Tyre: 110/70-17
Rear Tyre: 140/70-17
Rake: 25°
Trail: 79 mm / 3.1 in
Wheelbase: 1430 mm / 56.3 in
Seat Height: 920 mm / 36.2 in
Wet Weight: 137 kg / 302 lbs
Fuel Capacity: 8.5 Litres / 2..2 US gal
