Yamaha WR 125R (2009-10) technical specifications

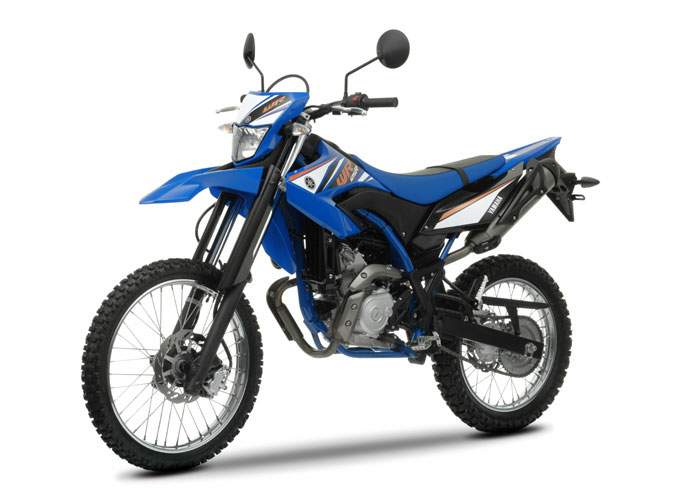

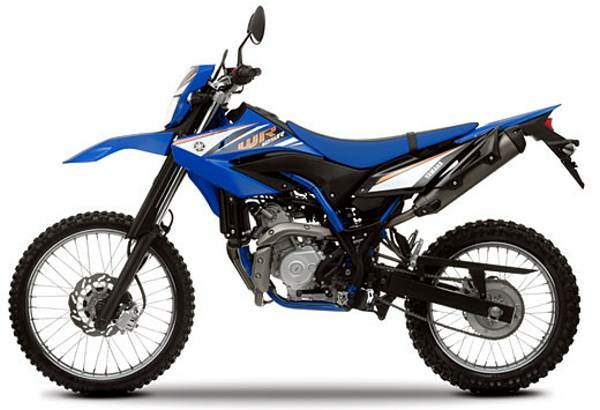

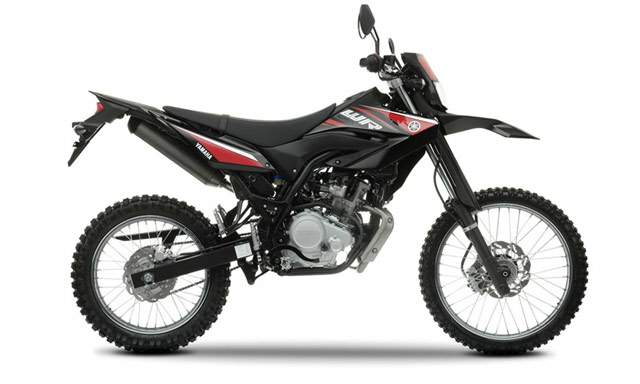

Yamaha WR 125R is produced in 2009-10. Engine is Four stroke, forward inclined single cylinder, DOHC, 4 valve, displacement 124.7 , produces power 10.9 kW / 15 hp @ 9000 rpm and 12.2 Nm / 1.24 kgf-m @ 6000 rpm. Yamaha WR 125R wet weight is 133 kg / 293.2 lbs. Yamaha WR 125R has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | WR 125R |
| Years: | 2009-10 |
| Engine: | Four stroke, forward inclined single cylinder, DOHC, 4 valve |
| Capacity: | 124.7 |
| Bore x Stroke: | 52 x 58.6 mm |
| Cooling System: | LLiquid cooled |
| Compression Ratio: | 11.2:1 |
| Lubricatin: | Wet sump |
| Induction: | Fuel injection |
| Ignition: | TCI |
| Starting: | Electric |
| Max Power: | 10.9 kW / 15 hp @ 9000 rpm |
| Max Torque: | 12.2 Nm / 1.24 kgf-m @ 6000 rpm |
| Clutch: | Wet, multiple coil spring |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st 70/30 (2.333) 2nd 46/15 (3.067) 3rd 33/16 (2.063) 4th 30/19 (1.579) 5th 34/27 (1.259) 6th 25/24 (1.042) |
| Frame: | Steel double cradle |
| Front Suspension: | Telescopic fork |
| Front Wheel Travel: | 210 mm / 8.2 in |
| Rear Suspension: | Swinging arm link suspension |
| Rear Wheel Travel: | 230 ,mm / 9.0 in |
| Front Brakes: | Single 248mm disc |
| Rear Brakes: | Single 220mm disc |
| Front Tyre: | 80/90-21 |
| Rear Tyre: | 110/80-18 |
| Rake: | 27° |
| Trail: | 107 mm / 4.2 in |
| Wheelbase: | 1430 mm / 56.3 in |
| Seat Height: | 930 mm / 36.6 in |
| Wet Weight: | 133 kg / 293.2 lbs |
| Fuel Capacity: | 8.5 Litres / 2..2 US gal |
