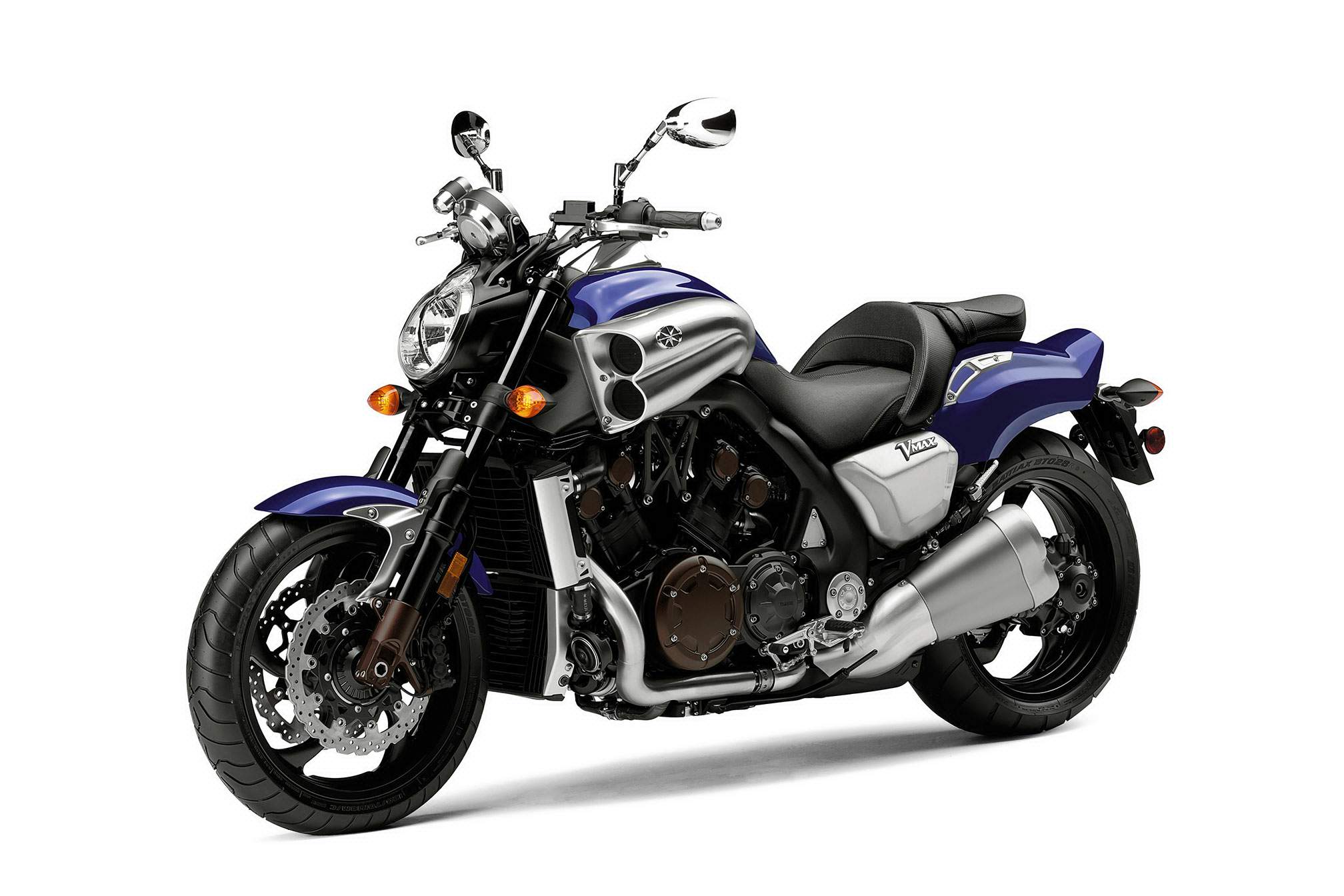

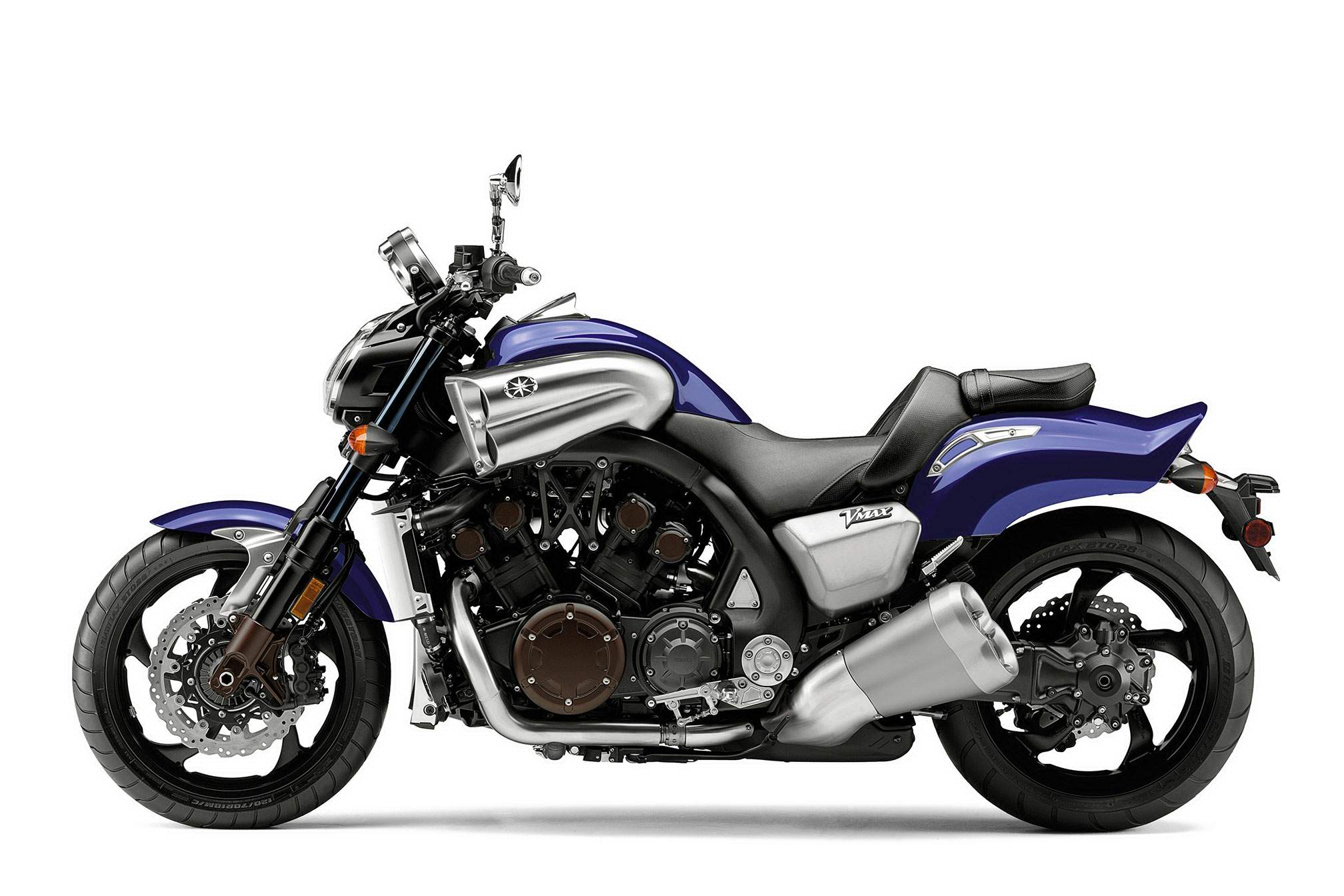

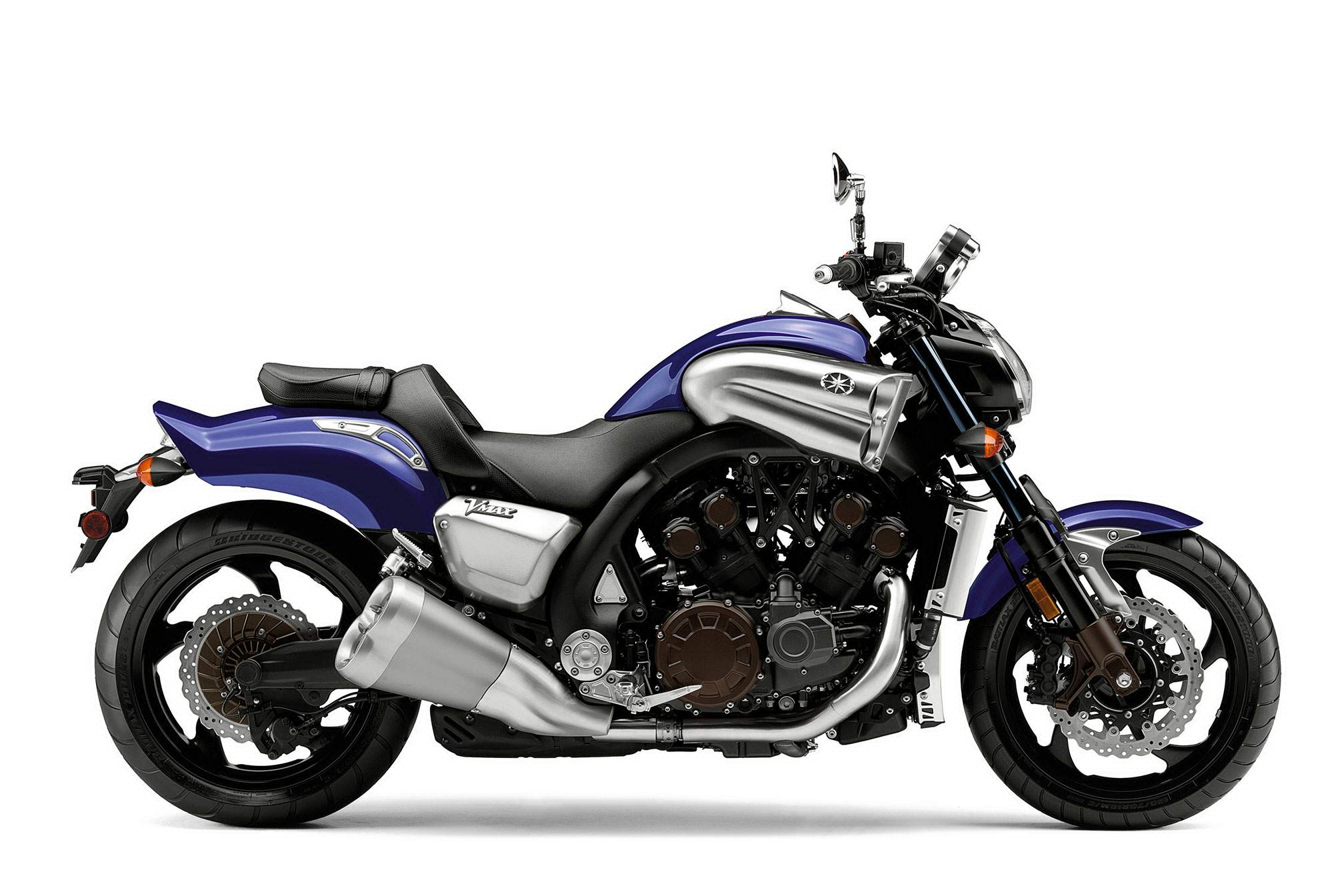

Yamaha VMX V-Max (2016-17) technical specifications
Yamaha VMX V-Max is produced in 2016-17. Engine is Four stroke, V-four, DOHC, 4 valve per cylinder., displacement 1679 cc / 102.4 cu-in , produces power 147.2 kW / 200 hp @ 9000 rpm and 166.8 Nm / 17.0 kgf-m @ 6500 rpm. Yamaha VMX V-Max top speed is 222.4 km/h / 138.1 mph. Yamaha VMX V-Max wet weight is 310 kg / 683 lbs. Yamaha VMX V-Max has 3 photos.
Technical specifications
+ Add to 'Compare list'Model: | VMX V-Max |
Years: | 2016-17 |
Engine: | Four stroke, V-four, DOHC, 4 valve per cylinder. |
Capacity: | 1679 cc / 102.4 cu-in |
Bore x Stroke: | 90 x 66 mm |
Cooling System: | Liquid cooled |
Compression Ratio: | 11.3:1 |
Lubrication: | Wet sump |
Induction: | Mikuni 48mm fuel injection |
Ignition: | TCI |
Starting: | Electric |
Max Power: | 147.2 kW / 200 hp @ 9000 rpm |
Max Torque: | 166.8 Nm / 17.0 kgf-m @ 6500 rpm |
Clutch: | Wet, multiple-disc diaphragm spring |
Transmission: | 5 Speed with slipper clutch |
Final Drive: | Shaft |
Gear Ratio: | 1st 2.375 2nd 1.810 3rd 1.400 4th 1.115 5th 0.935 |
Frame: | Aluminium, Diamond-shaped |
Front Suspension: | 52mm Telescopic forks |
Front Wheel Travel: | 120 mm / 4.7 in |
Rear Suspension: | Swingarm Link-type suspension |
Rear Wheel Travel: | 110 mm / 4.3 in |
Front Brakes: | 2x 320mm discs |
Rear Brakes: | Single 280mm disc |
Front Tyre: | 120/70 R18 |
Rear Tyre: | 200/50 R18 |
Rake: | 31° |
Trail: | 148mm / 5.8 in |
Dimensions: | Length 2395 mm / 94.3 in Width 820 mm / 32.3 in Height 1190 mm / 46.9 in |
Wheelbase: | 1700 mm / 66.9 in |
Seat Height: | 775 mm / 30.5 in |
Ground Clearance: | 140 mm / 5.5 in |
Wet Weight: | 310 kg / 683 lbs |
Fuel Capacity: | 15 Litres / 4.0 US gal |
Consumption Average: | 15.6 km/lit |
Standing ¼ Mile: | 10.9 sec |
Standing 0 - 100km: | 2.7 sec |
Standing 0 - 150km: | 4.9 sec |
Standing 0 - 200km: | 8.3 sec |
Acceleration 60-100 km/h: | 3.1 sec |
Acceleration 60-140 km/h: | 6.4 sec |
Acceleration 100-140 km/h: | 3.3 sec |
Acceleration 140-180 km/h: | 3.2 sec |
Top Speed: | 222.4 km/h / 138.1 mph |
