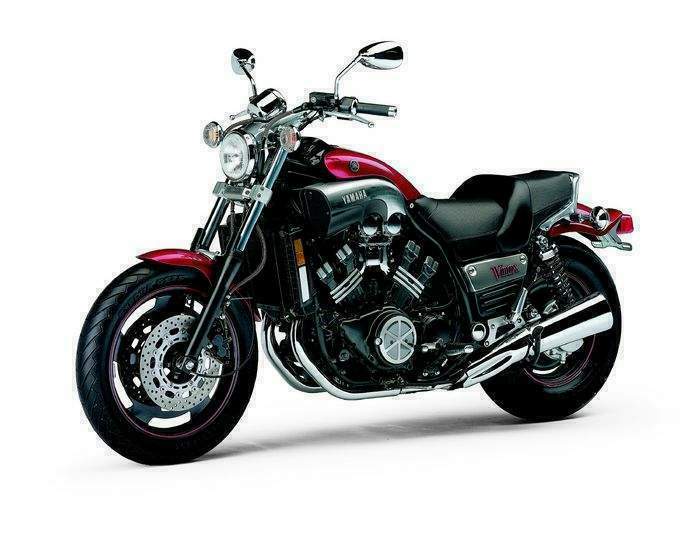

Yamaha V-Max (1990-92) technical specifications

Yamaha V-Max is produced in 1990-92. Engine is Four stroke, V-four, DOHC, 4 valve per cylinder., displacement 1198 cc / 73.1 cu-in , produces power 102 hp / 74.4 kW @ 8000 rpm and 114.7 Nm / 86.4 lb-ft @ 6000 rpm. Yamaha V-Max top speed is 216.7 km/h. Yamaha V-Max weighs 262 kg / 577.6 lbs. Yamaha V-Max has 3 photos.

Technical specifications

+ Add to 'Compare list'

Model:	V-Max
Years:	1990-92
Engine:	Four stroke, V-four, DOHC, 4 valve per cylinder.
Capacity:	1198 cc / 73.1 cu-in
Bore x Stroke:	76 х 66 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.5:1
Induction:	4x 35mm Mikuni BDS35 carburetor
Ignition:	CDI
Starting:	Electric
Max Power:	102 hp / 74.4 kW @ 8000 rpm
Max Power Rear Tyre:	97.88 @ 7700 rpm
Max Torque:	114.7 Nm / 86.4 lb-ft @ 6000 rpm
Clutch:	Wet, multi disc
Transmission:	5 Speed
Final Drive:	Shaft
Frame:	Double cradle steel tube
Front Suspension:	40mm Kayaba forks, Air pressure
Front Wheel Travel:	140 mm / 5.5 in
Rear Suspension:	Dual Kayaba shocks, adjustable for preload damping.
Rear Wheel Travel:	100 mm / 3.9in
Front Brakes:	2x 298mm discs 2 piston calipers
Rear Brakes:	Single 282mm disc 2 piston caliper
Front Tyre:	110/90-18
Rear Tyre:	150/90-15
Rake:	29°
Trail:	119 mm / 4.7 in
Wheelbase:	1590 mm / 65.6 in
Seat height:	765 mm / 30.1 in
Ground Clearance:	145 mm / 5.7 in
Dry Weight:	262 kg / 577.6 lbs
Fuel Capacity:	15 Litres / 3.9 US gal
Consumption Average:	13.1 km/lit
Braking 60 - 0 / 100 - 0:	13.2 m / 39.0 m
Standing ¼ Mile:	11.7 sec / 185.8 km/h
Top Speed:	216.7 km/h
