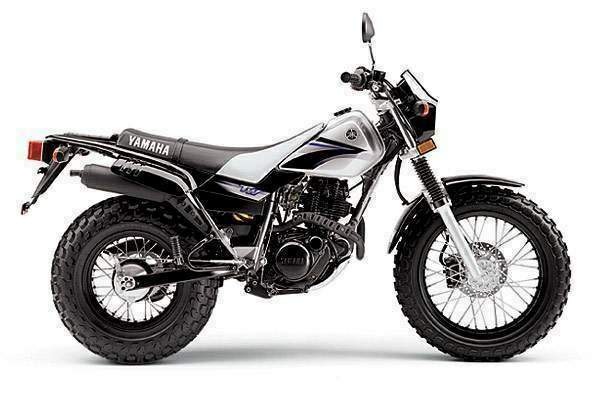

Yamaha TW 200 (2006-08) technical specifications
Yamaha TW 200 is produced in 2006-08. Engine is Four stroke, single cylinder, SOHC, 2-valve, displacement 196 cc / 11.96 cub in. , produces power 16 hp / 11.7 kW @ 8000 rpm and 15 Nm / 11.1 lb-ft @ 7000 rpm. Yamaha TW 200 wet weight is 126 kg / 278 lbs. Yamaha TW 200 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TW 200 |
| Years: | 2006-08 |
| Engine: | Four stroke, single cylinder, SOHC, 2-valve |
| Capacity: | 196 cc / 11.96 cub in. |
| Bore x Stroke: | 67 x 55.7 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.5:1 |
| Fuel system: | Mikuni 28 mm carburetor |
| Ignition: | CDI |
| Starting: | Electric |
| Max Power: | 16 hp / 11.7 kW @ 8000 rpm |
| Max Torque: | 15 Nm / 11.1 lb-ft @ 7000 rpm |
| Clutch: | Multi-plate wet clutch |
| Transmission: | 5-Speed, constant mesh |
| Final Drive: | Chain |
| Front Suspension: | 33mm Telescopic fork |
| Front wheel travel: | 160 mm / 6.3 in. |
| Rear Suspension: | Single shock |
| Rear wheel travel: | 150 mm / 5.9 in. |
| Front Brakes: | Single 220mm disc |
| Rear Brakes: | 110mm Drum |
| Front Tyre: | 130/80 -18 in |
| Rear Tyre: | 180/80 -14 in |
| Dimensions: | Length 2090 mm / 82.3 in Width 820 mm / 32.3 in Height 1120 mm / 44.1 in |
| Wheelbase: | 1326 mm / 52.2 in |
| Seat Height: | 790 mm / 31.1 in |
| Ground Clearance: | 264 mm / 10.4 in |
| Wet Weight: | 126 kg / 278 lbs |
| Fuel Capacity: | 6.8 Litres / 1.7 US gal |
