Yamaha TW 125 (2001-03) technical specifications

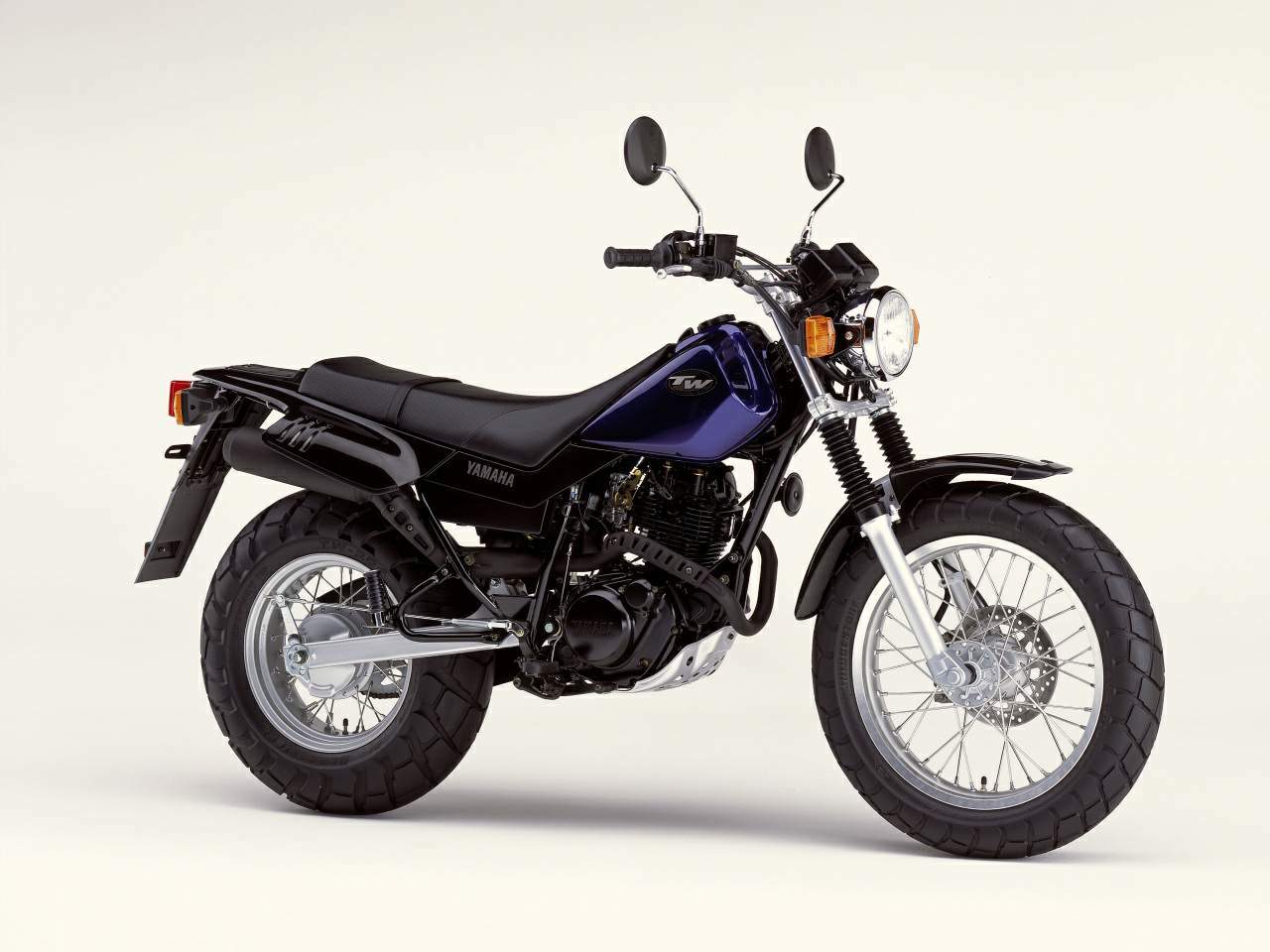

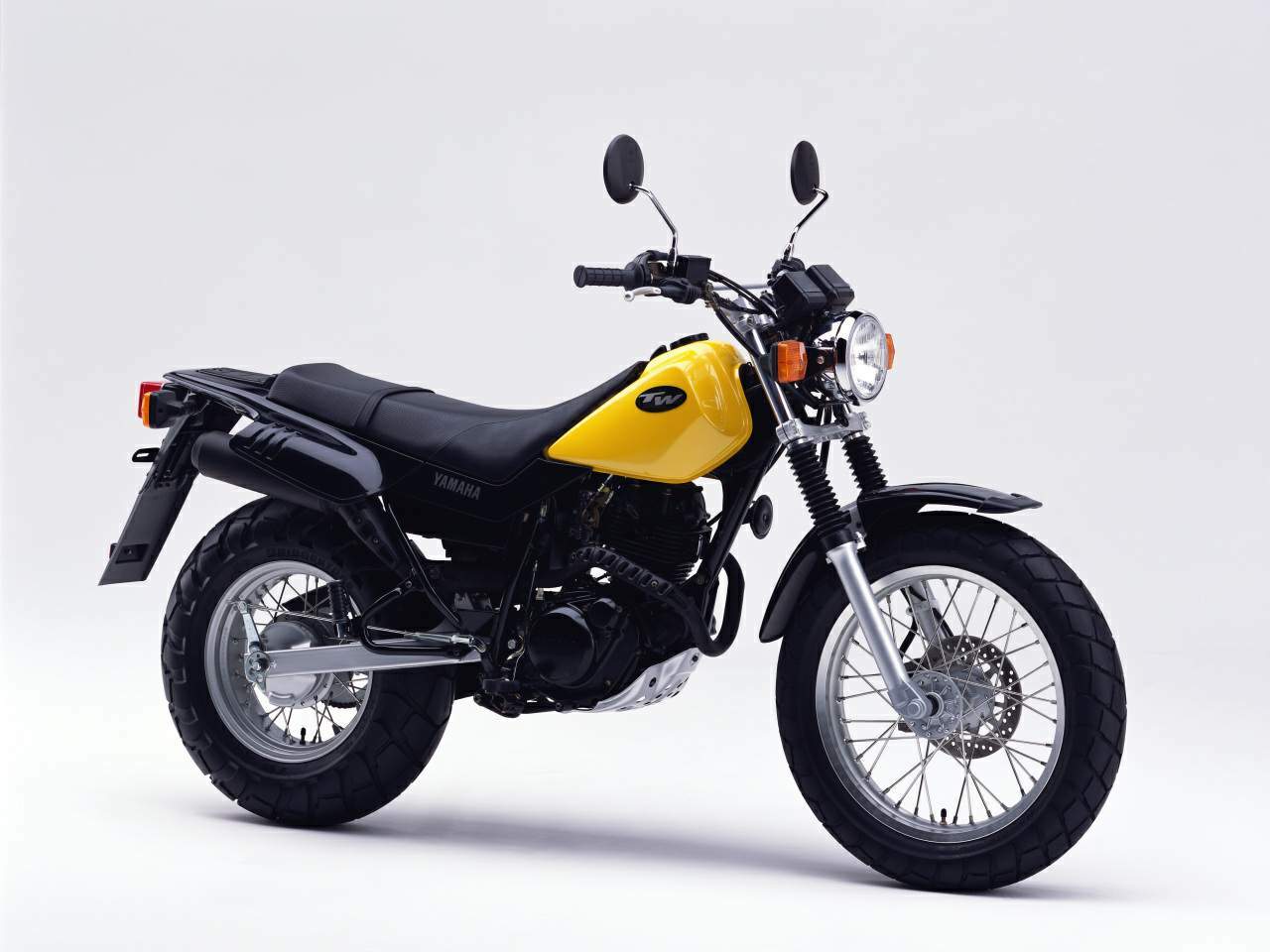

Yamaha TW 125 is produced in 2001-03. Engine is Four stroke. single cylinder., displacement 124 cc / 7.6 cu-in , produces power 11.8 hp / 8.6 kW @ 9000 rpm and 9.7Nm / 7.2 lb-ft @ 8000m rpm. Yamaha TW 125 weighs 106 kg / 260 lbs. Yamaha TW 125 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TW 125 |
| Years: | 2001-03 |
| Engine: | Four stroke. single cylinder. |
| Capacity: | 124 cc / 7.6 cu-in |
| Bore x Stroke: | 57 x 48.8 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Induction: | TEIKEI Y24P/1 |
| Ignition: | CDI |
| Starting: | Electric |
| Max Power: | 11.8 hp / 8.6 kW @ 9000 rpm |
| Max Torque: | 9.7Nm / 7.2 lb-ft @ 8000m rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Front Wheel Travel: | 160 mm / 6.2 in |
| Rear Suspension: | Monoshock |
| Rear Wheel Trael: | 150 mm / 5.9 in |
| Front Brakes: | Single 220mm disc |
| Rear Brakes: | 130mm Drum |
| Front Tyre: | 130/80-16 |
| Rear Tyre: | 180/80-14 |
| Wheelbase: | 1,280 mm / 50.4 in |
| Seat Height: | 805 mm / 31.7 in |
| Dry Weight: | 106 kg / 260 lbs |
| Fuel Capacity: | 7 Litres / 1.9 US gal |
