Technical specifications
|
| Model: |

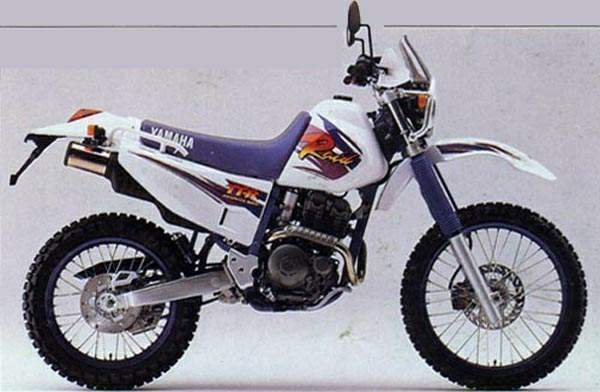

TT-R 250 Raid |
| Years: |
1996 |
|
Engine:
|
Four stroke, single cylinder, DOHC, 4-valve per cylinder.
|
|
Capacity:
|
249 cc / 15.1 cu-in
|
|
Cooling System:
|
Air-cooled
|
|
Bore x Stroke:
|
73 x 59.6 mm
|
|
Compression Ratio:
|
10.3:1
|
|
Induction:
|
TEIKEI Y30P carb
|
|
Ignition:
|
Digital CDI
|
|
Starting:
|
Electric
|
|
Max Power:
|
28 hp / 20.6 kW @ 8500 rpm
|
|
Max Torque:
|
2.8 kgf-m / 27.1 Nm / 20.0 lb-ft @ 7000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Telescopic forks, Coil air spring oil damper
|
|
Front Wheel Travel:
|
280 mm / 11.02 in
|
|
Rear Suspension:
|
Monocross, Single shock, link-type, w/adjustable preload
|
|
Rear Wheel Travel:
|
280 mm / 11.02 in
|
|
Front Brakes:
|
Single 245mm disc
|
|
Rear Brakes:
|
Single 220mm disc
|
|
Front Tyre:
|
3.00-21
|
|
Rear Tyre:
|
4.60-18
|
|
Dimensions:
|
Height 1260 mm / 49.6 inc Length 2,096 mm / 82.5 in Width 836 mm / 32.9 in
|
|
Wheelbase:
|
1405 mm / 55.3 in
|
|
Seat height:
|
914 mm / 36.0 in
|
|
Ground Clearance:
|
305 mm / 12 /in
|
|
Dry Weight:
|
113 kg / 249 lbs
|
|
Fuel Capacity:
|
10.2 Litres / 2.7 US gal
|
