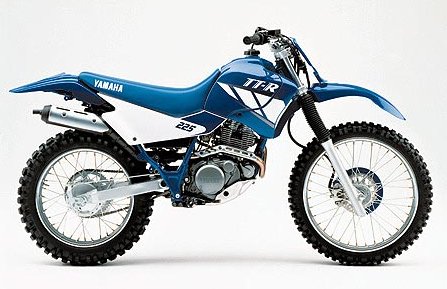

Yamaha TT-R 225 (2001-02) technical specifications
Yamaha TT-R 225 is produced in 2001-02. Engine is Four stroke, single cylinder, SOHC, 2 valve, displacement 223 cc / 13.6 cu-in , produces power NA and NA. Yamaha TT-R 225 weighs NA. Yamaha TT-R 225 has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TT-R 225 |
| Years: | 2001-02 |
| Engine: | Four stroke, single cylinder, SOHC, 2 valve |
| Capacity: | 223 cc / 13.6 cu-in |
| Bore x Stroke: | 70 x 58 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.5: |
| Induction: | 26mm Teikei carburetor |
| Ignition: | CDI |
| Starting: | Electric |
| Max Power: | NA |
| Max Torque: | NA |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Front Wheel Travel: | 229 mm / 9.0 in |
| Rear Suspension: | Link Type single shock |
| Rear Wheel Travel: | 193 mm / 7.6 in |
| Front Brakes: | Single 229mm disc |
| Rear Brakes: | Drum |
| Front Tyre: | 80/100-21 |
| Rear Tyre: | 100/100-18 |
| Wheelbase: | 1372 mm / 54 in |
| Seat Height: | 870 mm / 34.2 in |
| Ground Clearance: | 290 mm / 11.4 in |
| Dry Weight: | NA |
| Fuel Capacity: | 10.2 Litres / 2.7 US gal |
