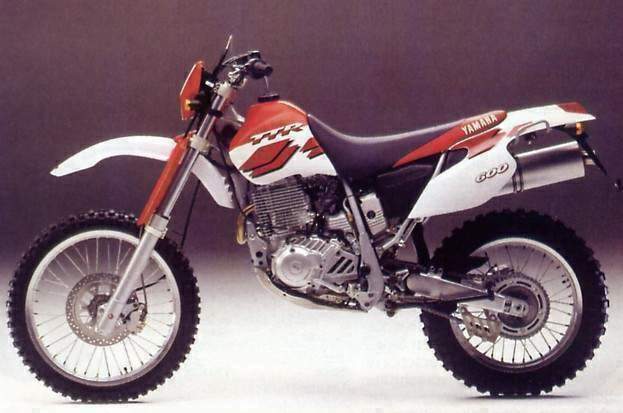

Technical specifications
|
| Model: |
TT 600R |
| Years: |
1998-99 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 Valve
|
|
Capacity:
|
595 cc / 36.5 cu-in
|
|
Bore x Stroke:
|
95 x 84 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
8.5 :1
|
|
Lubrication:
|
Dry sump
|
|
Induction:
|
26mm Dual stage Teikei Y26PV carburetor26mm Dual stage Teikei Y26PV carburetor
|
|
Ignition:
|
CDI
|
|
Starting:
|
Kick
|
|
Max Power:
|
42 hp / 31.5 kW @ 6500 rpm
|
|
Max Torque:
|
50 Nm / 36.8 lb-ft @ 5000 rpm
|
|
Frame:
|
Steel
|
|
Front Suspension:
|
Telescopic forks
|
|
Front Wheel Travel:
|
280 mm / 10.6 in
|
|
Rear Suspension:
|
Alloy swinging arm single shock with adjustable dampers
|
|
Rear Wheel Travel:
|
280 mm / 10.6 in
|
|
Front Brakes:
|
Single 267mm disc
|
|
Rear Brakes:
|
Single 220mm disc
|
|
Front Tyre:
|
90/90-21
|
|
Rear Tyre:
|
130/90-18
|
|
Rake:
|
27°
|
|
Trail:
|
114 mm / 4.4 in
|
|
Dimensions:
|
Length 2225 mm / 87.5 in Width 845 mm / 33.2 in Heigth 1225 mm / 48.2 in
|
|
Wheelbase:
|
1480 mm / 58.2 in
|
|
Seat Height:
|
945 mm / 37.2 in
|
|
Dry Weight:
|
131 kg / 288.8 lbs
|
|
Fuel Capacity:
|
10 Litres / 2.6 US gal
|
