Technical specifications
|
| Model: |

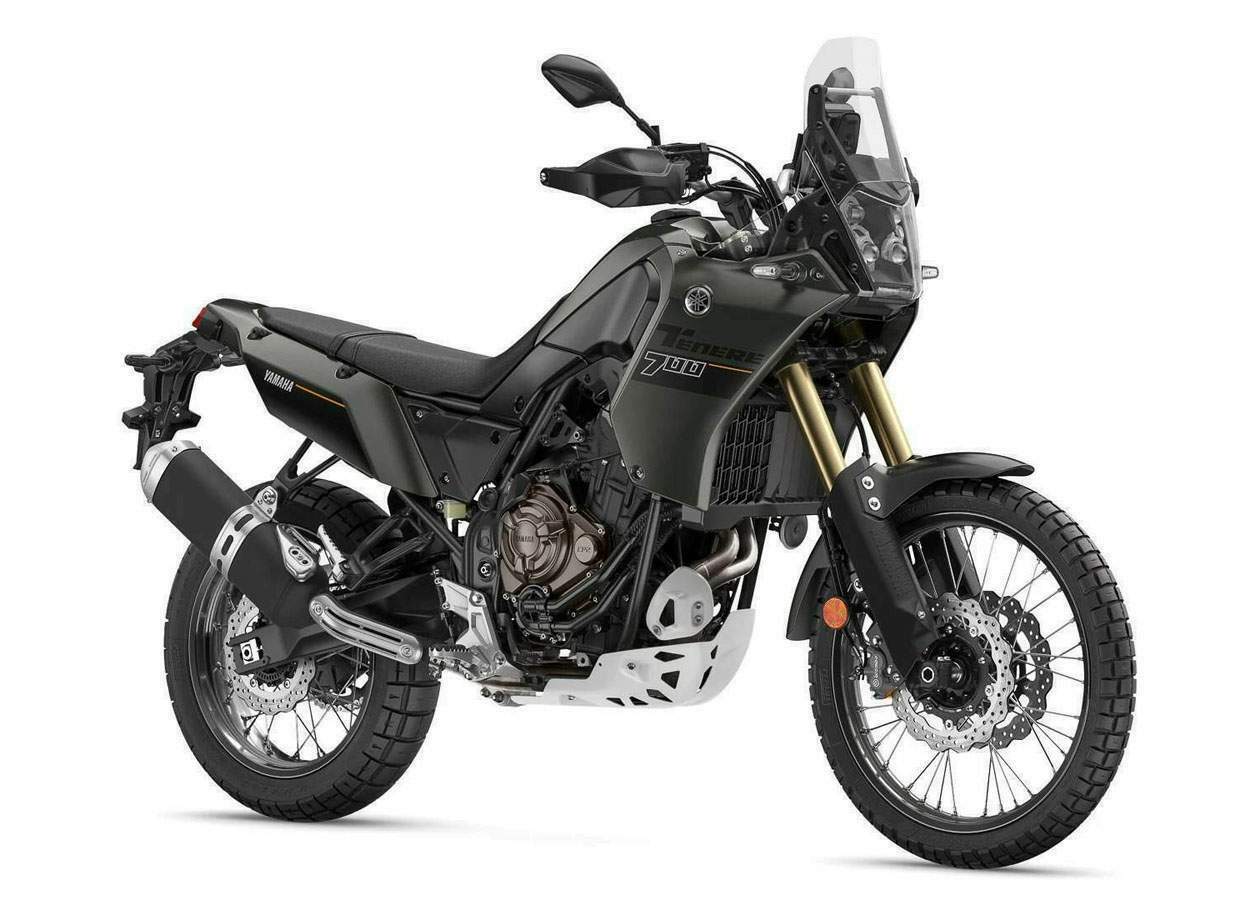

Ténéré 700 |
| Years: |
2023 |
|
Engine:
|
Four stroke, crossplane crankshaft parallel twin cylinder, DOHC, 4 valve per cylinder
|
|
Capacity:
|
689 cc / 42.04 cu-in
|
|
Bore x Stroke:
|
80 x 68.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.5:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Electronic Fuel Injection
|
|
Emission:
|
Euro 5
|
|
Ignition:
|
TCI - Transistor Controlled Ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
73.4 hp / 54 kW @ 8750 rpm
|
|
Max Torque:
|
67 Nm / 49.4 lb-ft @ 6500 rpm
|
|
Transmission:
|
Constant Mesh, 6 Speed
|
|
Final Drive:
|
Chain
|
|
Clutch:
|
Wet multiplate
|
|
Frame:
|
Double cradle steel tube chassis
|
|
Front Suspension:
|
43mm Upside down telescopic fork, fully adjustable
|
|
Front Wheel Travel:
|
210 mm / 8.3 in
|
|
Rear Suspension:
|
Single shock, adjustable preload (with remote adjuster) and rebound damping
|
|
Rear Wheel Travel:
|
200 mm / 7.9 in
|
|
Front Brakes:
|
2x 282mm Hydraulic discs
|
|
Rear Brakes:
|
Single 245mm Hydraulic disc
|
|
ABS:
|
Standard
|
|
Front Tyre:
|
90/90 R21 M/C 54V M+S Spoke wheels with Pirelli Scorpion Rally STR
|
|
Rear Tyre:
|
150/70 R18 M/C 70V M+S Spoke wheels with Pirelli Scorpion Rally STR
|
|
Rake:
|
27°
|
|
Trail:
|
104 mm / 4.1 in
|
|
Dimensions:
|
Length 2370 mm / 93.3 in Width 905 mm / 35.6 in Height 1455 mm / 57.3 in
|
|
Wheel base:
|
1595 mm / 62.8 in
|
|
Seat Height:
|
875 mm / 34.4 in
|
|
Ground Clearance:
|
240 mm / 9.4 in
|
|
Wet Weight:
|
204 kg / 449.7 lbs
|
|
Fuel Capacity:
|
16 Litres / 4.2 US gal
|
