Technical specifications
|
| Model: |

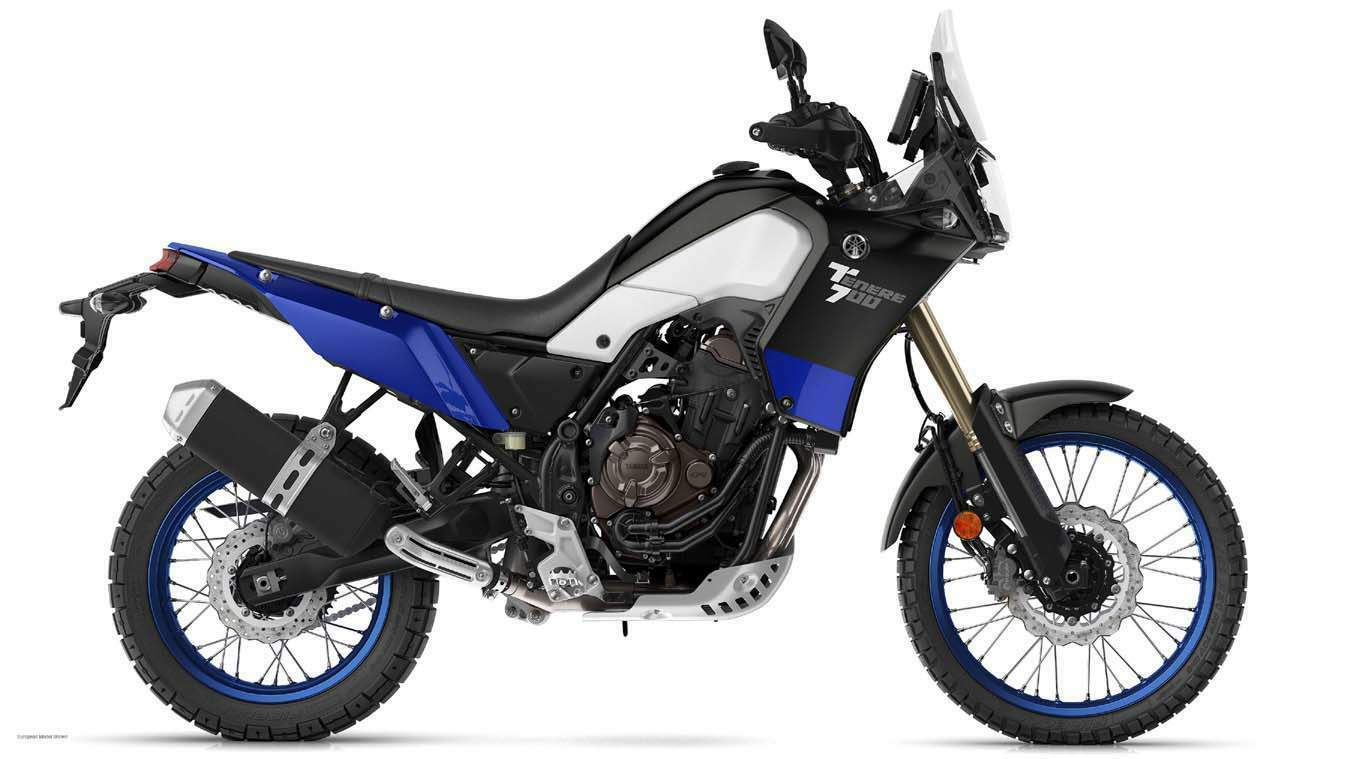

Ténéré 700 |
| Years: |
2019 |
|
Engine:
|
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
|
|
Capacity:
|
689 cc / 42.04 cu-in
|
|
Bore x Stroke:
|
80 x 68.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.5:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Fuel Injection
|
|
Ignition:
|
TCI - Transistor Controlled Ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
72 hp / @ 9000 rpm
|
|
Max Torque:
|
68 Nm / 50 lb-ft @ 6500 rpm
|
|
Transmission:
|
Constant Mesh, 6 Speed
|
|
Final Drive:
|
Chain
|
|
Clutch:
|
Wet multiplate
|
|
Frame:
|
Double cradle steel tube chassis
|
|
Front Suspension:
|
Upside down telescopic fork
|
|
Front Wheel Travel:
|
210 mm / 8.3 in
|
|
Rear Suspension:
|
Swingarm (link suspension)
|
|
Rear Wheel Travel:
|
200 mm / 7.9 in
|
|
Front Brakes:
|
2x 282mm Hydraulic discs, ABS
|
|
Rear Brakes:
|
Single 245mm Hydraulic disc, ABS
|
|
Front Tyre:
|
90/90 R21 M/C 54V M+S Spoke wheels with Pirelli Scorpion Rally STR
|
|
Rear Tyre:
|
150/70 R18 M/C 70V M+S Spoke wheels with Pirelli Scorpion Rally STR
|
|
Caster Angle:
|
NA
|
|
Trail:
|
NA
|
|
Dimensions:
|
Length 2364 mm / 93.1 in Width 914mm / 36.0 in Height 1455 mm / 57.3 in
|
|
Wheel base:
|
1590 mm / 62.6 in
|
|
Seat Height:
|
879 mm / 34.6 in
|
|
Ground Clearance:
|
239 mm / 9.4 in
|
|
Wet Weight:
|
205 kg / 452 lbs
|
|
Oil Capacity:
|
3.0 Litres / 0.8 US gal
|
|
Fuel Capacity:
|
16 Litres / 4.2 US gal
|
