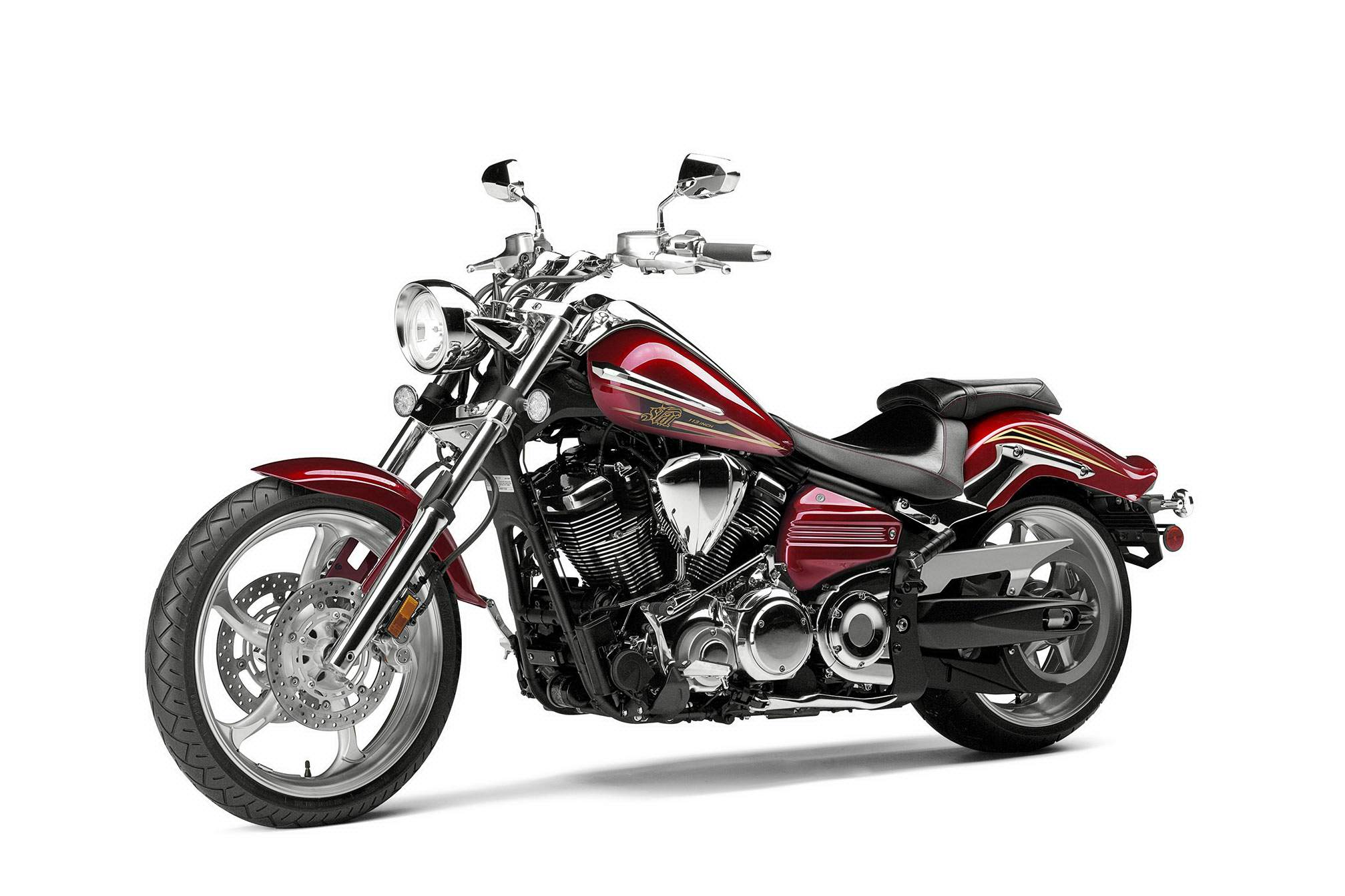

Yamaha Star Raider S / XV 1900 Raider S (2014-15) technical specifications
Yamaha Star Raider S / XV 1900 Raider S is produced in 2014-15. Engine is Four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder., displacement 1854 cc / 113 cu-in , produces power 73,6 kW / 100 hp @ 4.250 rpm and 167,8 Nm / 17,1 kgf-m @ 2.500 rpm. Yamaha Star Raider S / XV 1900 Raider S weighs 331 kg / 728.2 lbs. Yamaha Star Raider S / XV 1900 Raider S has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Star Raider S / XV 1900 Raider S |
| Years: | 2014-15 |
| Engine: | Four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder. |
| Capacity: | 1854 cc / 113 cu-in |
| Bore x Stroke: | 100 x 118 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.5;1 |
| Induction: | Twin-bore fuel injection (FI) |
| Ignition: | Electronic control unit (ECU) |
| Starting: | Electric |
| Max Power: | 73,6 kW / 100 hp @ 4.250 rpm |
| Max Torque: | 167,8 Nm / 17,1 kgf-m @ 2.500 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Frame: | Double cradle |
| Front Suspension: | 46 mm Telescopic fork |
| Front Wheel Travel: | 320 mm / 5.1 in |
| Rear Suspension: | Adjustable link Monocross |
| Rear Wheel Travel: | 88.9 mm / 3.5 in |
| Front Brakes: | 2x 298 mm discs |
| Rear Brakes: | Single 310 mm disc |
| Front Tyre: | 120/70-21 |
| Rear Tyre: | 210/40R18 |
| Dimensions: | Length 2570mm / 101.2 in Width 925 mm / 36.4 in Height 1165 mm / 45.9 in |
| Wheelbase: | 1800 mm / 70.9 in |
| Seat Height: | 695 mm / 27.4 in |
| Ground Clearance: | 145 mm / 5.7 in |
| Dry Weight: | 331 kg / 728.2 lbs |
| Fuel Capacity: | 15.9 Litres / 4.2 US gal |
