Technical specifications
|
| Model: |

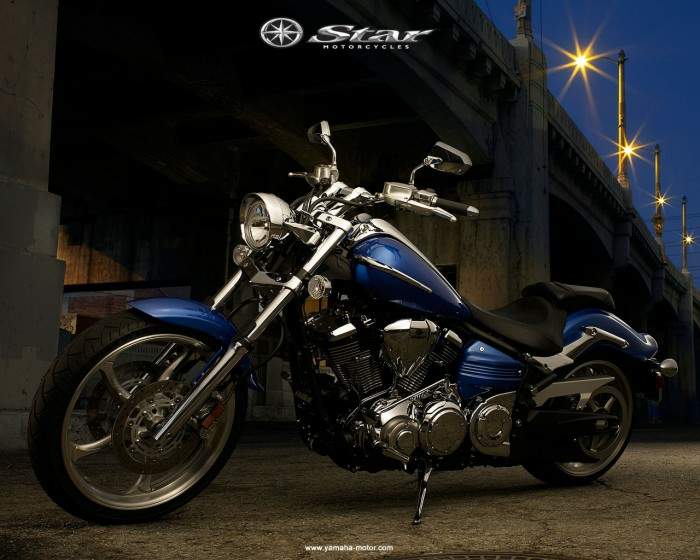

Star Raider S / XV 1900 Raider S |
| Years: |
2010-11 |
|
Engine:
|
Four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder.
|
|
Capacity:
|
1854 cc / 113 cu-in
|
|
Bore x Stroke:
|
100 x 118 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.5;1
|
|
Induction:
|
Twin-bore fuel injection (FI)
|
|
Ignition:
|
Electronic control unit (ECU)
|
|
Starting:
|
Electric
|
|
Max Power:
|
73,6 kW 100 hp @ 4.250 rpm
|
|
Max Torque:
|
167,8 Nm 17,1 kgf-m @ 2.500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Belt
|
|
Frame:
|
Double cradle
|
|
Front Suspension:
|
46 mm Telescopic fork
|
|
Front Wheel Travel:
|
320 mm / 5.1 in
|
|
Rear Suspension:
|
Adjustable link Monocross
|
|
Rear Wheel Travel:
|
88.9 mm / 3.5 in
|
|
Front Brakes:
|
2x 298 mm discs
|
|
Rear Brakes:
|
Single 310 mm disc
|
|
Front Tyre:
|
120/70-21
|
|
Rear Tyre:
|
210/40R18
|
|
Dimensions:
|
Length 2570mm / 101.2 in Width 925 mm / 36.4 in Height 1165 mm / 45.9 in
|
|
Wheelbase:
|
1800 mm / 70.9 in
|
|
Seat Height:
|
695 mm / 27.4 in
|
|
Ground Clearance:
|
145 mm / 5.7 in
|
|
Dry Weight:
|
331 kg / 728.2 lbs
|
|
Fuel Capacity:
|
15.9 Liters / 3.5 gal
|
