Yamaha SRX 250F (1987-90) technical specifications

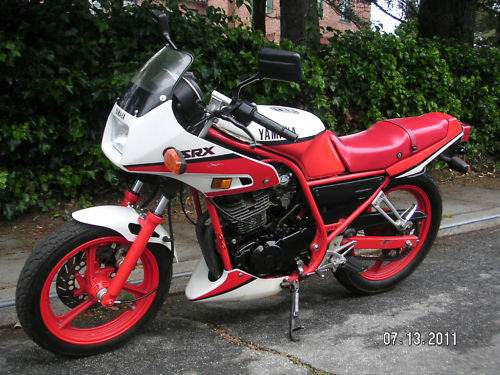

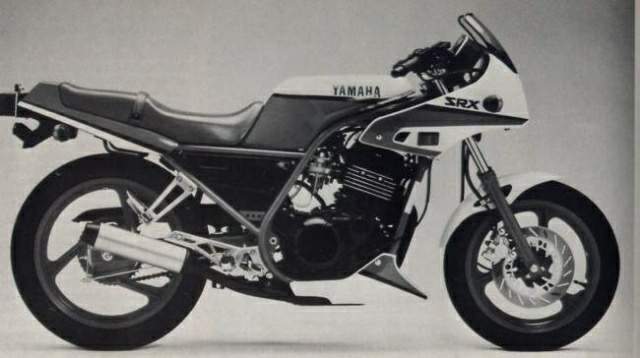

Yamaha SRX 250F is produced in 1987-90. Engine is Four stroke, single cylinder, DOHC, 4 valves, displacement 249 cc / 15.2 cu-in , produces power 32 hp / 23.8 kW @ 10000 rpm and 2.4 kgf-m / 17.3 lb-ft @ 8500 rpm. Yamaha SRX 250F weighs 123 kg / 371 lbs. Yamaha SRX 250F has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | SRX 250F |
| Years: | 1987-90 |
| Engine: | Four stroke, single cylinder, DOHC, 4 valves |
| Capacity: | 249 cc / 15.2 cu-in |
| Bore x Stroke: | 73 х 59.6 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Induction: | Y22PV Teikei carburetor |
| Ignition: | TCI |
| Starting: | Electric |
| Max Power: | 32 hp / 23.8 kW @ 10000 rpm |
| Max Torque: | 2.4 kgf-m / 17.3 lb-ft @ 8500 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Front Suspension: | Centre axle 33mm forks |
| Front Wheel Travel: | 140 mm / 5.9 in |
| Rear Suspension: | Single shock, adjustable spring preload |
| Rear Wheel Travel: | 100 mm / 3.9 in |
| Front Brakes: | Single disc 2 piston caliper |
| Rear Brakes: | Drum |
| Front Tyre: | 90/90-16 |
| Rear Tyre: | 100/90-18 |
| Seat Height: | 780 mm / 30.7 in |
| Dry Weight: | 123 kg / 371 lbs |
| Wet Weight: | 137 kg / 302 lbs |
| Fuel Capacity: | 9 Litres / 2.3 US gal |
