Technical specifications
|
| Model: |

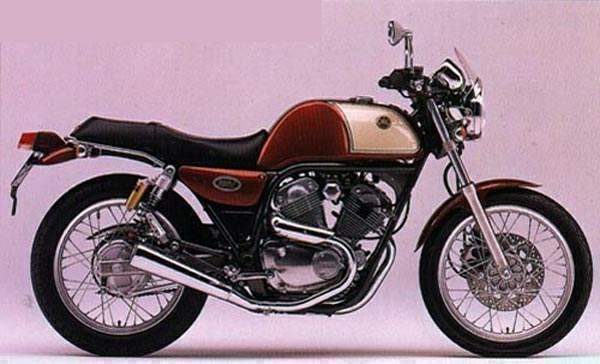

SRV 250S |
| Years: |
1995-96 |
|
Engine:
|
Four stroke, V twin, SOHC
|
|
Capacity:
|
248 cc / 15.0 cu-in
|
|
Cooling System:
|
Air cooled
|
|
Bore x Stroke:
|
49 x 66 mm
|
|
Compression Ratio:
|
9.8 : 1
|
|
Induction:
|
2x Mikuni BDS26 carburetors
|
|
Ignition:
|
T.C.I
|
|
Starting:
|
|
|
Max Power:
|
27 hp @ 8500 rpm
|
|
Max Torque:
|
2.5 kgf-m @ 8500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Double-cradle
|
|
Front Suspension:
|
Telescopic forks
|
|
Rear Suspension:
|
Dual shocks
|
|
Front Brakes:
|
Single disc
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
90/90-18
|
|
Rear Tyre:
|
110/90-18
|
|
Dimensions:
|
Height 1055 mm / 41.5 in Width 720 mm / 28.3 in Length 2095 mm / 82.4 in
|
|
Seat Height:
|
760 mm / 29.9 IN
|
|
Ground Clearance:
|
140 mm / 5.5 in
|
|
Dry Weight:
|
143.8 kg / 316.5 lbs
|
|
Fuel Capacity:
|
NA
|
