Technical specifications
|
| Model: |

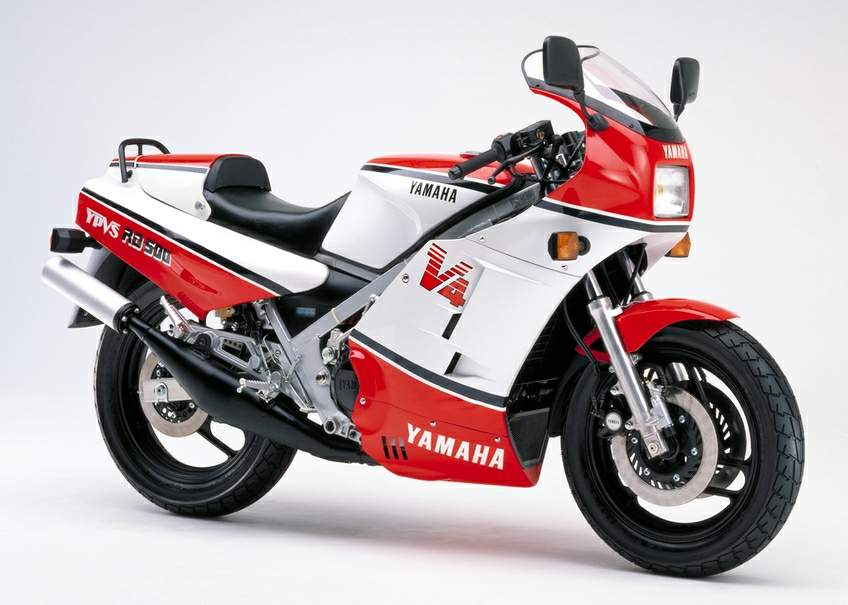

RD 500LC / RZV500 / RZ 500 |
| Years: |
1985 |
|
Engine:
|
Two stroke, 50°-V4 cylinder, reed valve, YPVS
|
|
Capacity:
|
499 cc / 30.3 cu-in
|
|
Bore x Stroke:
|
56.4 x 50 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
6.6 :1
|
|
Induction:
|
4x 26mm Mikuni carburetors
|
|
Ignition:
|
Digital CDI
|
|
Spark Plug:
|
NGK, BR9HS
|
|
Starting:
|
Kick
|
|
Max Power:
|
88 hp / 63.9 kW @ 9500 rpm
|
|
Max Torque:
|
6.57 Nm / 6.9 kgf-m @ 8500 rpm
|
|
Clutch:
|
Wet, multiple discs, cable operated
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Gear Ratio:
|
1st 2.250 2nd 1.685 3rd 1.363 4th 1.166 5th 1.043 6th 0.960
|
|
Frame:
|
Steel twin downtube
|
|
Front Suspension:
|
37mm Air assisted telescopic forks, 4-way spring preload adjustable and anti-dive variable.
|
|
Front Wheel Travel:
|
140 mm / 5.5 in
|
|
Rear Suspension:
|
Monoshock, spring preload and rebound damping,
|
|
Rear Wheel Travel:
|
120 mm / 4.7 in
|
|
Front Brakes:
|
2x 267mm discs 2 piston calipers
|
|
Rear Brakes:
|
Single 245mm disc 2 piston calliper
|
|
Front Tyre:
|
120/80 V16 +
|
|
Rear Tyre:
|
130/80 V18
|
|
Dimensions:
|
Length 2085 mm / 82.1 in Width 705 mm /27.7 in Height 1145 mm /45.0 in
|
|
Wheelbase:
|
1375 mm / 54.1 in
|
|
Seat Height:
|
780 mm / 30.7 in
|
|
Dry Weight:
|
180 kg / 437.8 lbs
|
|
Wet Weight:
|
198.6 kg / 436.5 lbs
|
|
Fuel Capacity:
|
22 Litres / 5.8 gal
|
|
Consumption Average:
|
27.5 mpg
|
|
Standing ¼ Mile:
|
11.7 sec / 117.7 mph
|
|
Top Speed:
|
148 mph / 238 km/h
|
