Technical specifications
|
| Model: |

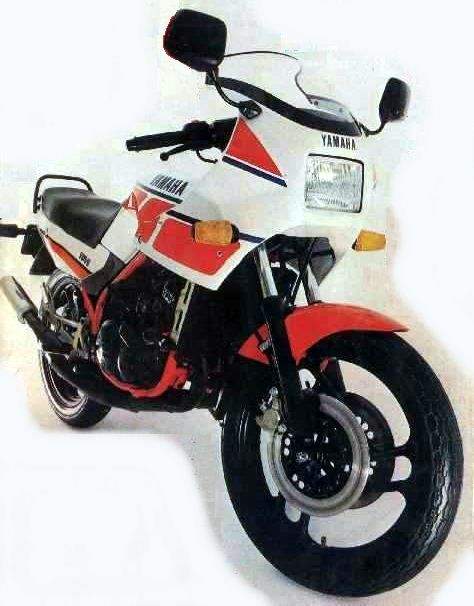

RD 350F |
| Years: |
1984 |
|
Engine:
|
Two stroke, parallel twin cylinder, YPVS
|
|
Capacity:
|
347 cc / 21.1 cu-in
|
|
Bore x Stroke:
|
64 х 54 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
6.2 :1
|
|
Lubrication:
|
Autolube
|
|
Induction:
|
2x 26mm Mikuni slide-needle carburetor
|
|
Ignition:
|
Flywheel magneto CDI
|
|
Starting:
|
Kick
|
|
Max Power:
|
59 hp / 43.9 kW @ 9000 rpm
|
|
Max Power Rear Tyre:
|
54.2 hp @ 9400 rpm
|
|
Max Torque:
|
40.2 Nm / 4.1 kgf-m / @ 8000 rpm
|
|
Clutch:
|
Wet multiplate
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
35mm Telescopic forks air assistance and variable damping
|
|
Front Wheel Travel:
|
140 mm / 5.5 in
|
|
Rear Suspension:
|
Rising rate Monocross 5-way preload
|
|
Rear Wheel Travel:
|
100 mm / 3.9 in
|
|
Front Brakes:
|
2x 260mm disc 2 piston calipers
|
|
Rear Brakes:
|
Single 260mm disc 1 piston caliper
|
|
Front Tyre:
|
90/90-18 51H
|
|
Rear Tyre:
|
110/80-18 58H
|
|
Dimensions:
|
Length 2095 mm / 82.4 in Width 700 mm / 27.5 in Height 1190 mm / 46.8 in
|
|
Wheelbase:
|
1385 mm / 54.5 in
|
|
Seat Height:
|
790 mm / 31.1 in
|
|
Ground Clearance:
|
165 mm / 6.4 in
|
|
Dry Weight:
|
141 kg / 310.8 lbs
|
|
Wet Weight:
|
155 kg / 341.7 lbs
|
|
Fuel Capacity:
|
17 Litres / 4.5 US gal
|
|
Consumption Average:
|
43 mpg
|
|
Braking 60 - 0 / 100 - 0:
|
15.0 m / 40.1 m
|
|
Standing ¼ Mile:
|
12.4 sec / 166.6 km/h
|
|
Top Speed:
|
192.8 km/h / 119.8 mph
|
