Yamaha RD 200 (1977-78) technical specifications

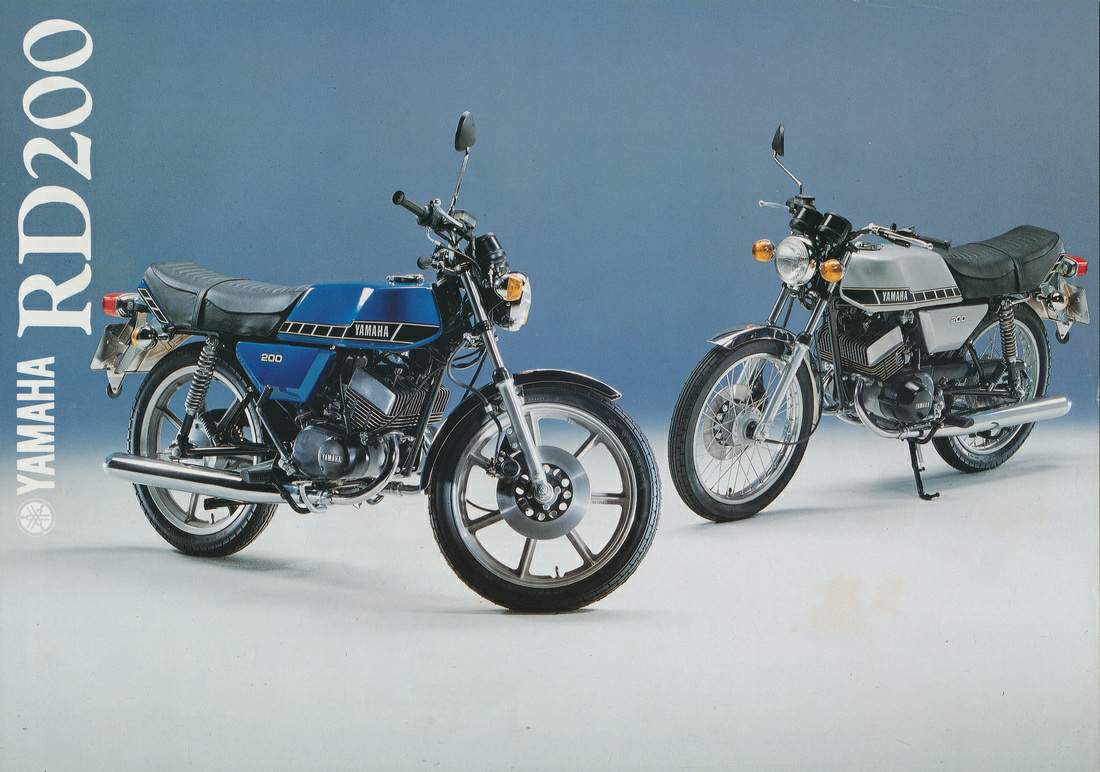

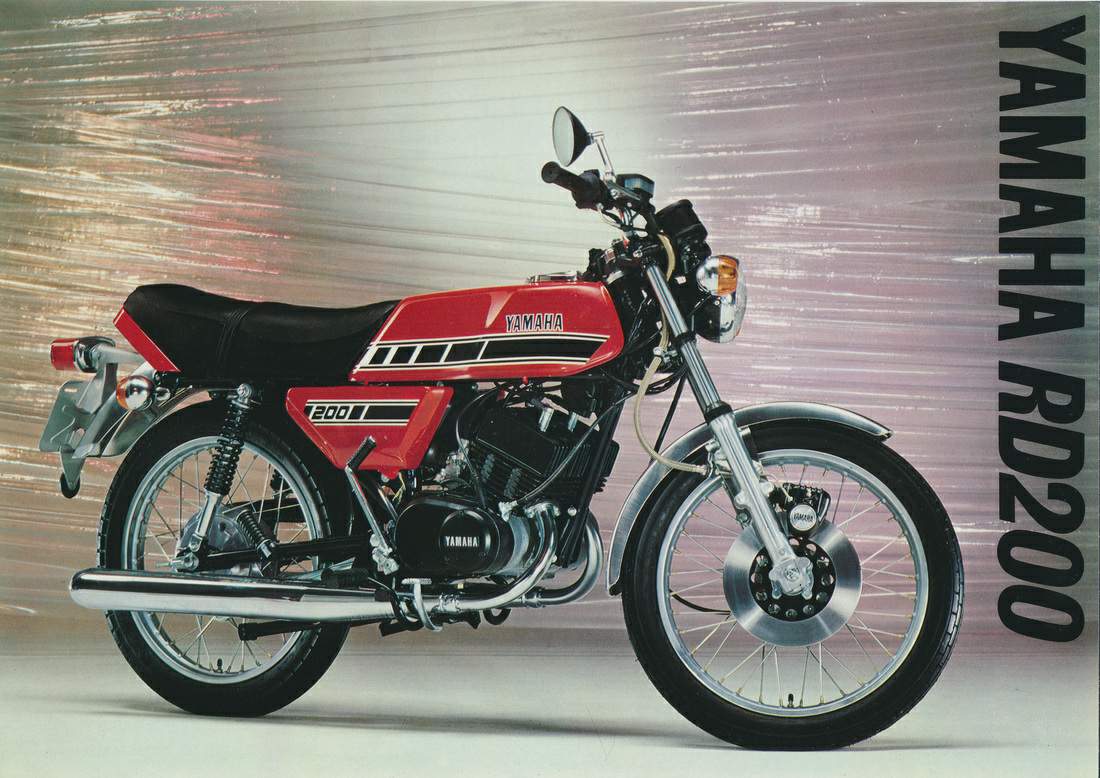

Yamaha RD 200 is produced in 1977-78. Engine is Two stroke, torque induction, parallel twin, displacement 195 cc / 11.8 cu-in , produces power 20 hp / 14.7 kW @ 8000 rpm and 1.9 kgf-m / 8.6 Nm @ 7000 rpm. Yamaha RD 200 wet weight is 140.0 kg / 308.6 lbs. Yamaha RD 200 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | RD 200 |
| Years: | 1977-78 |
| Engine: | Two stroke, torque induction, parallel twin |
| Capacity: | 195 cc / 11.8 cu-in |
| Bore x Stroke: | 52 х 46 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 7.1:1 |
| Lubrication: | Autolube |
| Oil Capacity: | 1.2 L |
| Induction: | 2x Y20P Carburetors |
| Ignition: | Battery coil |
| Starting: | Electric & Kick |
| Max Power: | 20 hp / 14.7 kW @ 8000 rpm |
| Max Torque: | 1.9 kgf-m / 8.6 Nm @ 7000 rpm |
| Clutch: | Wet multi-plate |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Dual shocks |
| Front Brakes: | Single 245 mm disc |
| Rear Brakes: | Drum |
| Front Tyre: | 2.75-18-4PR |
| Rear Tyre: | 3.25-18-4PR |
| Dimensions: | Length 1945 mm / 76.5 in Width 755 mm / 29.7 in Height 980 mm / 38.5 in |
| Wheelbase: | 1240 mm / 48.8 in |
| Seat Height: | 780 mm / 30.7 in |
| Ground Clearance: | 155 mm / 6.1 in |
| Wet Weight: | 140.0 kg / 308.6 lbs |
| Fuel Capacity: | 11.5 Litres / 3.0 US gal |
