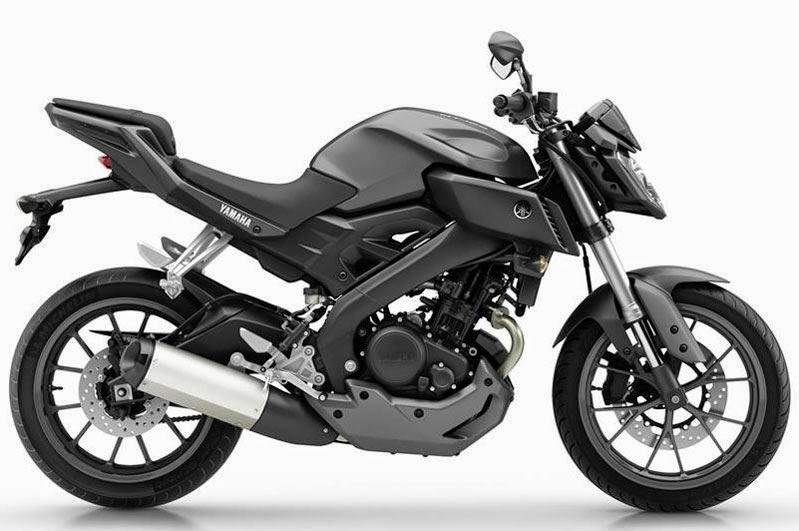

Yamaha MT-125 (2014-15) technical specifications

Yamaha MT-125 is produced in 2014-15. Engine is Four stroke, single cylinder, SOHC, 4-valves, displacement 124.7 cc / 7.6 cub in. , produces power 11 kW / 15 hp @ 9000 rpm and 12.4 Nm / 1.25 kgf-m / 9.14 ft-lb. Yamaha MT-125 wet weight is 138 kg / 304 lbs. Yamaha MT-125 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	MT-125
Years:	2014-15
Engine:	Four stroke, single cylinder, SOHC, 4-valves
Capacity:	124.7 cc / 7.6 cub in.
Bore x Stroke:	52 x 58.6 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.2:1
Lubrication:	Wet sump
Oil Capacity:	1.15 L / 0.3 US gal
Exhaust:	Single, stainless steel
Induction:	Electronic fuel injection
Ignition:	TCI (digital)
Starting:	Electric
Max Power:	11 kW / 15 hp @ 9000 rpm
Max Torque:	12.4 Nm / 1.25 kgf-m / 9.14 ft-lb
Clutch:	Wet, multi-disc, coil spring
Transmission:	6-Speed, constant mesh
Final Drive:	Chain
Frame:	Steel Deltabox
Front Suspension:	Upside-down telescopic fork, 41 mm dia.
Front Wheel Travel:	130 mm / 5.1 in.
Rear Suspension:	Linked monoshock with spring preload adjustment
Rear Wheel Travel:	114 mm / 4.5 in.
Front Brakes:	Hydraulic, single disc, 292 mm dia.
Rear Brakes:	Hydraulic, single disc, 230 mm dia.
Front Tyre:	100/80-17 MC
Rear Tyre:	130/70-17 M
Caster:	25°
Trail:	89 mm / 3.5 in.
Dimensions:	Length: 1955 mm / 77.0 in Width: 740 mm / 29.1 in Height: 1040 mm / 40.9 in
Wheelbase:	1355 mm / 53.3 in
Ground Clearance:	140 mm / 5.5 in
Seat Height:	810 mm / 31.9 in
Wet Weight:	138 kg / 304 lbs
Fuel Capacity:	11.5 Litres / 3.0 US gal
