Technical specifications
|
| Model: |

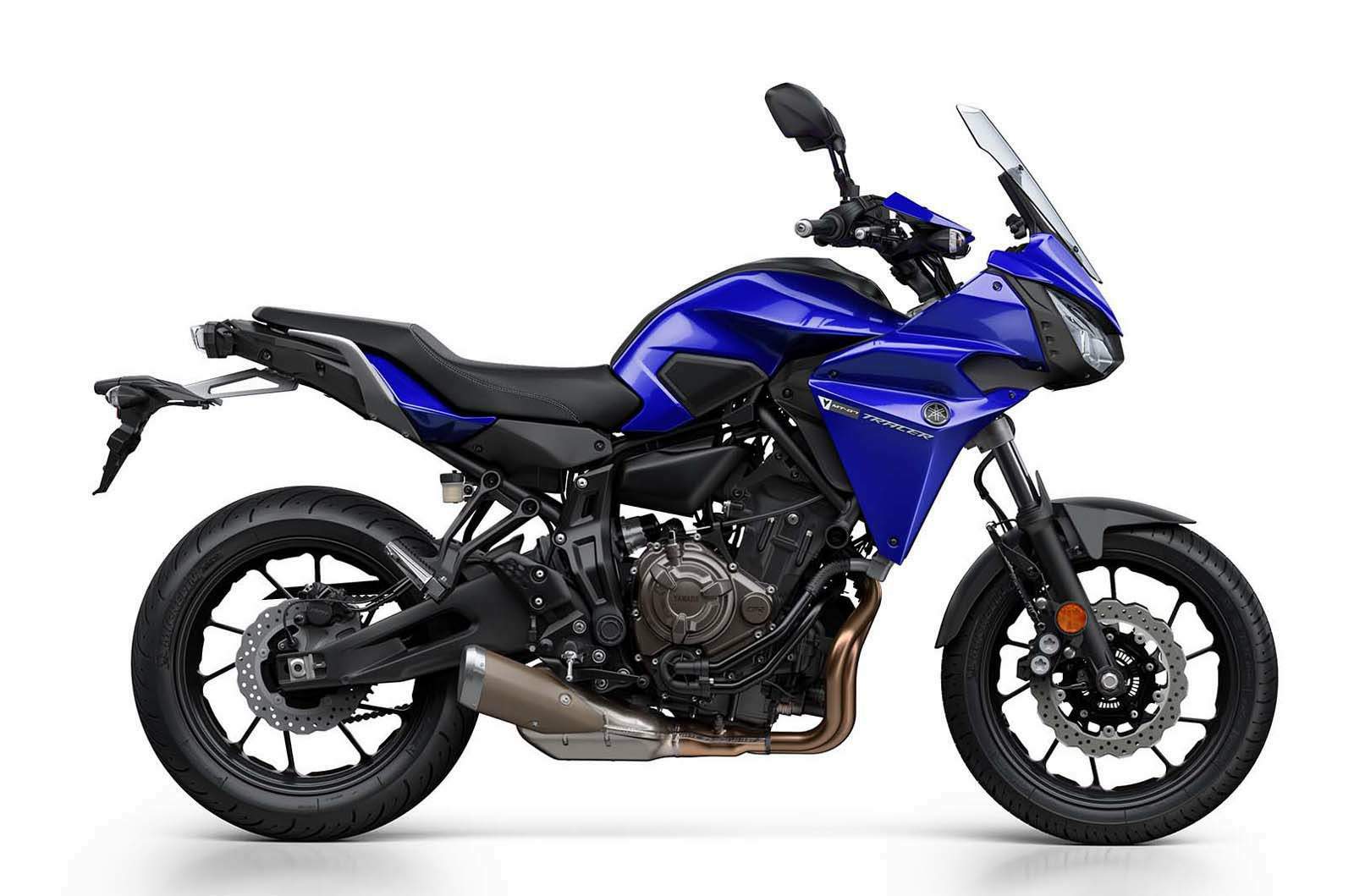

MT-07 Tracer 700 |
| Years: |
2016-17 |
|
Engine:
|
Four stroke, parallel twin, DOHC, 4 valves per cylinder
|
|
Capacity:
|
689 cc / 42.04 cu-in
|
|
Bore x Stroke:
|
80 x 68.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.5: 1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Fuel injection
|
|
Ignition:
|
TCI (Transistor Controlled Ignition)
|
|
Starting:
|
Electric
|
|
Max Power:
|
55 kW / 74.8 hp @ 9000 rpm
|
|
Limited Power Version:
|
35 kW / 46.9 hp @ 7500 rpm
|
|
Max Torque:
|
68 Nm / 50.1 lb-ft @ 6500 rpm
|
|
Clutch:
|
Wet, multi plate
|
|
Transmission:
|
Constant Mesh, 6 speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Diamond
|
|
Front Suspension:
|
Telescopic forks
|
|
Front Wheel Travel:
|
130 mm / 5.1 in
|
|
Rear Suspension:
|
Swinging arm, (link suspension)
|
|
Rear Wheel Travel:
|
142 mm / 5.59 in
|
|
Front Brakes:
|
2x 282mm discs
|
|
Rear Brakes:
|
Single 245mm disc
|
|
Front Tyre:
|
120/70 R17 M/C (58W) (tubeless)
|
|
Rear Tyre:
|
180/55 R17 M/C 73W (tubeless)
|
|
Caster Angle:
|
24.8º
|
|
Trail:
|
90 mm / 3.5 in
|
|
Dimensions:
|
Length 2138 mm / 84.1 in Width 806 mm / 31.7 in Height 1270 mm / 50 in
|
|
Wheelbase:
|
1450 mm / 57 in
|
|
Ground Clearance:
|
140 mm / 5.51 in
|
|
Seat Height:
|
835 mm / 32.8 in
|
|
Wet Weight:
|
196 kg / 432 lbs
|
|
Fuel Capacity:
|
17 Litres / 4.49 US gal
|
