Technical specifications
|
| Model: |

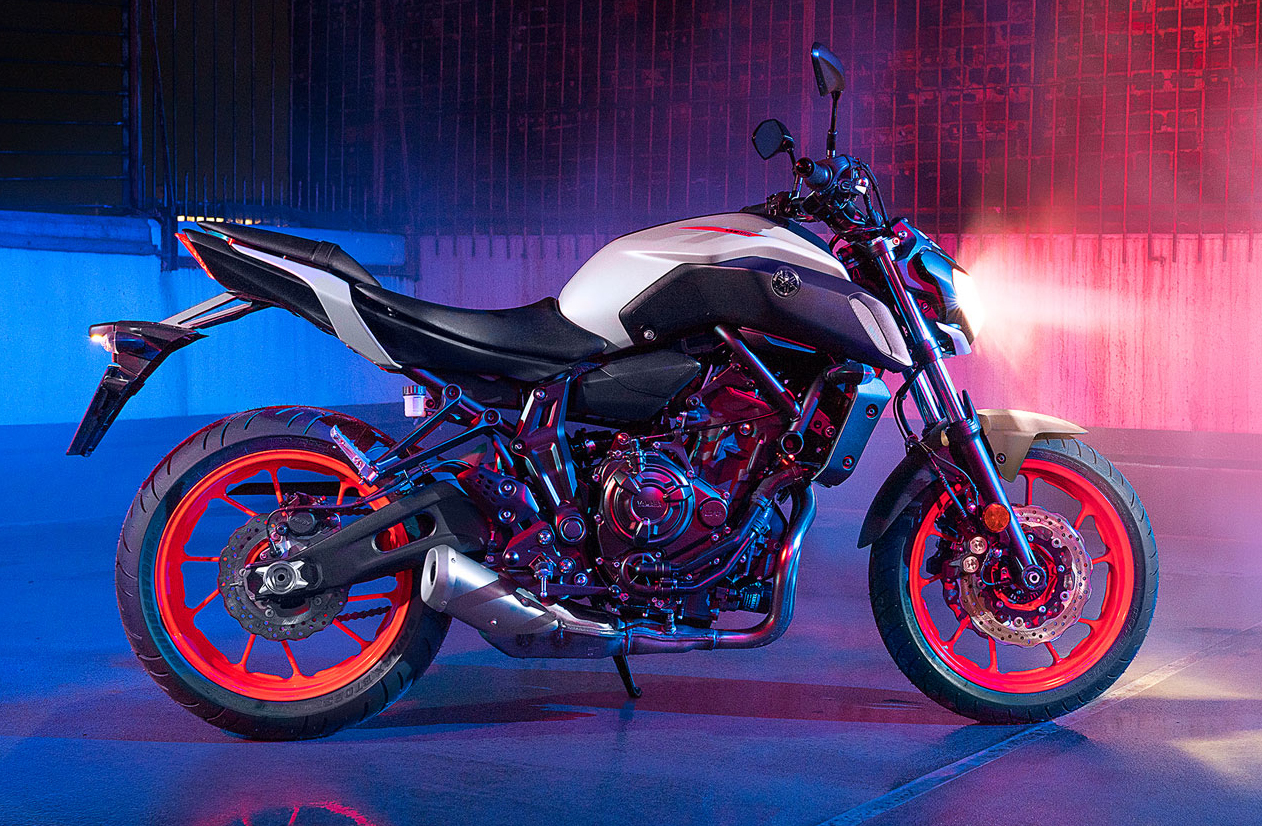

MT-07 |
| Years: |
2020 |
|
Engine:
|
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
689 cc / 42.04 cu-in
|
|
Bore x Stroke:
|
80 x 68.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.5:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Mikuni 38 mm dual bore throttle body F.I.
|
|
Ignition:
|
TCI Transistor Controlled Ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
55 kW / 74.8 hp @ 9000 rpm
|
|
Max Torque:
|
68 Nm / 50 lb-ft @ 6500 rpm
|
|
Transmission:
|
Constant Mesh
|
|
Final Drive:
|
Chain
|
|
Clutch:
|
Wet multiplate
|
|
Frame:
|
Diamond
|
|
Front Suspension:
|
41mm Telescopic forks
|
|
Front Wheel Travel:
|
130 mm / 5.1 in
|
|
Rear Suspension:
|
Adjustable link Monocross
|
|
Rear Wheel Travel:
|
130 mm / 5.1 in
|
|
Front Brakes:
|
2x 282mm discs, 4-piston calipers
|
|
Rear Brakes:
|
Single 245mm disc, single piston caliper
|
|
ABS:
|
Standard
|
|
Front Tyre:
|
120/70 ZR 17M/C(58W) (Tubeless)
|
|
Rear Tyre:
|
180/55 ZR 17M/C(73W) (Tubeless)
|
|
Caster Angle:
|
24.5º
|
|
Trail:
|
90 mm
|
|
Dimensions:
|
Length 2085 mm / 82.1 in Width 745 mm / 29.3 in Height 1090 mm / 42.9 in
|
|
Wheel base:
|
1400 mm / 55.1 in
|
|
Ground Clearance:
|
140 mm / 5.51 in
|
|
Seat Height:
|
805 mm / 31.7 in
|
|
Wet Weight:
|
183 kg / 403 lbs
|
|
Fuel Capacity:
|
14 Litres / 3.7 US gal
|
|
Consumption Average:
|
23.1 km/lit
|
|
Standing ¼ Mile:
|
12.3 sec
|
|
Top Speed:
|
205.7 km/h / 127.8 mph
|
