Yamaha MT-01 (2005-06) technical specifications

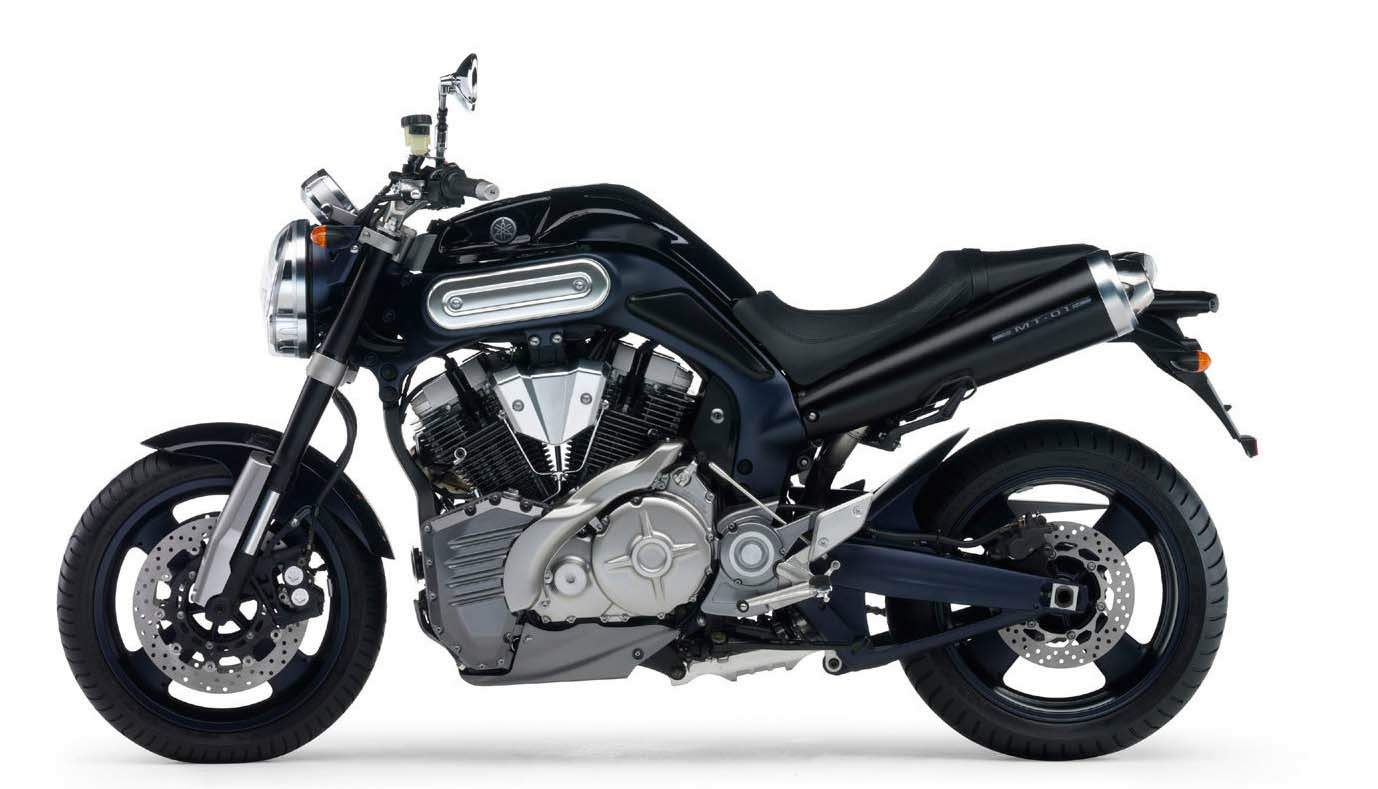

Yamaha MT-01 is produced in 2005-06. Engine is Four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder., displacement 1670 cc / 101.9 cu-in , produces power 66.3 kW / 90 hp @ 4750 rpm and 150.1Nm / 110.7lb-ft @ 3750rpm. Yamaha MT-01 top speed is 207.6 km/h. Yamaha MT-01 weighs 240 kg / 529.1 lbs. Yamaha MT-01 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	MT-01
Years:	2005-06
Engine:	Four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder.
Capacity:	1670 cc / 101.9 cu-in
Bore x Stroke:	97 x 113 mm
Cooling System:	Air cooled
Compression Ratio:	8.36:1
Lubrication:	Dry sump
Engine Oil:	SAE20W40
Oil Capacity:	5.0 Litres / 0.33 quart
Induction:	Twin-bore fuel injection (FI)
Spark Plug:	NGK, DPR7EA-9
Ignition:	Digital TCI
Starting:	Electric
Max Power:	66.3 kW / 90 hp @ 4750 rpm
Max Torque:	150.1Nm / 110.7lb-ft @ 3750rpm
Clutch:	Wet, multiple-disc
Transmission:	5 Speed
Final Drive:	Chain
Frame:	Newly designed aluminium CF die-cast sports frame, R1-type die-cast aluminium subframe
Front Suspension:	Inverted telescopic fork;
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Swingarm with fully adjustable single shock;
Rear Wheel Travel:	117 mm / 4.6 in
Front Brakes:	2x 320 mm discs 4 piston calipers
Rear Brakes:	Single 267 mm disc 1 piston caliper
Front Tyre:	120/70 ZR18
Rear Tyre:	190/50 ZR17
Rake:	27°
Trail:	103 mm / 4.1 in
Dimensions:	Height 825 mm / 32.5 in Length 2185 mm / 86.0 in Width 790 mm / 31.1 in
Wheelbase:	1525 mm / 60.0 in
Seat Height:	825 mm / 32.5 in
Ground Clearance:	140 mm / 5.5 in
Dry Weight:	240 kg / 529.1 lbs
Wet Weight:	265 kg / 585.2 lbs
Fuel Capacity:	15 Litres / 3.2 gal
Consumption Average:	19.5 km/lit
Standing ¼ Mile:	12.7 sec
Top Speed:	207.6 km/h
