Technical specifications
|
| Model: |

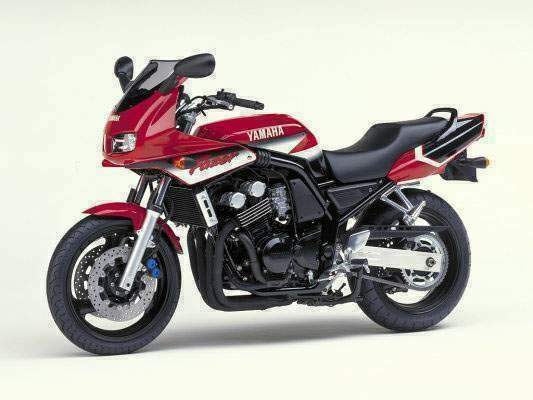

FZS 600 Fazer |
| Years: |
2000-01 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
599 cc / 36.5 cu-in
|
|
Bore x Stroke:
|
62 x 49.6 mm
|
|
Compression Ratio:
|
12.0:1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Engine Oil:
|
Mineral, 10W/40
|
|
Induction:
|
4x 38mm Mikuni BDSR carburetors
|
|
Ignition:
|
CDI Digital
|
|
Spark Plug:
|
NGK, CR9E
|
|
Starting:
|
Electric
|
|
Max Power:
|
95 hp / 69.3 kW @ 11500 rpm (83.8hp @ 11.000rpm)
|
|
Max Power Rear Tyre:
|
83.8 hp / 62.4 kW @ 11.000rpm
|
|
Max Torque:
|
61.2 Nm / 45.8 lb-ft @ 9500 rpm
|
|
Clutch:
|
Wet, multiple discs, cable operated
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Steel, Double cradle frame
|
|
Front Suspension:
|
41mm adjustable. forks preload adjustable
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Monoshock: adjustable preload
|
|
Front Brakes:
|
2x 298mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 245mm disc 2 piston caliper
|
|
Front Tyre:
|
110/70-17
|
|
Rear Tyre:
|
160/60-17
|
|
Dimensions:
|
Length 2080 mm / 81.8 in Width 710 mm / 27.9 in Height 1180 mm / 46.4 in
|
|
Wheelbase:
|
1415 mm / 55.7 in
|
|
Seat Height:
|
790 mm / 31.1 in
|
|
Dry Weight:
|
189 kg / 416.6 lbs
|
|
Wet Weight:
|
205 kg / 452 lbs
|
|
Fuel Capacity:
|
18 Litres / 4.7 US gal
|
|
Braking 60 - 0 / 100 - 0:
|
13.1 m / 38.3 m
|
|
Standing ¼ Mile:
|
11.4 sec /191.6 km/h
|
|
Top Speed:
|
226 km/h
|
