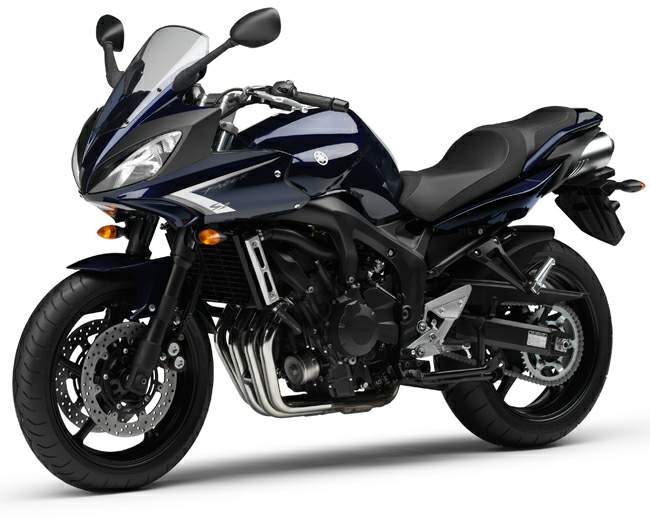

Yamaha FZ-6S2 Fazer (2009) technical specifications

Yamaha FZ-6S2 Fazer is produced in 2009. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 599 cc / 36.5 cu-in , produces power 98 hp / 72 kW @ 12000 rpm and 63.1 Nm / 6.4 kgf-m @ 10000 rpm. Yamaha FZ-6S2 Fazer top speed is 227.8 km/h / 141.5 mph. Yamaha FZ-6S2 Fazer weighs 186 kg / 410 lbs - ABS 191 kg / 421 lbs. Yamaha FZ-6S2 Fazer has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	FZ-6S2 Fazer
Years:	2009
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity:	599 cc / 36.5 cu-in
Bore x Stroke:	65.5 x 44.5 mm
Compression Ratio:	12.2:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Engine Oil:	Synthetic, 10W/40
Induction:	Group injection type fuel injection, 36mm Funnel diameter
Ignition:	TCI Digital CDI
Spark Plug:	NGK, CR9EK
Starting:	Electric
Max Power:	98 hp / 72 kW @ 12000 rpm
Max Torque:	63.1 Nm / 6.4 kgf-m @ 10000 rpm
Clutch:	Wet, multiple discs, cable operated
Transmission:	6 Speed
Final Drive:	Chain
Frame:	Aluminium, twin spar
Front Suspension:	43mm Telescopic fork,
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Swingarm Link less type Monocross
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2x 298 mm discs
Rear Brakes:	Single 245 mm disc
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Trail:	98 mm / 2.8 in
Dimension:	Length 2095 mm / 82.4 in Width 750 mm / 29.5 in Height 1210 mm / 47.6 in
Wheelbase:	1440 mm / 56.7 in
Seat Height:	795 mm / 31.3 in
Ground Clearance:	145 mm / 5.7 in
Dry Weight:	186 kg / 410 lbs - ABS 191 kg / 421 lbs
Fuel Capacity:	19 Litres / 5.0 US gal
Consumption Average:	22.0 km/lit
Standing ¼ Mile:	11.2 sec
Top Speed:	227.8 km/h / 141.5 mph
