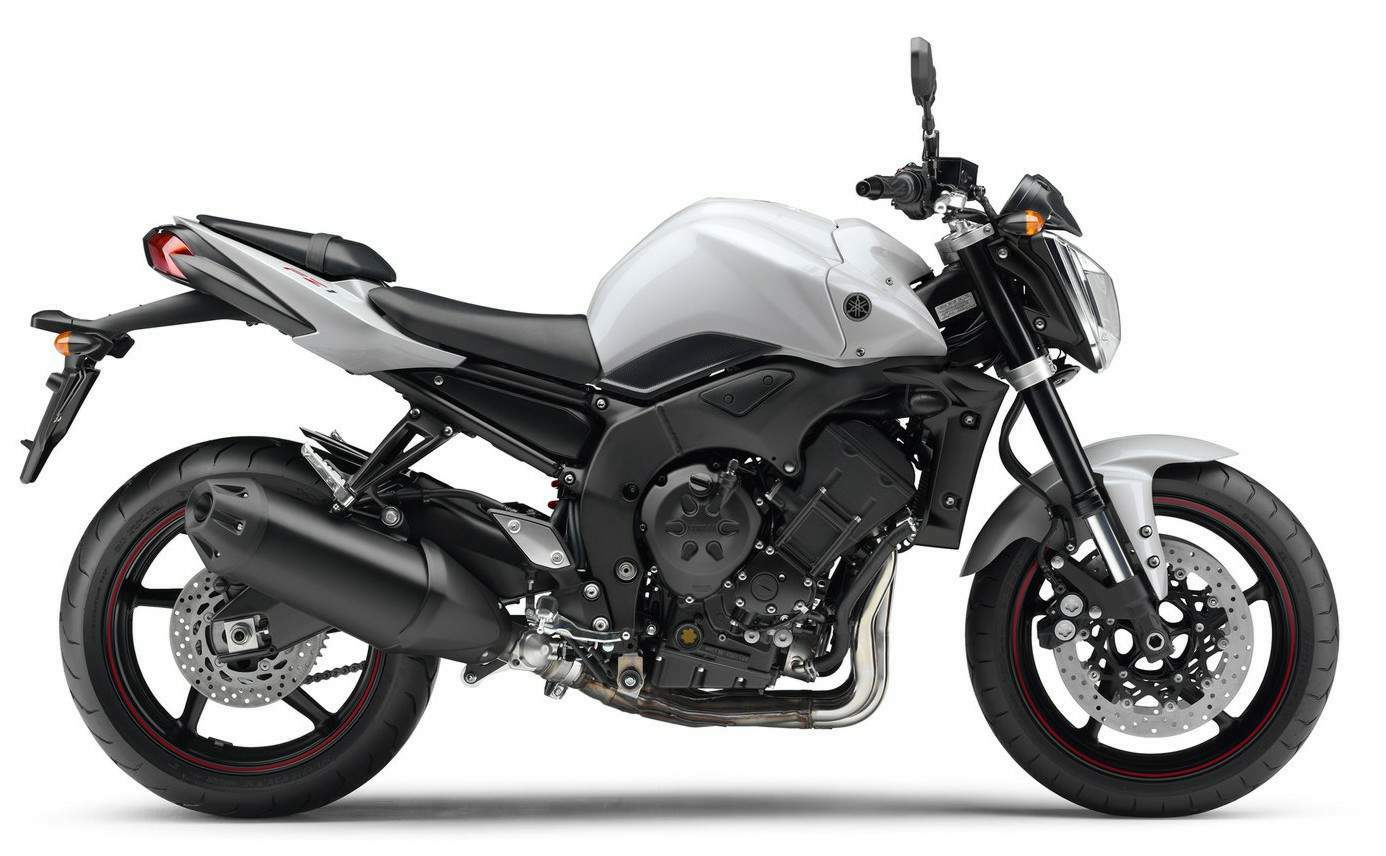

Yamaha FZ-1 N Abarth Assetto Corse (2011) technical specifications
Yamaha FZ-1 N Abarth Assetto Corse is produced in 2011. Engine is Four stroke, transverse four cylinder, DOHC, 5 valve per cylinder, displacement 998 cc / 60.9 cu-in , produces power 146.84 hp / 108 kW @ 11000 rpm and 106 Nm /10.5 kgf-m / 76.7 ft-lb @ 8000 rpm. Yamaha FZ-1 N Abarth Assetto Corse top speed is 246.1 km/h. Yamaha FZ-1 N Abarth Assetto Corse weighs 198 kg / 436.5 lbs. Yamaha FZ-1 N Abarth Assetto Corse has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | FZ-1 N Abarth Assetto Corse |
| Years: | 2011 |
| Engine: | Four stroke, transverse four cylinder, DOHC, 5 valve per cylinder |
| Capacity: | 998 cc / 60.9 cu-in |
| Bore x Stroke: | 77 X 53.6 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 11.5:1 |
| Lubrication: | Wet sump |
| Engine Oil: | Synthetic, 20W/40 |
| Induction: | Fuel injection |
| Ignition: | Digital TCI: Transistor Controlled Ignition with 32-bit ECU |
| Spark Plug: | NGK, CR9EK |
| Starting: | Electric |
| Max Power: | 146.84 hp / 108 kW @ 11000 rpm |
| Max Torque: | 106 Nm /10.5 kgf-m / 76.7 ft-lb @ 8000 rpm |
| Clutch: | Wet, multiple discs, hydraulic operated |
| Transmission: | 6 Speed |
| Final Drive: | O-ring chain |
| Frame: | Aluminium die-cast, diamond shaped |
| Front Suspension: | Telescopic upside forks, |
| Rear Wheel Travel: | 130 mm / 5.1 in |
| Rear Suspension: | Link-type swingarm, |
| Front Brakes: | 2x 320mm discs 4 piston calipers |
| Rear Brakes: | Single 245mm disc 1 piston caliper |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 190/50 ZR17 |
| Rake: | 25.0° |
| Trail: | 109 mm / 4.3 in |
| Dimensions: | Height 1204 mm / 47.4 in Length 2141 mm / 84.3 in Width 770 mm / 30.3 in |
| Wheelbase: | 1461 mm / 57.5 in |
| Ground Clearance: | 135 mm / 5.3 in |
| Seat Height: | 815 mm / 32.1 in |
| Dry Weight: | 198 kg / 436.5 lbs |
| Wet Weight: | 221 kg / 487 lbs |
| Fuel Capacity: | 18 Liters / 4.76 US gal |
| Standing ¼ Mile: | 11.1 sec |
| Top Speed: | 246.1 km/h |
