Yamaha FZ-1 Fazer (2015) technical specifications

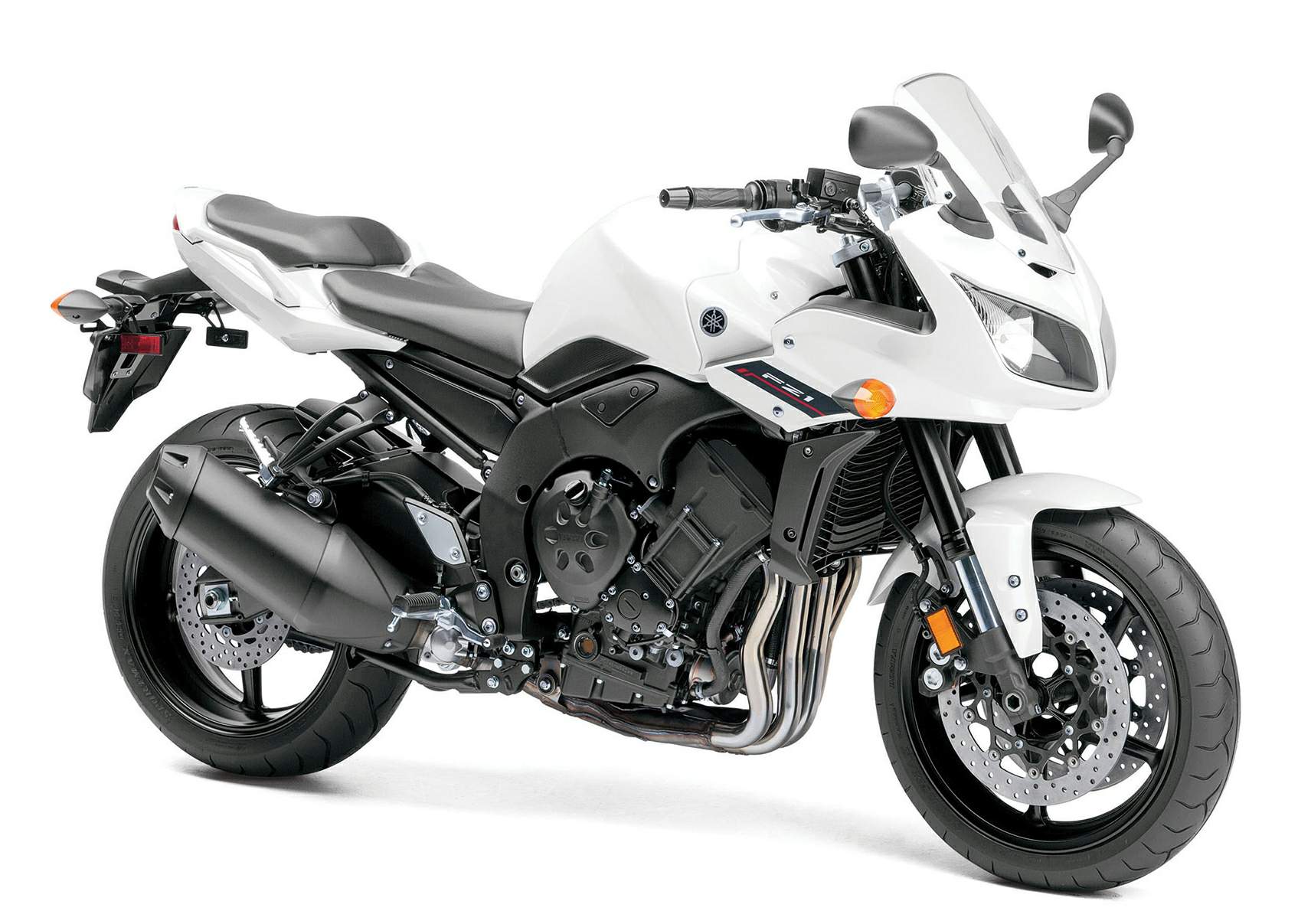

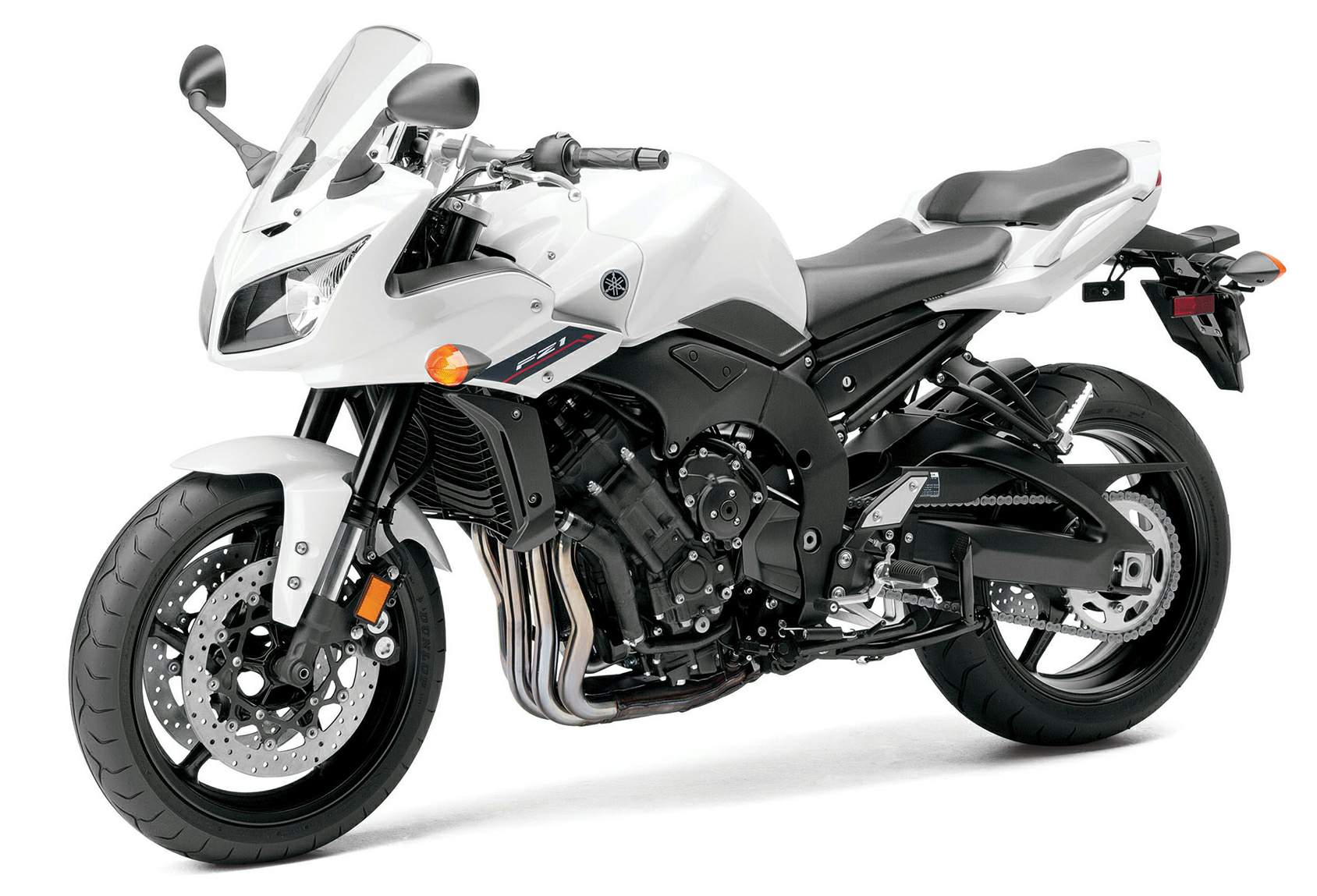

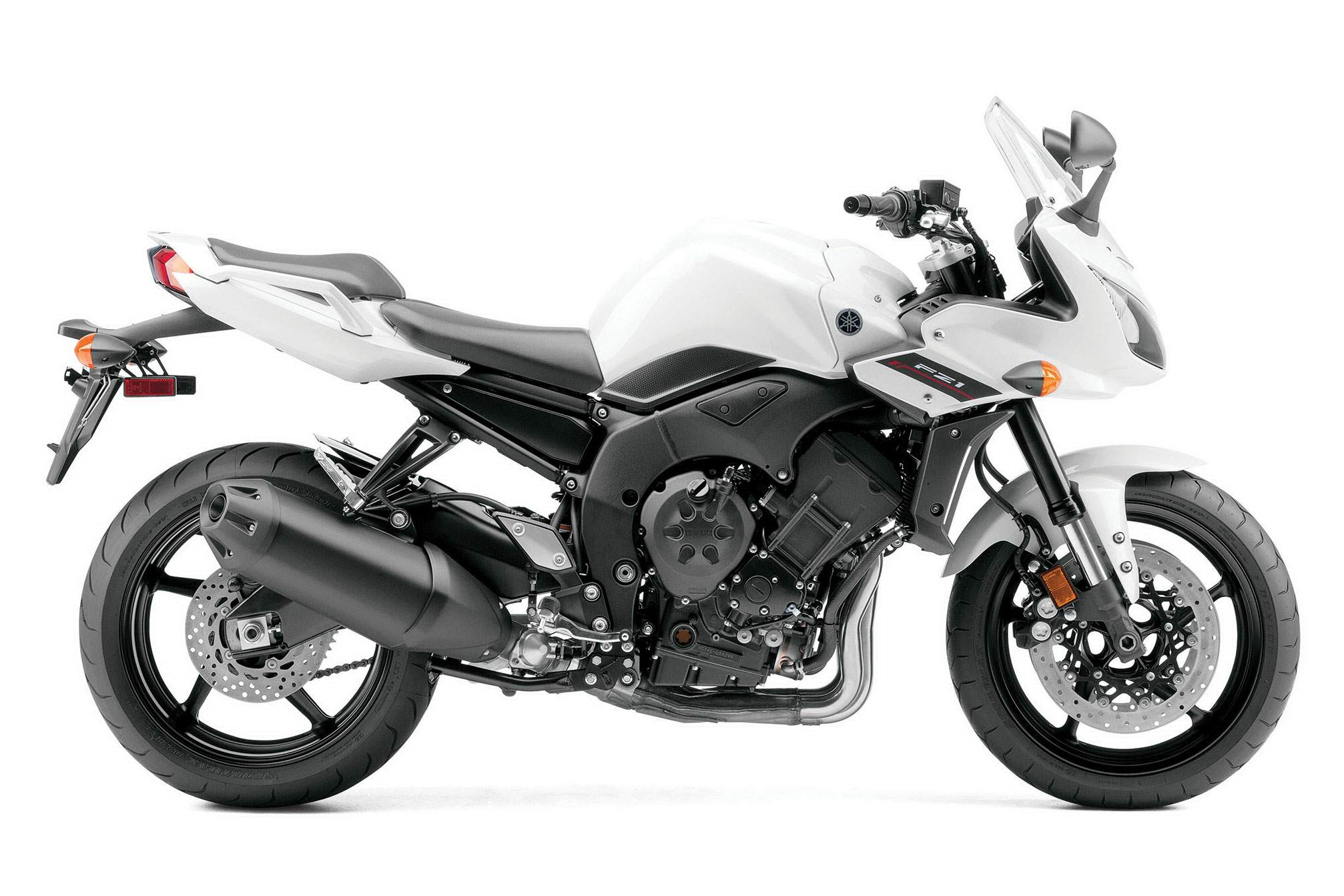

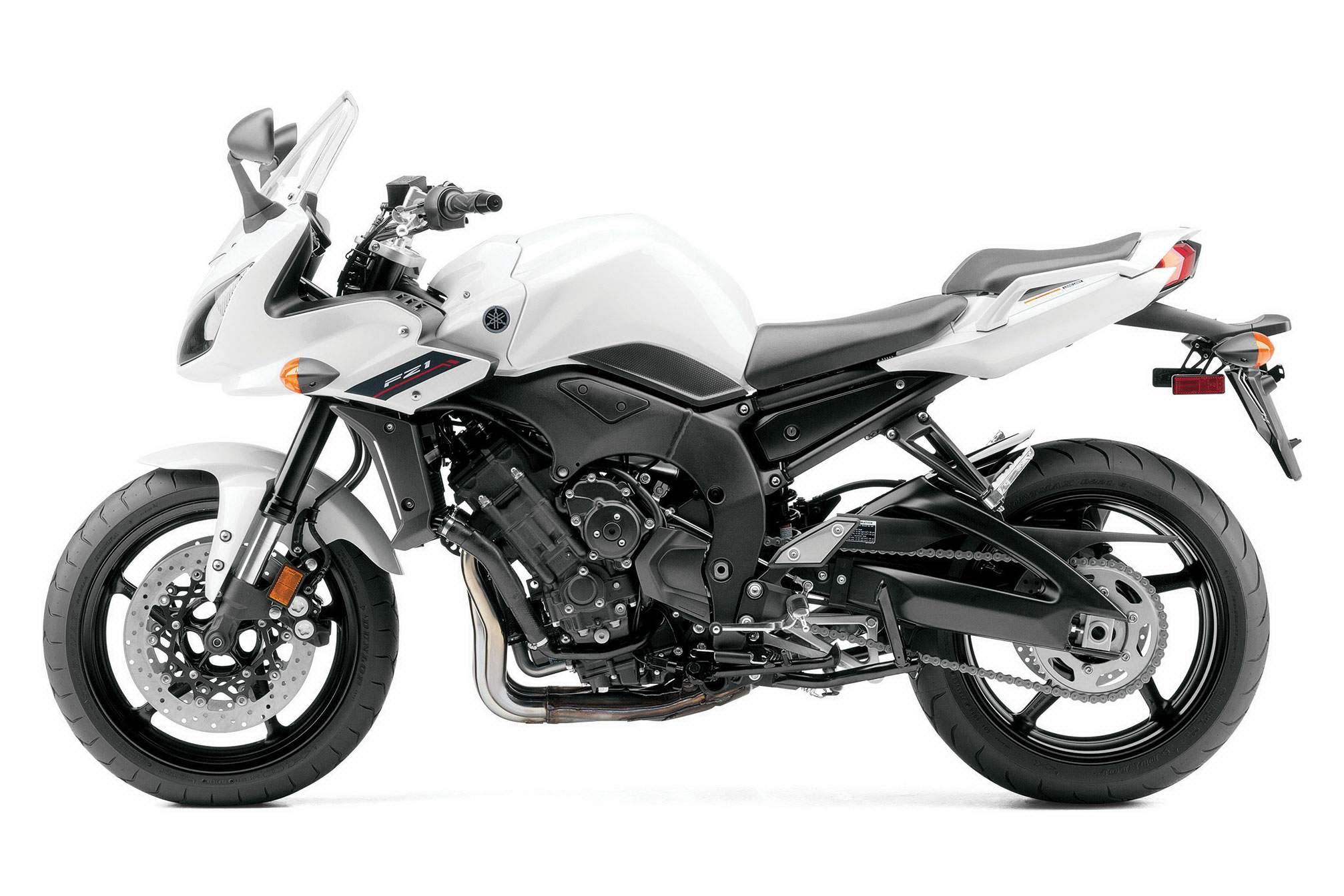

Yamaha FZ-1 Fazer is produced in 2015. Engine is Four stroke, transverse four cylinder, DOHC, 5 valve per cylinder, displacement 998 cc / 60.9 ci-in , produces power 146.8 hp / 108 kW @ 11000 rpm and 106 Nm /10.5 kgf-m / 76.7 ft-lb @ 8000 rpm. Yamaha FZ-1 Fazer weighs 198 kg / 436.5 lbs. Yamaha FZ-1 Fazer has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	FZ-1 Fazer
Years:	2015
Engine:	Four stroke, transverse four cylinder, DOHC, 5 valve per cylinder
Capacity:	998 cc / 60.9 ci-in
Bore x Stroke:	77 X 53.6 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.5:1
Lubrication:	Wet sump
Induction:	Fuel injection
Ignition:	Digital TCI: Transistor Controlled Ignition with 32-bit ECU
Starting:	Electric
Max Power:	146.8 hp / 108 kW @ 11000 rpm
Max Torque:	106 Nm /10.5 kgf-m / 76.7 ft-lb @ 8000 rpm
Clutch:	Wet, multiple discs, hydraulic operated
Transmission:	6 Speed
Final Drive:	O-ring chain
Frame:	Aluminium die-cast, diamond shaped
Front Suspension:	Telescopic upside forks,
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Link-type swingarm,
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2x 320mm discs 4 piston calipers
Rear Brakes:	Single 245mm disc 1 piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	190/50 ZR17
Rake:	25.0°
Trail:	109 mm / 4.3 in
Dimensions:	Height 1204 mm / 47.4 in Length 2141 mm / 84.3 in Width 770 mm / 30.3 in
Wheelbase:	1461 mm / 57.5 in
Ground Clearance:	135 mm / 5.3 in
Seat Height:	815 mm / 32.1 in
Dry Weight:	198 kg / 436.5 lbs
Wet Weight:	221 kg / 487 lbs
Fuel Capacity:	18 Litres / 4.76 gal
