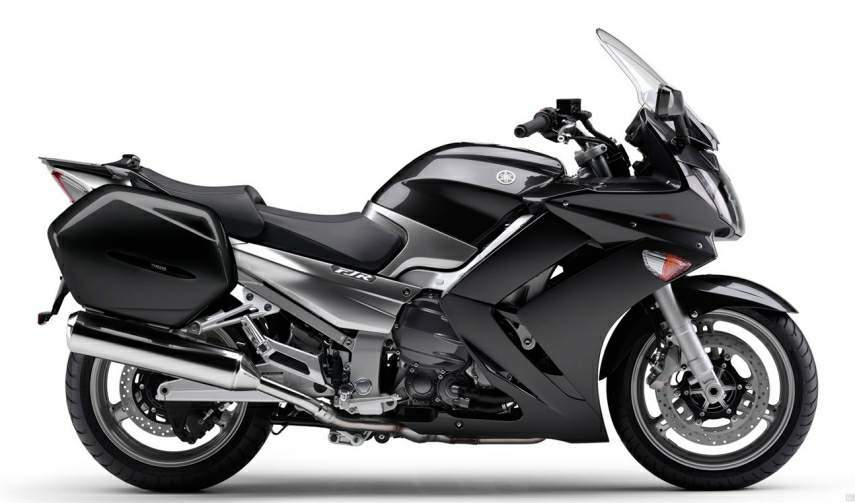

Yamaha FJR 1300AE (2009) technical specifications
Yamaha FJR 1300AE is produced in 2009. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 1298 cc / 79.2 cu-in , produces power 145 hp / 105.7 kW @ 8500 rpm and 125 Nm / 13.7kgf-m @ 6000 rpm. Yamaha FJR 1300AE top speed is 244.9 km/h / 152.1 mph. Yamaha FJR 1300AE weighs 264 kg / 582 lbs. Yamaha FJR 1300AE has 3 photos.
Technical specifications
+ Add to 'Compare list'Model: | FJR 1300AE |
Years: | 2009 |
Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. |
Capacity: | 1298 cc / 79.2 cu-in |
Bore x Stroke: | 79 x 66.2 mm |
Compression Ratio: | 10.8:1 |
Cooling System: | Liquid cooled |
Lubrication: | Wet sump |
Induction: | Electronic Fuel Injection |
Engine Oil: | Synthetic, 20W/40 |
Ignition: | TCI (Transistor Controlled Ignition) |
Spark Plug: | NGK, CR8E |
Starting: | Electric |
Max Power: | 145 hp / 105.7 kW @ 8500 rpm |
Max Torque: | 125 Nm / 13.7kgf-m @ 6000 rpm |
Clutch: | Wet, multiple discs, cable operated |
Transmission: | 5 Speed Yamaha Chip-Controlled Shift (YCC-S) |
Final Drive: | Shaft |
Frame: | Aluminium, twin spar |
Front Suspension: | 48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping; |
Front Wheel Travel: | 137 mm / 5.3 in |
Rear Suspension: | Single shock, link-type, w/adjustable preload and rebound damping; |
Rear Wheel Travel: | 129 mm / 4.9 in |
Front Brakes: | 2x 320mm discs 4 piston calipers |
Rear Brakes: | Single 283mm disc 2 piston caliper |
Front Tyre: | 120/70 ZR17 |
Rear Tyre: | 180/55 ZR17 |
Dimensions: | Length 2230 mm / 87.8 in. Width 749.3 mm / 29.5 in. Height 1455 mm / 57.3 in. |
Wheelbase: | 1544.3 mm / 60.8 in |
Ground Clearance: | 130 mm / 5.1 in. |
Rake: | 26.0° |
Trail: | 102 mm / 4.3 in. |
Seat Height: | 805 mm - 825.5 mm / 31.7 in - 32.5 in. |
Dry Weight: | 264 kg / 582 lbs |
Wet Weight: | 292 kg / 644 lbs |
Fuel Capacity: | 25 Liters / 6.6 gal |
Standing ¼ Mile: | 11.4 sec |
Top Speed: | 244.9 km/h / 152.1 mph |
