Technical specifications
|

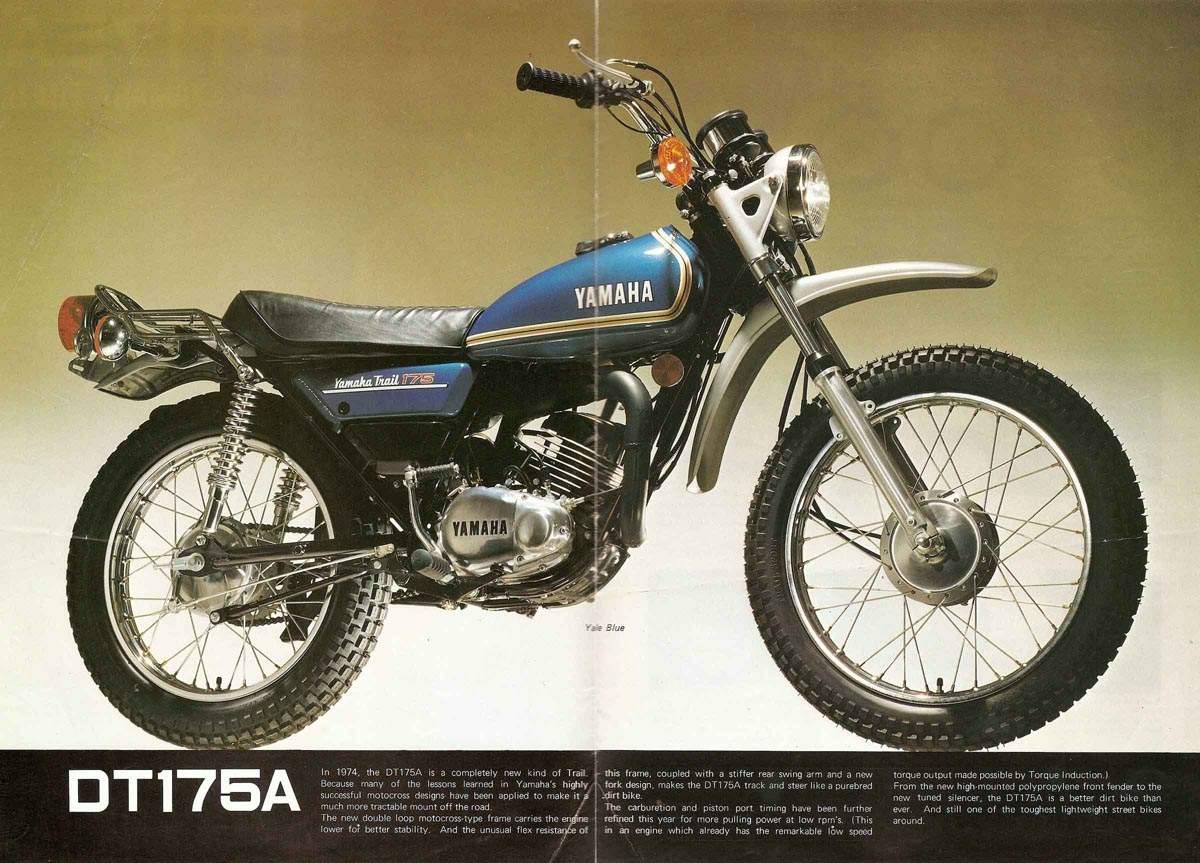

| Model: |
DT 175 |
| Years: |
1974-75 |
|
Engine:
|
Two stroke, single cylinder, reed valve
|
|
Capacity:
|
171 cc / 10.43 cu-in
|
|
Bore x Stroke:
|
66 x 50 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
6.8;1
|
|
Induction:
|
Mikuni VM24SS 24mm slide type carburettor
|
|
Ignition:
|
CDI, magneto type
|
|
Starting:
|
Kick
|
|
Battery:
|
6V, 4Ah.
|
|
Max Power:
|
16.5 hp / 12.3 kW @ 7000 rpm
|
|
Max Torque:
|
8.8 Nm / 12 lb- ft @ 6000rpm.
|
|
Clutch:
|
Wet, multiplate type.
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain, DID428SM. 117 links.
|
|
Primary Reduction Ratio:
|
3.23:1.
|
|
Final Reduction Ratio:
|
2.37:1.
|
|
Gear Ratios:
|
1st 33.55, 2nd 20.38, 3rd 14.42, 4th 11.50, 5th 10.09
|
|
Gearbox Sprocket:
|
15 teeth.
|
|
Wheel Sprocket:
|
49 teeth.
|
|
Frame:
|
Welded, tubular, double cradle with single downtube.
|
|
Front Suspension:
|
Telescopic, oil damped.
|
|
Front Fork Oil:
|
146cc (4.9fl. oz.) per leg.
|
|
Rear Suspension:
|
Dual shocks
|
|
Front Brakes:
|
Drum
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
2.75 -21
|
|
Rear Tyre:
|
3.50 -18
|
|
Castor Angle:
|
60°
|
|
Dimensions:
|
Length 2080 mm / 81.9 in Height 1120 mm / 44.1 in
|
|
Wheelbase::
|
1350 mm / 53.1in.
|
|
Ground Clearance:
|
265 mm / 10.4 in
|
|
Seat height:
|
845 mm / 33.27 in
|
|
Dry Weight:
|
99 kg / 2181 lbs
|
|
Fuel Capacity:
|
7 Litres / 1.5gal
|
