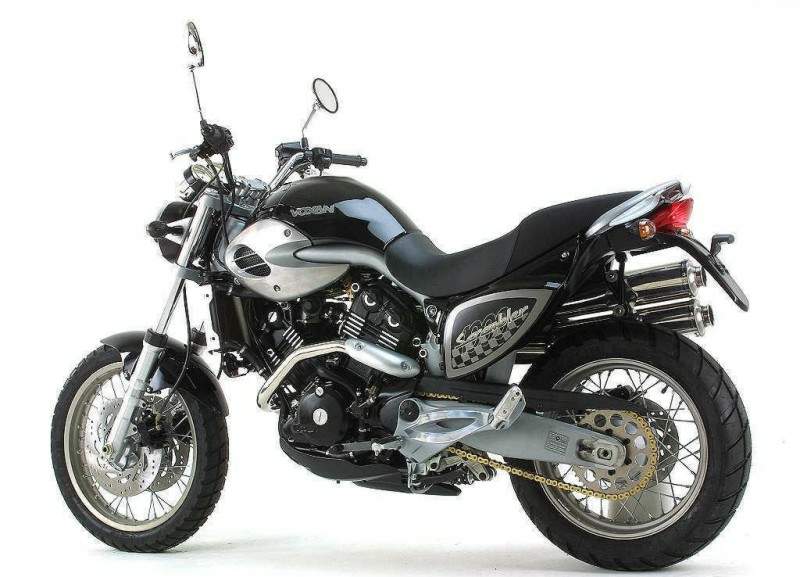

Voxan Scrambler (2002-03) technical specifications

Voxan Scrambler is produced in 2002-03. Engine is Four stoke, 72°V-Twin cylinder, DOHC, 4 valves per cylinder, displacement 996 cc / 60.7 cu-in , produces power 85 hp / 62 kW @ 7500 rpm and 103 Nm / 75.9 lb-ft @ 6500 rpm. Voxan Scrambler weighs 190 kg / 419 lbs. Voxan Scrambler has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Scrambler
Years:	2002-03
Engine:	Four stoke, 72°V-Twin cylinder, DOHC, 4 valves per cylinder
Capacity:	996 cc / 60.7 cu-in
Bore x Stroke:	98 x 66 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.5:1
Induction:	Magneti Marelli electronic injection
Ignition:	Electronic
Starting:	Electric
Max Power:	85 hp / 62 kW @ 7500 rpm
Max Torque:	103 Nm / 75.9 lb-ft @ 6500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Frame:	Double aluminium tube
Front Suspension:	43mm Paoli telescopic forks, 155mm wheel travel
Rear Suspension:	Single shock, hydraulic adjusted. 160mm wheel travel.
Front Brakes:	2x 296mm discs 2 piston calipers
Rear Brakes:	Single 245mm disc 2 piston caliper
Front Tyre:	100/90-19
Rear Tyre:	150/70-17
Wheelbase:	1465 mm / 57.7 in
Seat Height:	810 mm / 32.3 in
Ground Clearance:	159 mm / 6.3 in
Dry-Weight:	190 kg / 419 lbs
Fuel Capacity:	14.5 Litres / 3.8 US gal
